TX-E101 - GE Interlogix Wireless 4-Button Chrome Remote Alarm Keyfob

TX-E101 - GE Interlogix Wireless 4-Button Chrome Remote Alarm Keyfob
TX-E101 - GE Interlogix Wireless 4-Button Chrome Remote Alarm Keyfob
Item# TX-E101

Please Note: The GE Interlogix TX-E101 wireless 4-button chrome remote keyfob has been discontinued without replacement.

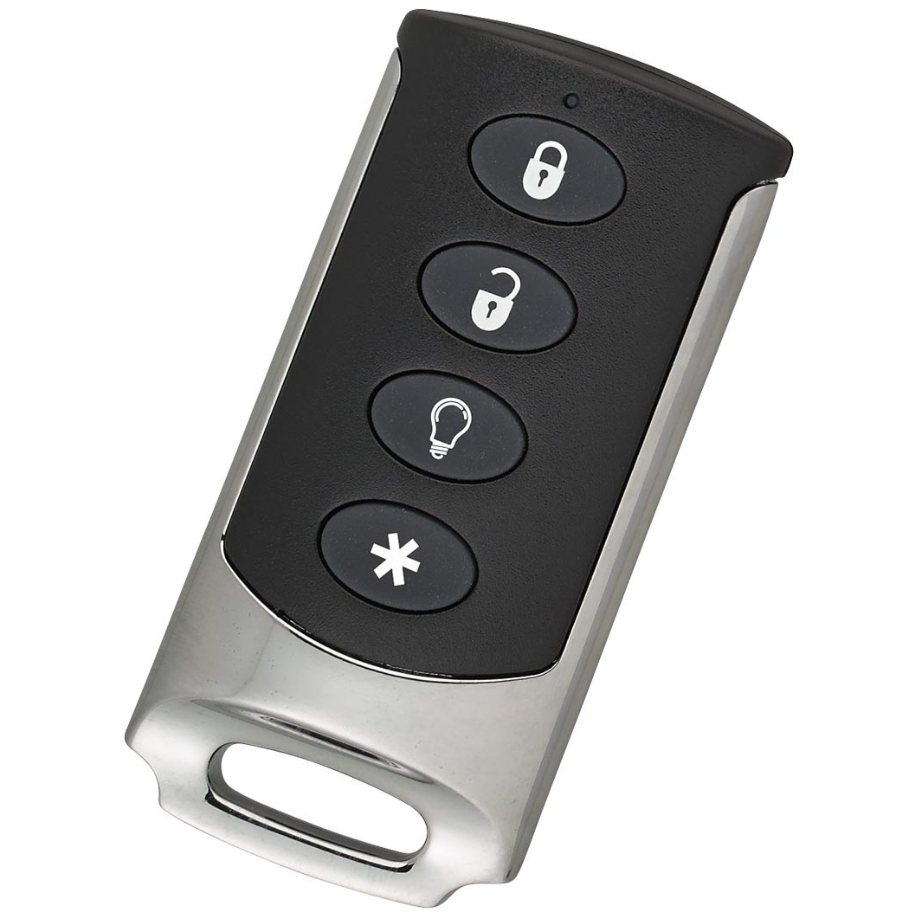

GE Interlogix TX-E101 Product Description:


The GE Interlogix TX-E101 is a 4-button, chrome, wireless keyfob that is used primarily for arming and disarming an GE Interlogix control panel or receiver. The TX-E101 is a compact and durable device which also includes the ability to remotely activate auxiliary panic alarms, turn lights on/off, open a garage door or trigger other system functions.

Product Features:

  • Field proven wireless technology
  • Arm, Disarm and two programmable buttons
  • Compact, robust design
  • Durable silk-screened button labels
  • LED confirmation of wireless signal transmission
  • Replaceable battery with up to 5 years of battery life (based on usage)
  • 2 year warranty

GE Interlogix TX-E101 Product Specifications:


  • Dimensions (WxHxD): 2.5 x 1.25 x 0.5 in. (6.35 x 3.175 x 1.27 cm)
  • Color: Black with chrome trim
  • Compatibility: GE Interlogix Learn-Mode panels and receivers
  • Operating Temperature: 32°-120°F (0°-49°C)
  • Operating Humidity: 5-95% RH non condensing
  • Weight: 1.6 oz.
  • Frequency: 319MHz (Crystal based)
  • Battery: CR2032
  • Battery Life: 5 years, typical
  • Approvals: FCC/IC

GE Interlogix TX-E101 Product Operation:


  • Lock: Depending on your control panel: Press once to arm in Stay mode. Press twice to arm in Away mode. Press three times to activate the latchkey feature.
  • Unlock: Press this button to disarm your system. You do not have to enter your access code when you use this key to disarm the system.
  • Light: For NetworX panels, press this button to arm the system in Stay mode. For Concord, Simon 3 or XT it will turn system controlled lights on or off.
  • Star: The star button function depends on the individual panel programming. Refer to the installation instructions for your panel.
  • Panic or Aux: If the keyfob is programmed using a panic or portable auxiliary group number, pressing the Lock and Unlock buttons simultaneously will activate an audible or silent alarm (depending on group number) and initiate reports to the GeoArm central station.
