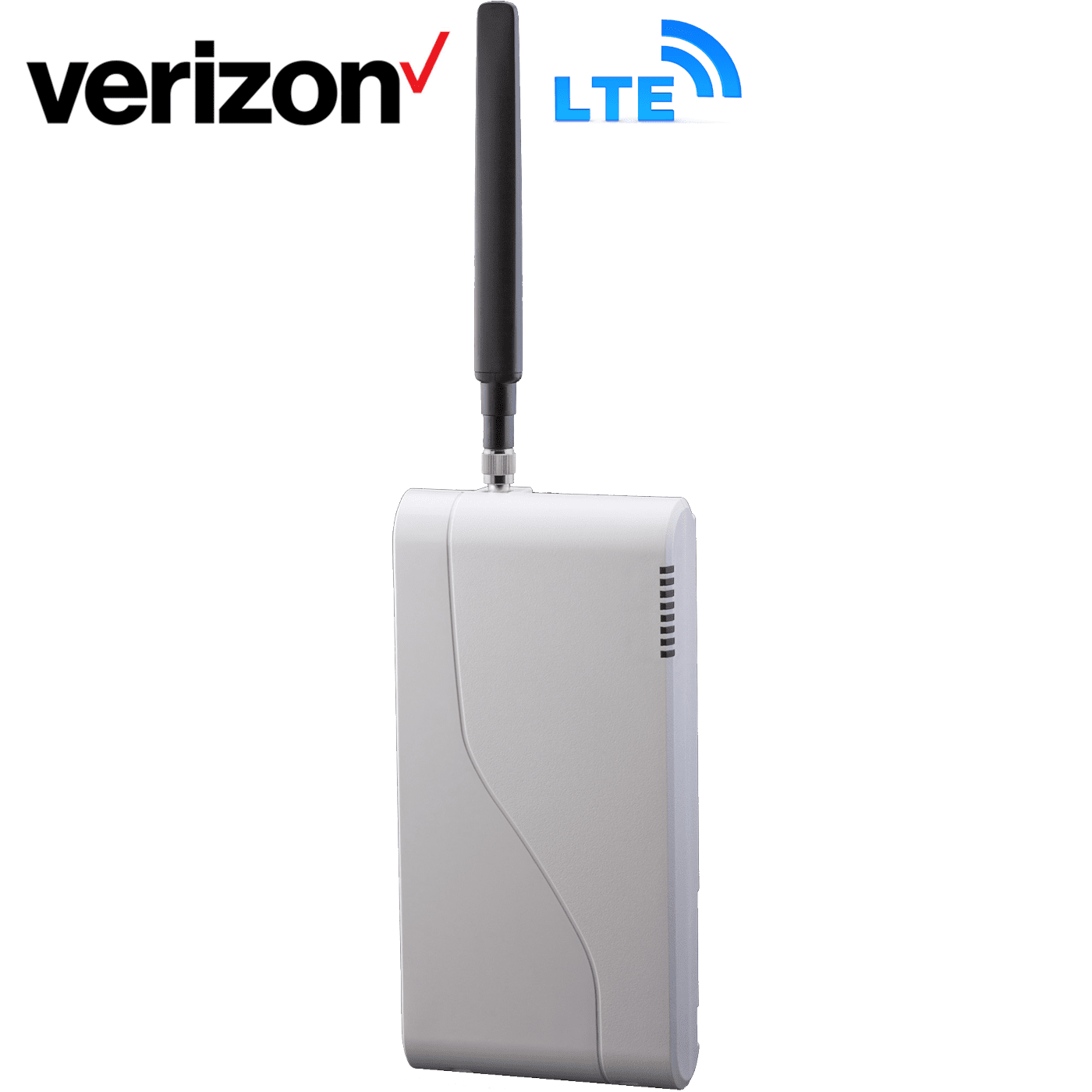

TG-4B LTE-V - Telguard TG4LVB Universal Cellular Primary/Backup Verizon LTE Alarm Communicator (Compatible with Most Panels)
Please Note: The Telguard TG-4B LTE-V universal primary/backup cellular Verizon LTE alarm communicator has been discontinued without replacement.
Telguard TG4LVB Product Description:
The Telguard TG-4B LTE-V is a primary/backup cellular alarm communicator that transmites full-data from most security systems.Telguard model TG-4B LTE-V transmits alarm signals over the nationwide Verizon LTE network if the telephone line or data network has been disrupted, compromised or when there is no wire line service available.
The TG-4B bundle provides a backup plan your customers can rely on. If their landline or data network becomes disrupted, compromised or unavailable, the TG-4B transmits crucial alarm signals from security and fire systems to the GeoArm central station using Verizon LTE cellular networks.
The TG-4B LTE-V, the ideal solution for light commercial, business and residential applications, transmits full data from security and fire systems to the GeoArm central station. Telguard technology allows full data reporting for unlimited point-to-point signal details and maximum transmitting power for superior in-building penetration. THE TG4LVB is easy to install, economical, and UL Listed.
Product Features:
- Certified for use on the Verizon LTE network for long, sunset-free installation.
- Serves as either primary or backup alarm communicator.
- Features HomeControl Flex™ for remote arming and disarming when installed in primary mode.
- Falls back to 3G/4G if an LTE network is not available, for extended network coverage.
- Panel downloading with the Telguard Virtual Modem.
- 128 bit AES alarm signals ensure authentication and security.
- Automatic self-test (daily, weekly or monthly).
- Two programmable supervisory trip outputs.
- Available trip input for reporting trouble conditions independent of the alarm panel.
- Supports virtually all alarm formats (Contact ID, SIA2, and others) using dial capture for universal panel compatibility.
Telguard TG4LVB Product Specifications:
- Transmit Power Consumption: 200 mW in all bands
- Transformer Supplied: 12VAC, 800mA UL listed plug-in
- 12VDC/Battery Consumption: <32mA (Standby), 250mA (Transmission)
- Radio Transceiver LTE Bands: 4 & 17
- Radio Transceiver 3G Bands: 2 & 5
- Radio Transceiver Antenna: 8" dipole with a max gain of 3dBi
- Certifications: FCC part 15, 22, 24, 27 & 68 compliant
- Dimensions: 9.5" H x 4.5" W x 1.75" D
- Shipping Weight: 5 lbs (with transformer)
- Operating Environment: 0°C to +49°C; Up to 85% humidity (non-condensing)
