TG-1 Express LTE-V - Telguard TG1LX Universal Residential Cellular Verizon LTE Alarm Communicator (Compatible with Most Panels)

Please Note: The Telguard TG1LX cellular AT&T LTE alarm communicator has been discontinued and replaced by the TG1LX002 model number.

Description
Specifications
PDF Downloads

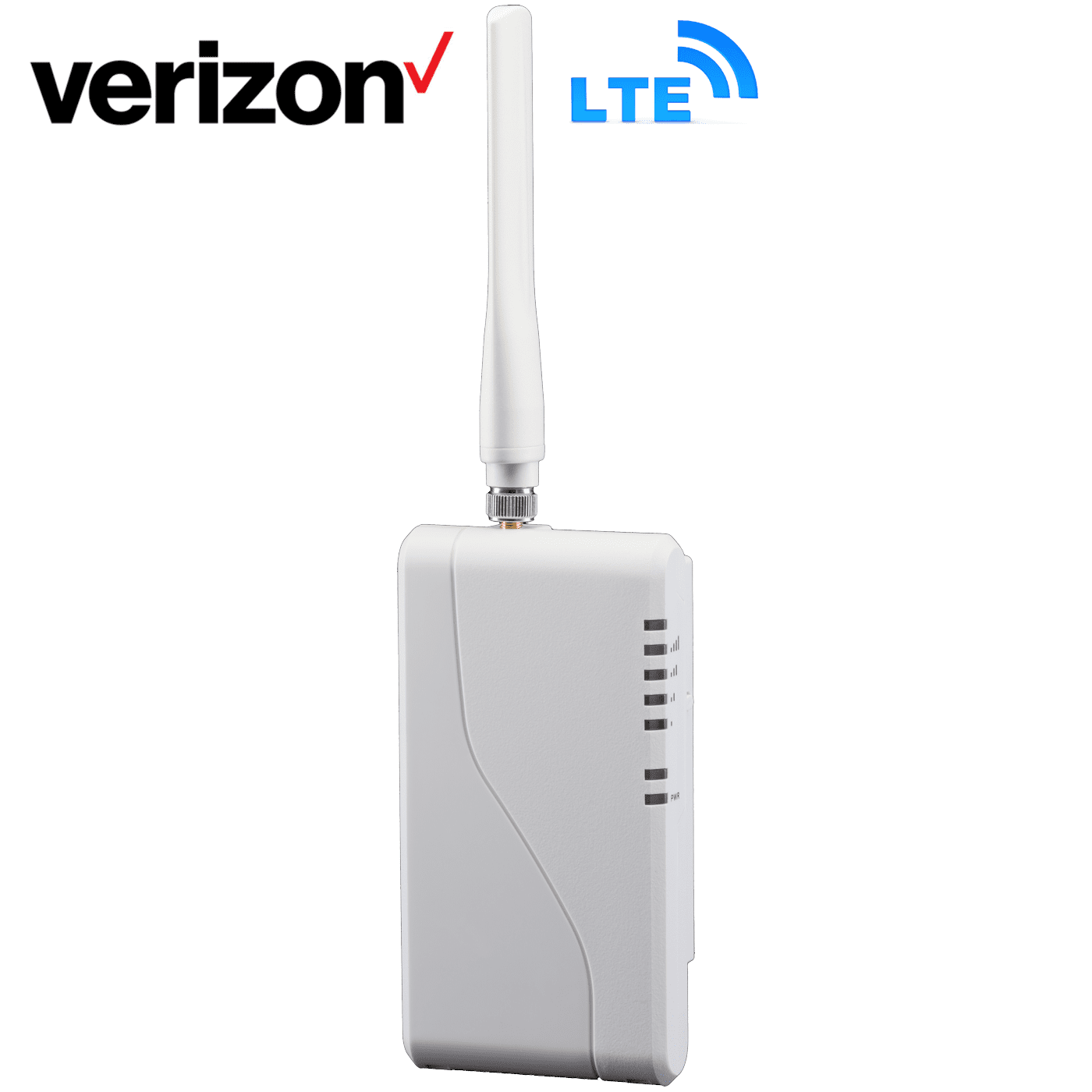

Telguard TG1LX Product Description:

The Telguard TG1LX is a universal cellular Verizon LTE alarm communicator intended for residential security. The TG1LX utilizes power from the panel and converts any existing traditional security system for monitoring services. The TG1LAX communicator is designed to transmit full data from security and fire systems over the Verizon LTE cellular network to the GeoArm central monitoring station.

Today's modern family commonly chooses to use their cell phone or VoIP service instead of paying for a traditional phone line. This growing trend makes what was once the most common form of communication for the security system unavailable in many new installations. When there is no telephone service available, the Telguard model TG-1 Express LTE-V ensures that critical alarm information reaches the GeoArm central station.

By utilizing the panel for power, the TG-1 Express LTE-V eliminates the need for additional AC power or a backup battery. Using the panel for power simplifies installation, system design and load calculations. With HomeControl Flex, end users utilize a mobile app for Android, iPhone and Windows Phones to remotely arm their system with prebuilt automation rules. The free app comes ready to activate with the TG-1 Express LTE-V for all new installations and retrofits.

Additionally, end users have the option to include video capabilities with Arlo Wire-free HD Cameras, enabling remote viewing of eventtriggered clips, images and live video from anywhere, on a smartphone, computer or tablet.

Product Features:

Small, attractive enclosure.
Supports virtually all alarm formats (Contact ID, SIA2, and others) using dial capture for universal panel compatibility.
Certified for use on the Verizon LTE network for long, sunset-free installation.
Supports HomeControl Flex™ for remote arming, disarming and more.
Reduces install time by exclusively using the power and backup battery from the panel.
Power and dial capture over a single cable for greater flexibility.
Falls back to 3G/4G if an LTE network is not available for extended network coverage.
Panel downloading with the Telguard Virtual Modem.
Available trip input for reporting trouble conditions independent of the alarm panel.
Two (2) programmable supervisory trip outputs (STC) relays for reporting problem conditions from the TG-1 Express LTE-A to the panel.
Programmable automatic self-tests (daily, weekly or monthly) confirm the alarm path between Telguard, the cellular network, and the GeoArm central station.
Customer friendly LEDs display operating mode and signal strength. 128 bit AES (Advanced EncryptionStandard) encrypted alarm signals ensure authentication and security.

Telguard TG1LX Product Specifications:

Transmit Power Consumption: 250 mA @ 12V
Nominal Power Consumption: 110 mA @ 12V DC
Radio Transceiver: Antenna with SMA connector
Certifications: FCC part 15 and 27 compliant
Dimensions (without antenna): 5.6" H x 2.9" W x 1.3" D (14.22cm H x 7.37cm W x 3.30cm D)
Shipping Weight: 1.1 lbs (499g)
Operating Environment: 0°C to +50°C; Up to 95% humidity (non-condensing)
