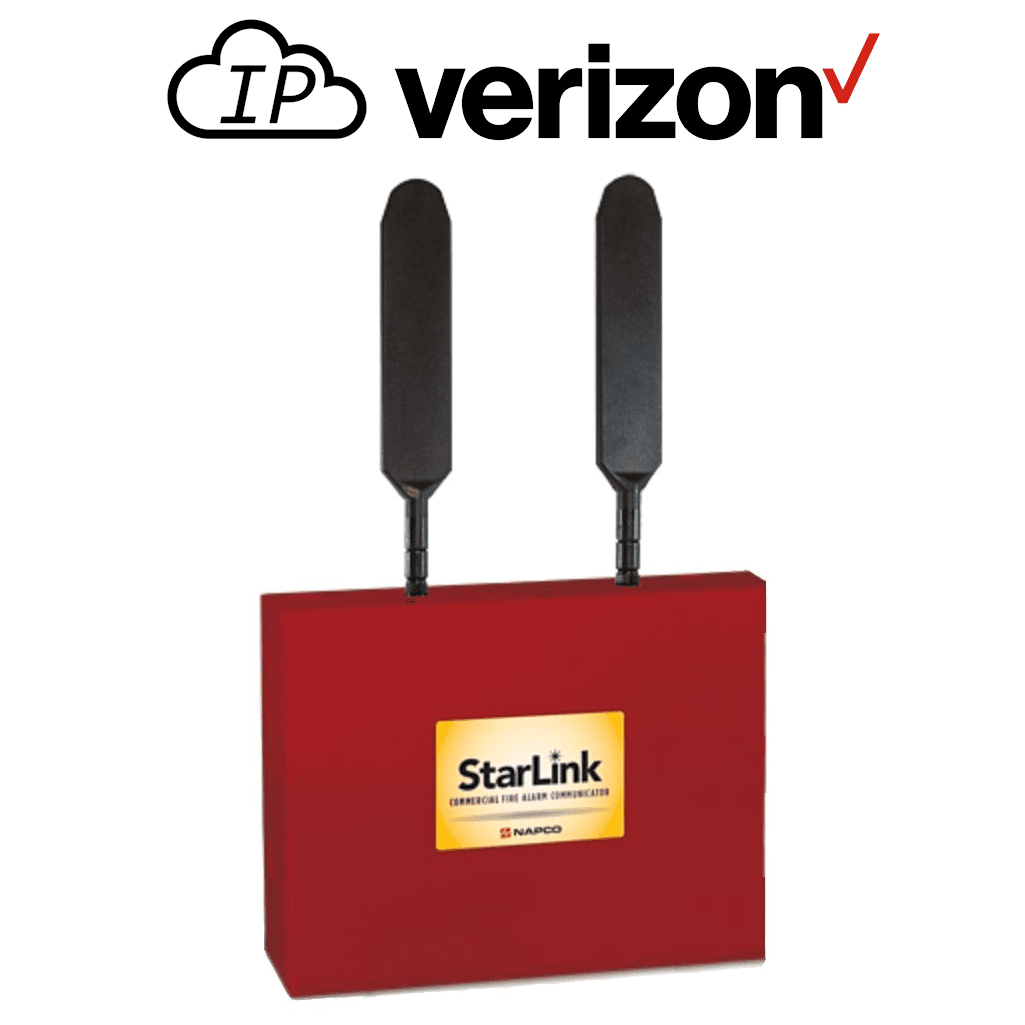

SLE-LTEVI-CFB - Napco StarLink Commercial Fire Dual-Path Internet/Cellular Verizon LTE Mercantile Alarm Communicator in Red-Color Metal Enclosure (Compatible with Most Panels)
Please Note: The Napco StarLink SLE-LTEVI-CFB universal commercial fire cellular Verizon LTE merchantile alarm communicator is a back ordered item.
Napco SLE-LTEVI-CFB Product Description:
The Napco StarLink SLE-LTEVI-CFB is a universal full-event sole and dual-path IP/cellular Verizon LTE commercial fire mercantile alarm communicator that is designed for new or existing fire alarm control panels (FACPs). The SLE-LTEVI-CFB mercantile communicator is compatible with any 12V to 24V brand FACP using Contact ID or 4/2 formats (such as legacy panels).
The Napco StarLink Fire mercantile communicator comes in a durable metal enclosure, with code-compliant supervision and choice of power options, Panel-Powered Technology™ (powered by the panel makes installation a breeze), or direct-connect 120VAC models. Signal Boost circuitry and dual diversity antennae for maximum signal acquisition and null avoidance, receiving signals simultaneously on both antennae.
The SLE-LTEVI-CFB dual-path alarm communicator uniquely includes 4 programmable EOLR zone inputs; 2 Form C Relay outputs (no extra supervision modules to buy or install), plus 2 Telephone style jacks for easy FACP-connection. And, the SLE-LTEVI-CFB is self-supervised on 4 wires.
The StarLink Fire provides full data reporting, in sole and dual path, to any central station of your choice, without requiring any special equipment on premises. Ultra-affordable plans are available from GeoArm to meet various codes and requirements, with supervisory check-ins from 200 seconds, to 5 minutes; and/or from 1 to 6 hours. The units are very easily activated, plans and options are selected, and 24/7 account management is provided all through www.napcocomnet.com.
Product Features:
- Universal full event sole and dual-path cellular and/or IP commercial fire alarm reporting from any panel brand (virtually anywhere nationwide)
- Code-compliant, replaces 2 POTs lines per FACP saves thousands of dollars per year over the leased landlines
- Supports 12V-24V control panels and FACPs that communicate using Contact ID and 4/2 (such as on legacy panels), as primary or backup
- Full data Reporting to any Central Station nationwide, via Verizon® LTE Network
- Communicate critical life and safety alarm reports on LTE (Long Term Evolution) 10+ year life, cyber-protected multi-billion dollar cellular network, for maximum life safety and liability protection
- Patented Signal Boost™ and Dual Diversity Antennae for maximum signal acquisition and null avoidance, receiving signals simultaneously on both antennae
- Easiest installation, powered by panel, NO extra power supply, NO extra conduit (Excludes Direct AC-Powered "-PS" models, with transformer option)
- Over-the-Air (OTA) Upgradeable Communicator Firmware. Remote ability for critical/mandatory updates, without a truck-roll
- Preactivated to ensure communications to save on installation time
- UL and NFPA 72 Fire Code-Compliant
- Flexible Performance and Reporting Options
- Panel-Powered Technology™,(powered directly by alarm panel) or direct-connect 120VAC models.
- Full High-Speed Napco Panel Uploading/Downloading
- Backed by Napco 3-Year Full Factory Warranty
Napco SLE-LTEVI-CFB Product Specifications:
- Dimensions (H x W x D): 9.63" x 11.75" x 3.38" in
- Cellular Network: Verizon LTE
- Ethernet: Yes
- Onboard: 2 TelCo jacks for EZ FACP Connect; 4 Programmable EOLR zone inputs; 2 Form C Relay outputs (avoids reqt for supervision module)
- Encosure: Metal Housing
- Electrical Input Ratings: Panel-Powered Tech
- Input Voltage: 10-25VDC
- Input Current: 162mA to 100mA standby; 300mA peak during transmissions
- Inputs: IN1, IN2, IN3, IN4, IN5
- Input Ratings: IN1: 9-25VDC Max input current 2mA IN2,IN3,IN4,IN5: 9-25VDC Max input current 1.2mA
- Outputs: OUT1, OUT2, PGM3
- Output Ratings: OUT1,OUT2:Dry Contact, Form C Relay, 30V AC/DC, 500mA Max PGM3: Open Collector Outputs Max 3V when active, Max 25V when active. Max current 24mA@ 25V
- Operating Temperature: 32°F to 120°F (0°C to 49°C)
- Humidity: Maximum 93% (non-condensing)
Napco SLE-LTEVI-CFB Product Documents:
• Data Sheet for Napco StarLink SLE-LTEVI-CFB Universal Commercial Fire Dual-Path IP/Cellular Verizon LTE Mercantile Alarm Communicator
• Installation/Operation Guide for Napco StarLink SLE-LTEVI-CFB Universal Commercial Fire Dual-Path IP/Cellular Verizon LTE Mercantile Alarm Communicator
• Wiring Diagram for Napco StarLink SLE-LTEVI-CFB Universal Commercial Fire Dual-Path IP/Cellular Verizon LTE Mercantile Alarm Communicator
Napco SLE-LTEVI-CFB Product Compatibility:
- Any Fire Alarm Control Panel (FACP) using Contact ID or 4/2
