RFK5516 - DSC LED Hardwired Alarm Keypad with 433 MHz Transceiver (for DSC PowerSeries Control Panels)

Please Note: The DSC RFK5516 hardwired alarm keypad with 433 MHz transceiver has been discontinued without replacement.

Description
Specifications
PDF Documents
Includes
Compatibility

DSC RFK5516 Product Description:

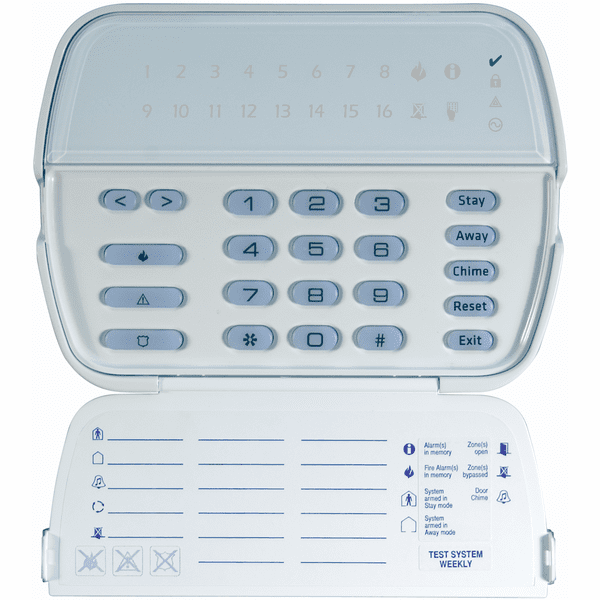

The DSC RFK5516 is a LED hardwired 16-zone alarm keypad with built-in 32-zone wireless receiver that is compatible with the DSC PowerSeries control panels. The RFK5508 keypad is designed with a clean, unobtrusive look that homeowners welcome and installers will appreciate for their easy programming and installation.

The DSC RFK5516 keypad an input/output terminal that can be programmed to operate as a zone input, programmable output or as a low temperature sensor. The keypads also include adjustable backlit keys that address low-light situations. The RFK5516 full-message keypad supports eight languages, global partition status and full, 32-character programmable phrases.

To simplify usage, the RFK5516 keypad features five programmable keys for easy one-button activation of system functions. The default tasks assigned to the five function keys are stay arming, away arming, door chime, smoke detector reset and quick exit. With the quick exit function there's no need to disarm and re-arm the system every time an occupant leaves the house or lets the dog out, for example. DSC offers a large portfolio of reliable 433 MHz wireless devices and detectors to help make your toughest installations simpler. The integrated DSC approach has resulted in an unparalleled spectrum of unique interchangeable component alternatives. They can be configured for every circumstance, providing safe, reliable protection.

You should mount the RFK5508 keypad where it is accessible to designated points of entry and exit. Select a dry and secure location. The RFK5516 keypad can be used on security systems with up to 64 zones.

Product Features:

Modern, slim-line landscape keypad
Enlarged keypad buttons
1 keypad zone input/PGM output
Connects to control panel via 4-wire Keybus
5 programmable function keys
Input/Output terminal can be programmed to operate as a zone input, programmable output or as a low temperature sensor
3 one-touch emergency keys
Adjustable backlight and keypad buzzer
Wire channel
Dual wall-mount and front cover tamper
Easy-to-install mounting hinge
Surface or single-gang box mount
AC status ICON
Multiple door chime per zone
16 hardwired zones
Supports 32 wireless zones and 16 wireless keys
Backed by DSC's 1-year limited manufacturer's warranty
