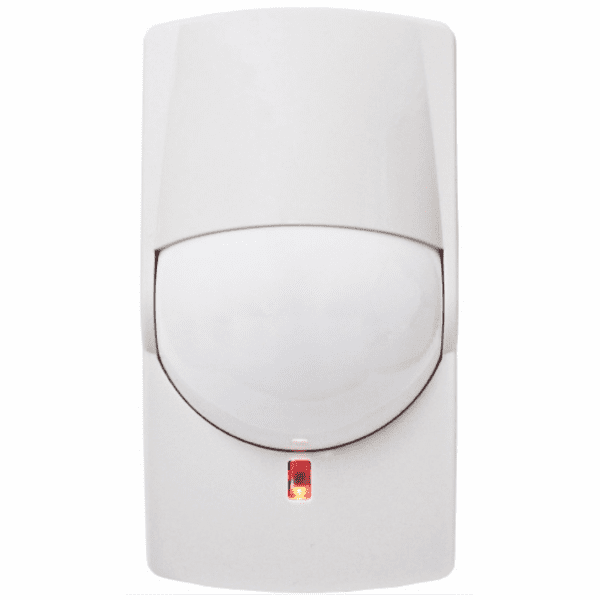

RE661 - Alula Wireless Indoor Commercial Motion Detector (for Connect+ Panel)
Please Note: The Alula RE661 wireless indoor commercial motion detector has been discontinued without replacement.
Alula RE661 Product Description:
The Alula RE661 is a wireless Connect+ encrypted, 85 degree, commercial-rated indoor motion detector designed for the Alula Connect+ control panel. With a range of up to 40 feet, the RE661 is a commercial battery powered wall mount sensor that protects indoor areas and goes into alarm when motion is sensed.
To enroll the RE659, begin by entering the serial number into the security panel. Alternatively, the sensor can be enrolled by placing the panel into enrollment mode, and then pulling the battery tab or tampering the device.
To install the RE653, begin by screwing two #5 screws through the unit's mounting knockouts. Use 2 of the 3 mounting knockouts in the center of the unit's back to mount on a flat wall, or use 2 of the 4 corner knockouts to mount the unit in the corner of a room. Mount the sensor 5 to 8 feet (1.5m-2.4m) high. Screw the #8 screw through the wall tamper knockout into the wall, ensuring that the wall tamper screw is attached to something solid. Tighten all screws until snug. Enroll the sensor using the instructions above. Close the cover and conduct a walk test. After testing, take the unit out of walk test mode and close the cover again. Finally, finish threading the white #4 screw until it is snug.
Product Features:
- 85° detection range with 78 distinct detection zones
- Range up to 40 feet
- Selectable pulse count 2 or 4
- Designed for commercial applications
- 5 year warranty
Alula RE661 Product Specifications:
- Dimensions: 4.53 x 2.44 x 1.97 inches (115 x 62 x 50 mm)
- Weight with Battery: 3.9oz (110.6 g)
- Mounting Fasteners: (2) #5 screws, (1) #8 screw, (1) square nut installed in unit, (1) #4 screw (All provided)
- Operating Temperature: 32 to 120°F (0 to 49°C)
- Maximum Humidity: 85% non-condensing relative humidity
- Frequency: 433.92 MHz
- Replacement Battery: One Panasonic CR123A Lithium Battery
- Nominal Battery Life: 3 years (720 trips per day), 7 years (240 trips per day)
- Battery Voltage: 3.0 VDC (Nominal), 2.7 VDC (Low)
- Current Draw: 21 mA (Maximum), 4.7 µA (Standby), 30 mA (Max in walk test)
- Mounting Height: 2.5 to 4 feet (0.8 to 1.2m)
- Detection Range: Up to 40 Feet (12 m)
- Detectable Speed: 1 to 5 feet per second (0.3 to 1.5 metres per second)
- Transmitted Indications: Motion, Cover Tamper, Wall Tamper, Low Battery, Supervision
- Certification: UL639, ULC-S306-03, ETL, FCC, IC
Alula RE661 Product Mounting Tips:
- Avoid direct sunlight
- Avoid facing directly to AC or heating vents
- Avoid vapor or high humidity
- Avoid curtains, screens, etc. from blocking detection
- Do not install outdoors
Alula RE661 Product Pro Tips:
- Save battery life by taking unit out of walk test mode after completing walk test. There is no 2 minute delay when in walk test mode. Leaving in walk test mode will severely decrease battery life.
- Sudden light changes will cause the sensor to trip. Ensure that the detector is not placed near windows.
- Sudden temperature changes will cause the sensor to trip. Ensure the motion detector is not placed near heating and cooling vents.
- High humidity environments can cause condensation of the detection lens. Ensure the motion detector is not installed in these kinds of environments.
- Protective film should be removed from the lens after installation.
