RE301 - Alula Wireless Door/Window Alarm Contact (for DSC)

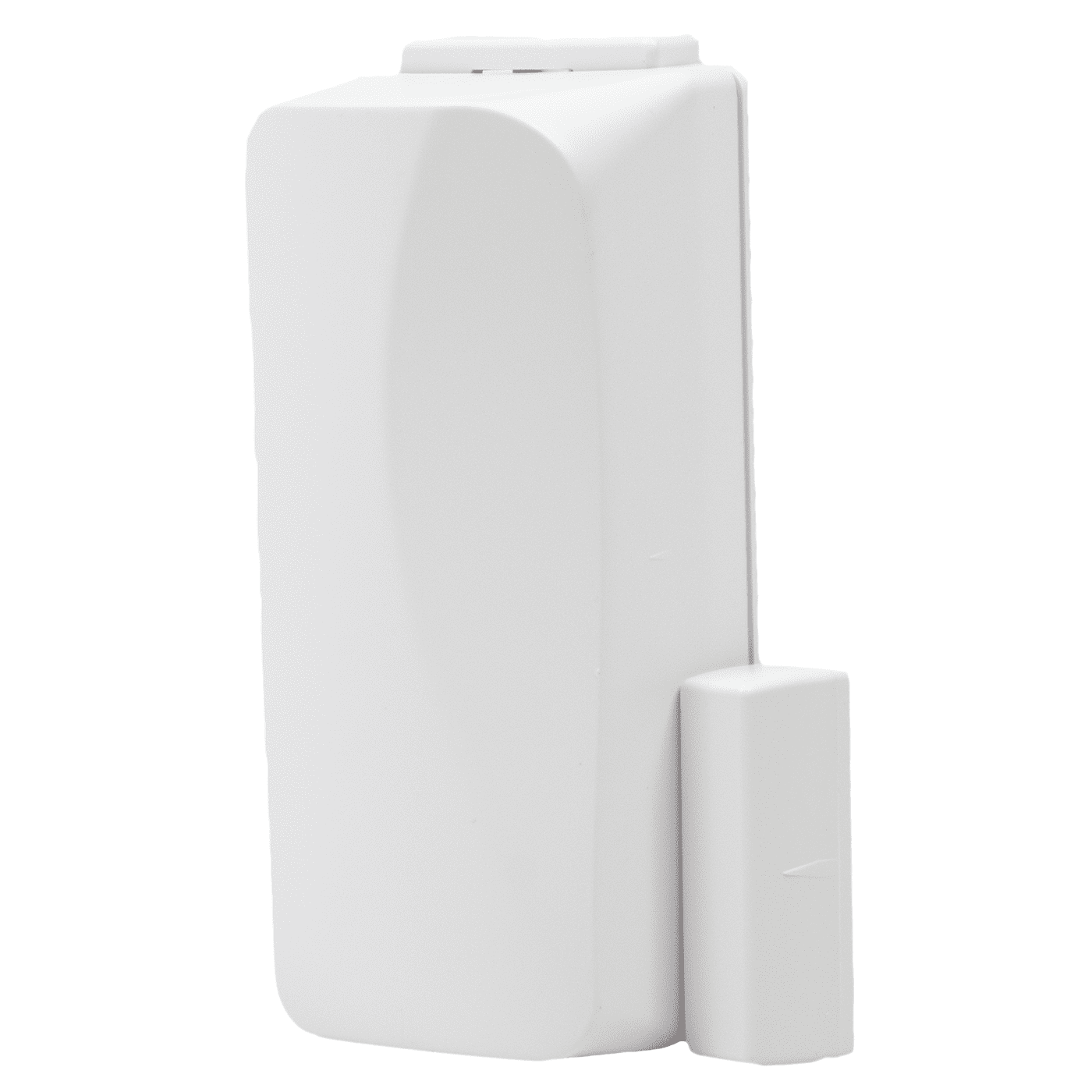

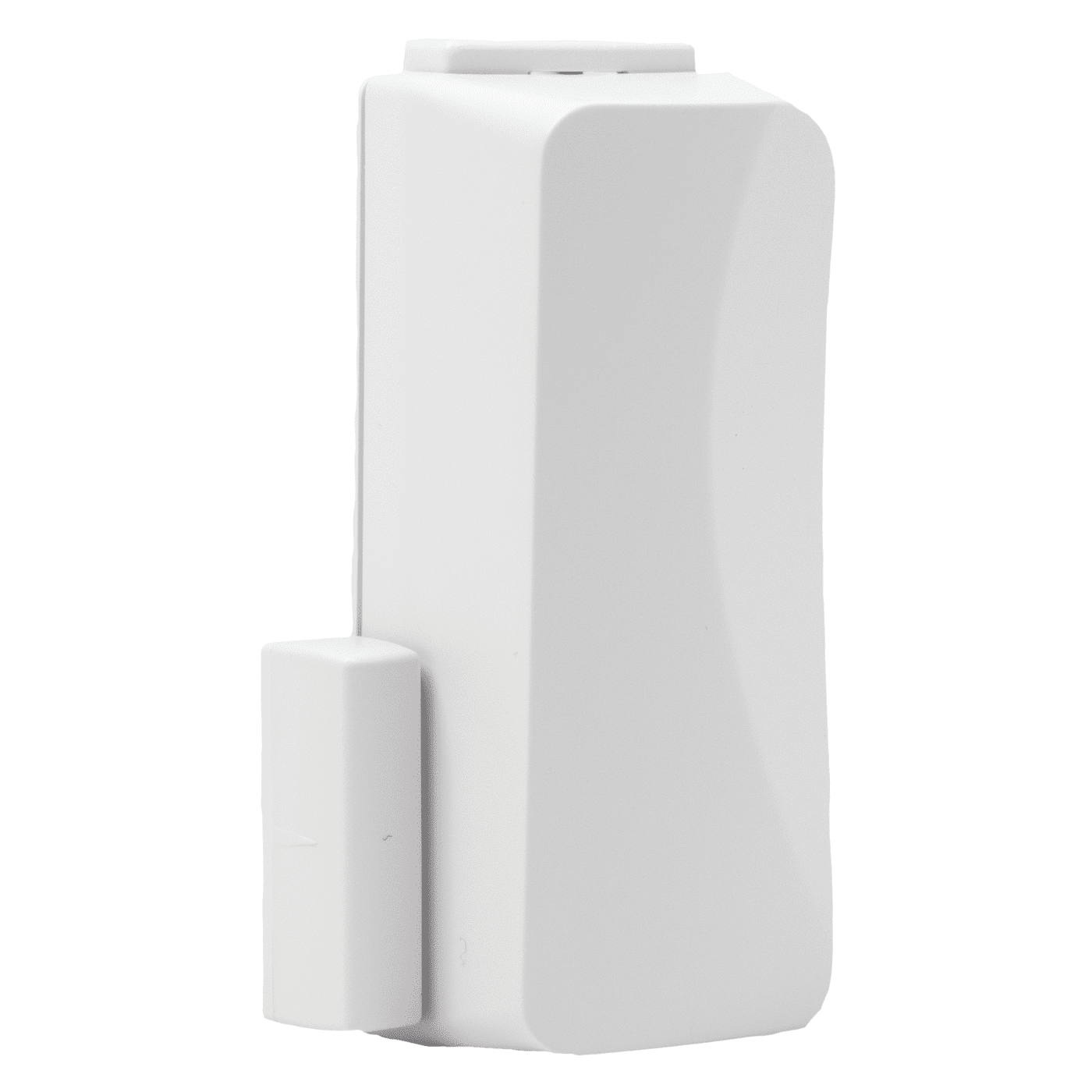

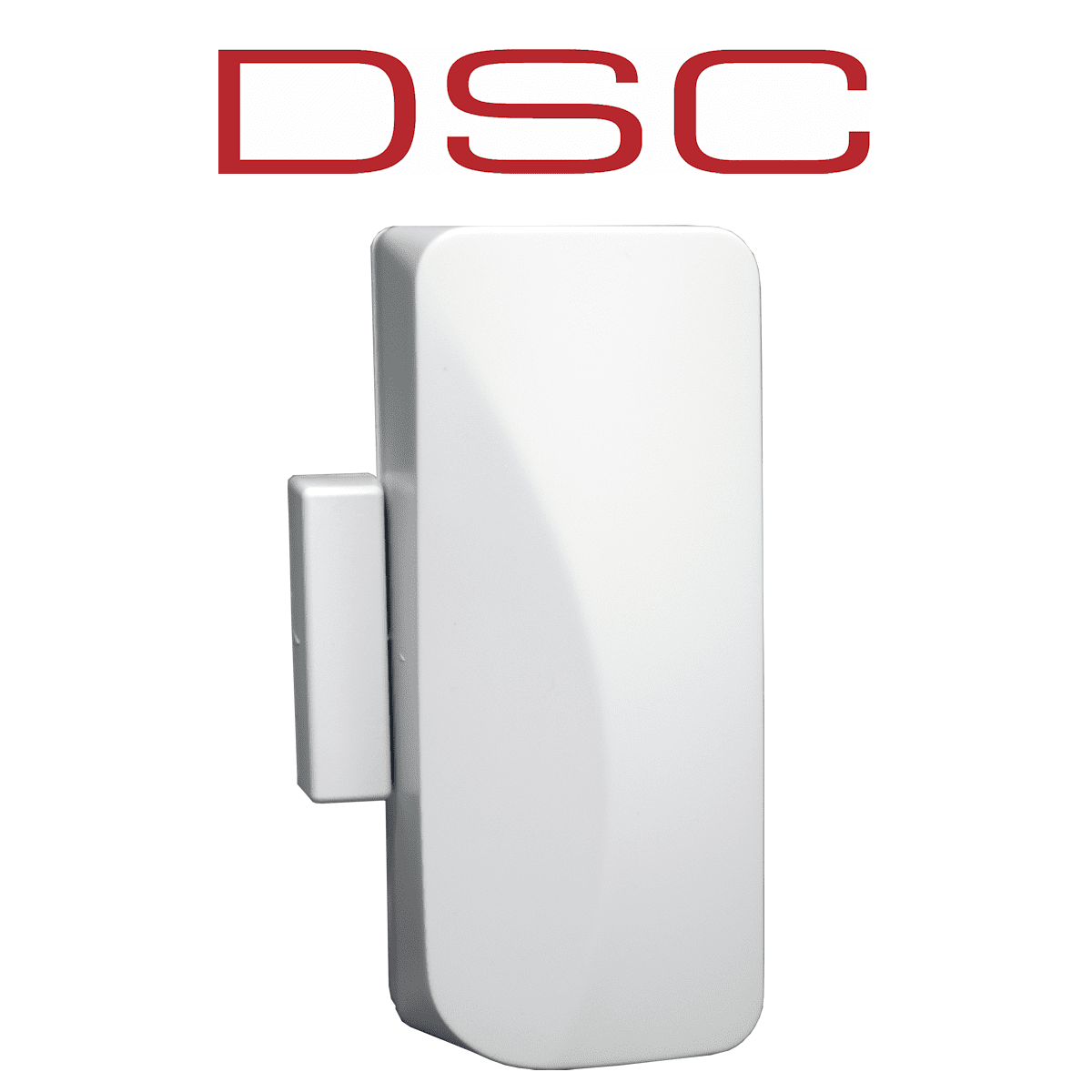

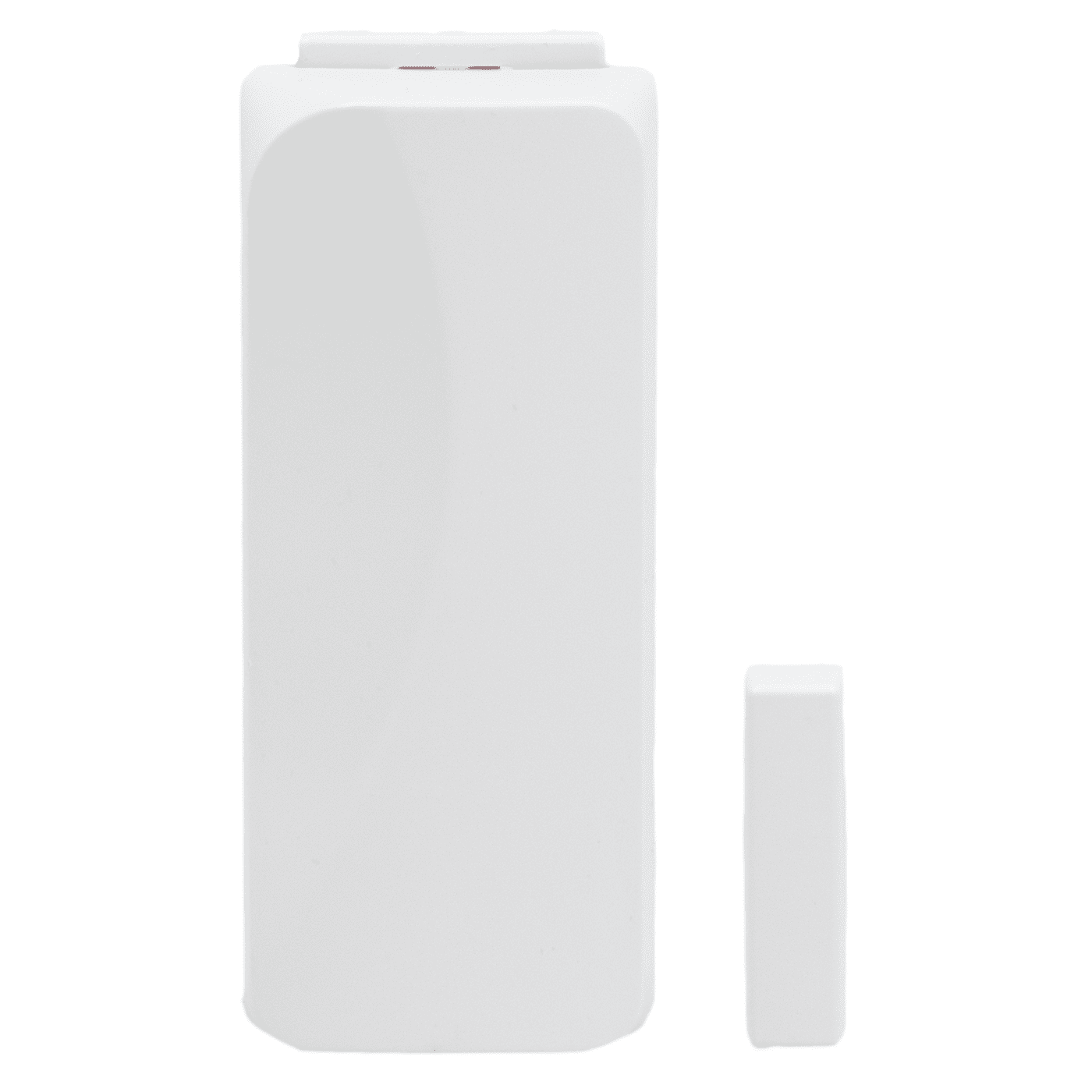

Alula RE301 Product Description:
The Alula RE301 is a full-featured door and window security transmitter with industry-leading wireless range and battery life that is compatible with DSC security systems. It is typically used to sense opening and closing of doors and windows, but can secure just about anything using its two external contact zones. It will alarm when the magnet is pulled away from the sensor or when an external contact is opened.
To enroll the RE301, begin by placing the DSC panel into wireless enrollment mode and then sending an enrollment signal from the sensor. The enrollment process for the reed switch is executed by removing the battery tab and then tripping the tamper to enroll reed switch and External 1. And, the enrollment process for the external contact is performed by holding down the tamper while installing the battery.

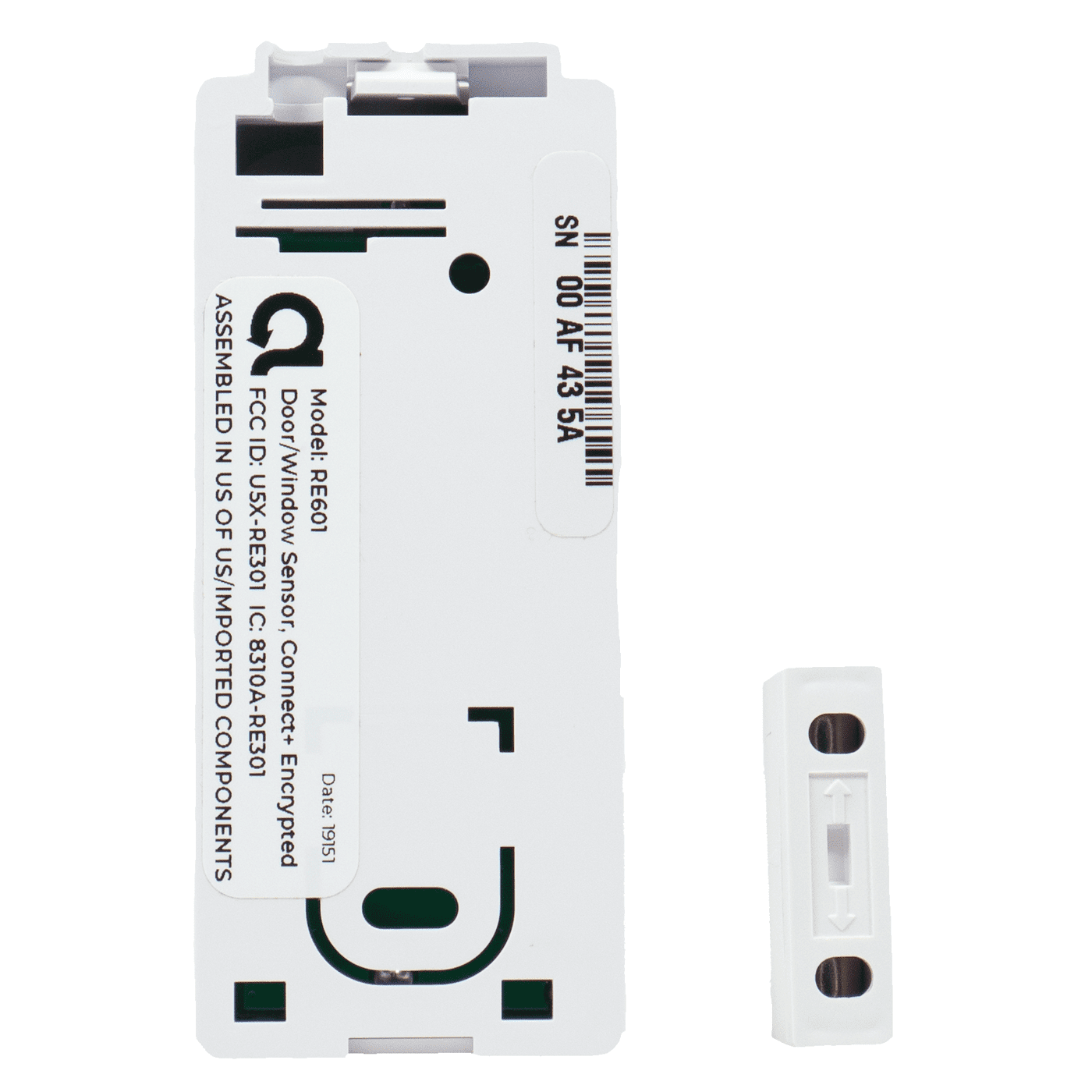

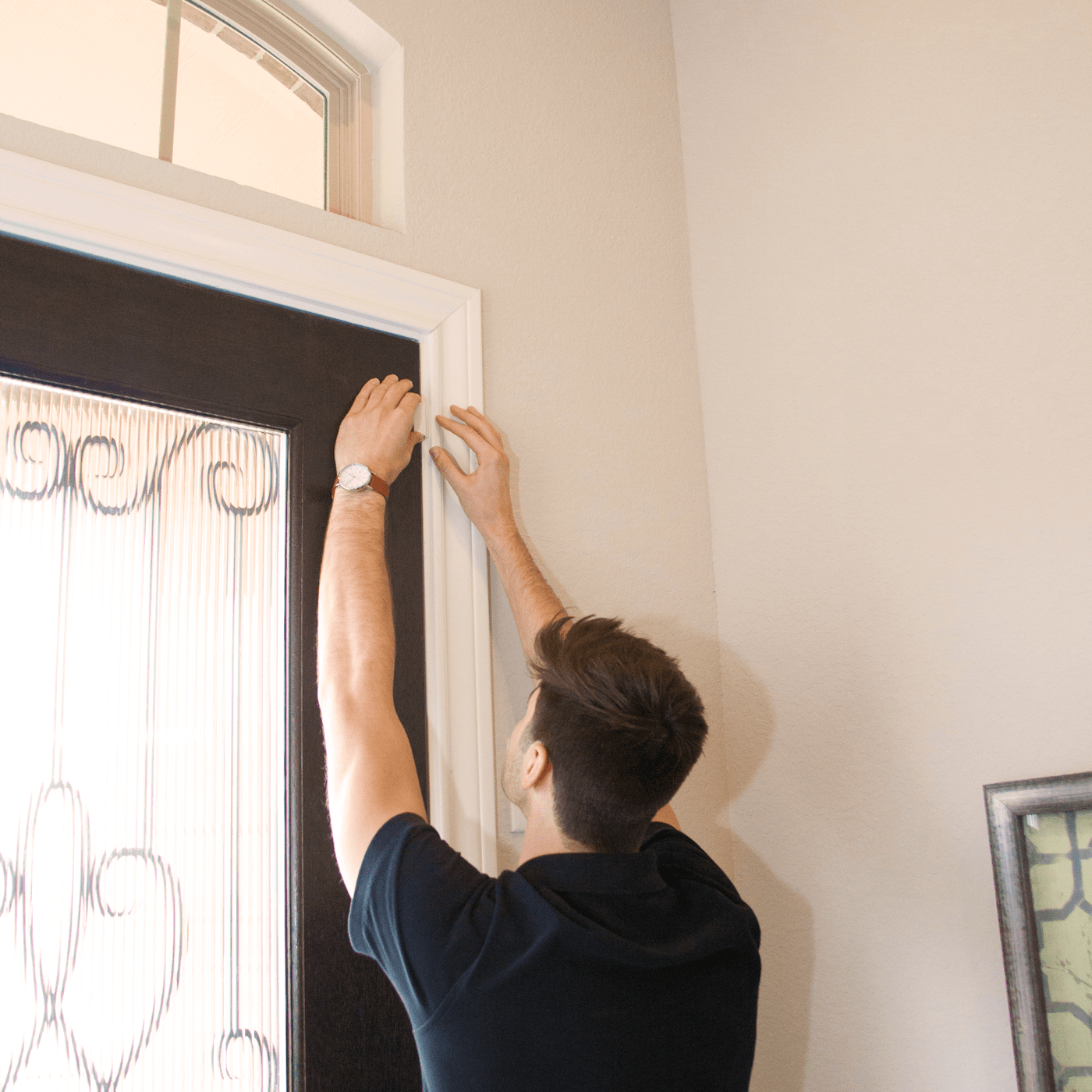

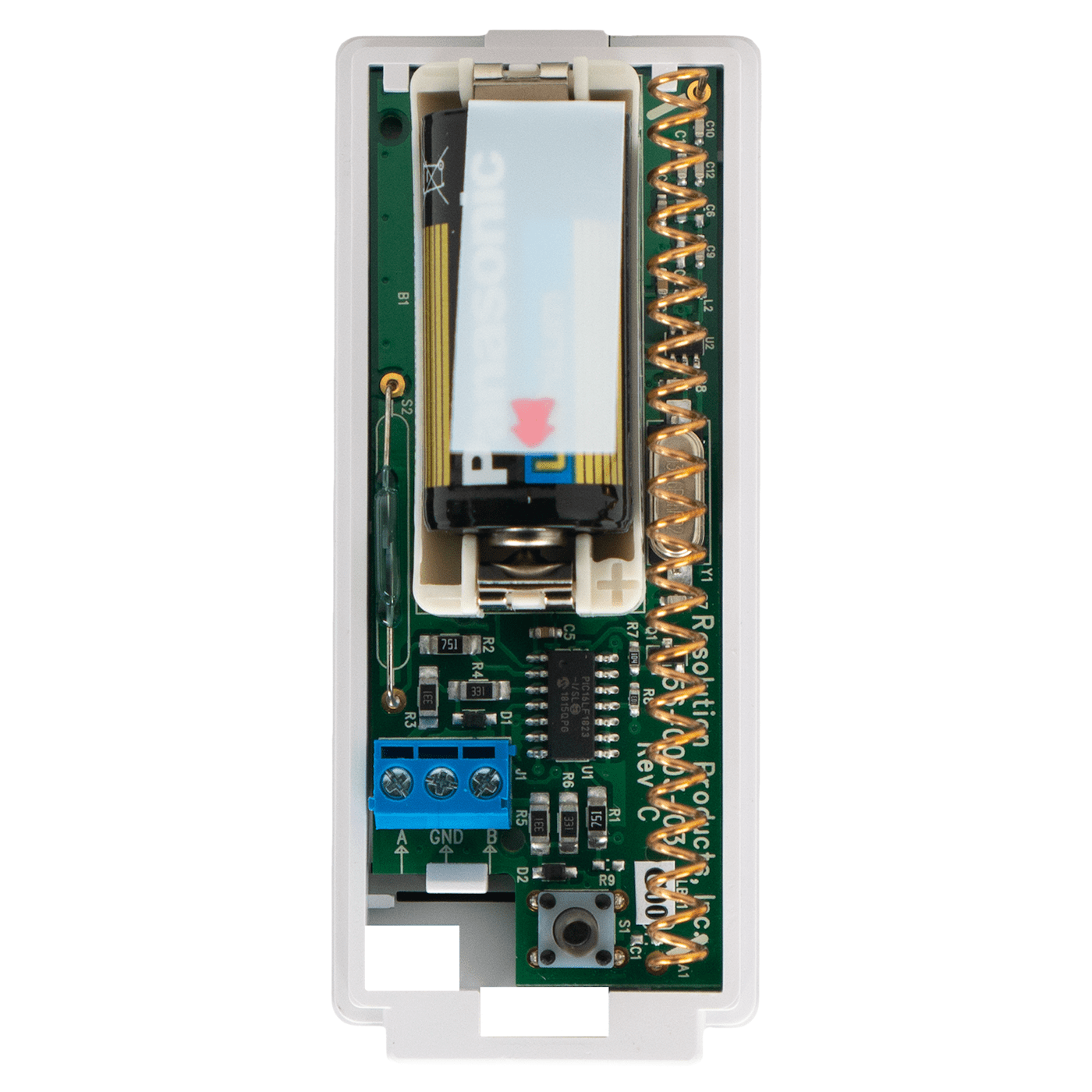

To install the RE301, begin by mounting the sensor and magnet on a door or window using the mounting screw locations. Make sure to align the alignment marks on the sensor and magnet when mounting. Additionally, the sensor can be used with up to two external contacts. Keep in mind the following for use as an external contact. Use normally-closed contacts because the door window sensor will transmit an alarm when it sees an external contact open. Next, do not use end-of-line resistors. Lastly, wire the contact wires to one or both outside terminals, using the center terminal as common. External 1 takes the place of the reed switch if installed. External 2 is a different zone with a different ID and to enroll it, simply hold down the tamper while inserting battery.
Product Features:
- Industry-leading wireless range and battery life
- Compatible with DSC security systems
- One door window zone and two external contact zones
- For sensing things that open or separate
- Magnet and Internal reed switch operation
- 2 supplemental hardwire zones
- Cover tamper
- Strong, reliable RF signal
- 10-15 year battery life on CR123A battery
- Low Battery indication
- 5 year warranty
