RE122 - Alula Wireless NanoMax Door/Window Alarm Contact (for GE Interlogix)

RE122 - Alula Wireless NanoMax Door/Window Alarm Contact (for GE Interlogix)
RE122 - Alula Wireless NanoMax Door/Window Alarm Contact (for GE Interlogix)
Item# RE122
List Price: $45.54
Your Price: $30.36
Availability: In Stock
QTY:
Shipping3-5 Business Days
Free 3-5 day ground shipping within the continental United States on orders over $200.

In stock items are shipped ground 1-3 business days from which the date the order was placed. A tracking number will be sent to the email address provided on checkout.

Read the full shipping policy
Returns30-Day Return Window
This item can be returned in its original condition within 30 days of receipt, less a 25% restocking fee of the total invoice price.

Read the full return policy
PaymentSecure Transaction
We work hard to protect your security and privacy. Our payment security system encrypts your information during transmission. We don't share your credit card details. We don't sell your information to others, including affiliates!

Read the full order processing policy

Alula RE122 Product Description:


The Alula RE122 is a full-featured Nanomax door and window security transmitter with industry-leading wireless range and battery life that is compatible with GE® and Interlogix® security systems. The RE122 contact is typically used to sense opening and closings of doors and windows, but can secure just about anything using its Strip & Stick external contact holes. It will alarm when the magnet is pulled away from the NanoMax or when the external contact is opened.

Enroll the RE122 contact by placing the GE/Interlogix panel into wireless enrollment mode and then sending an enrollment signal from NanoMax. Remove the battery tab, which can be done without removing the cover, or touch the magnet to the sensor 5 times within 5 seconds, or remove the cover to trip tamper.

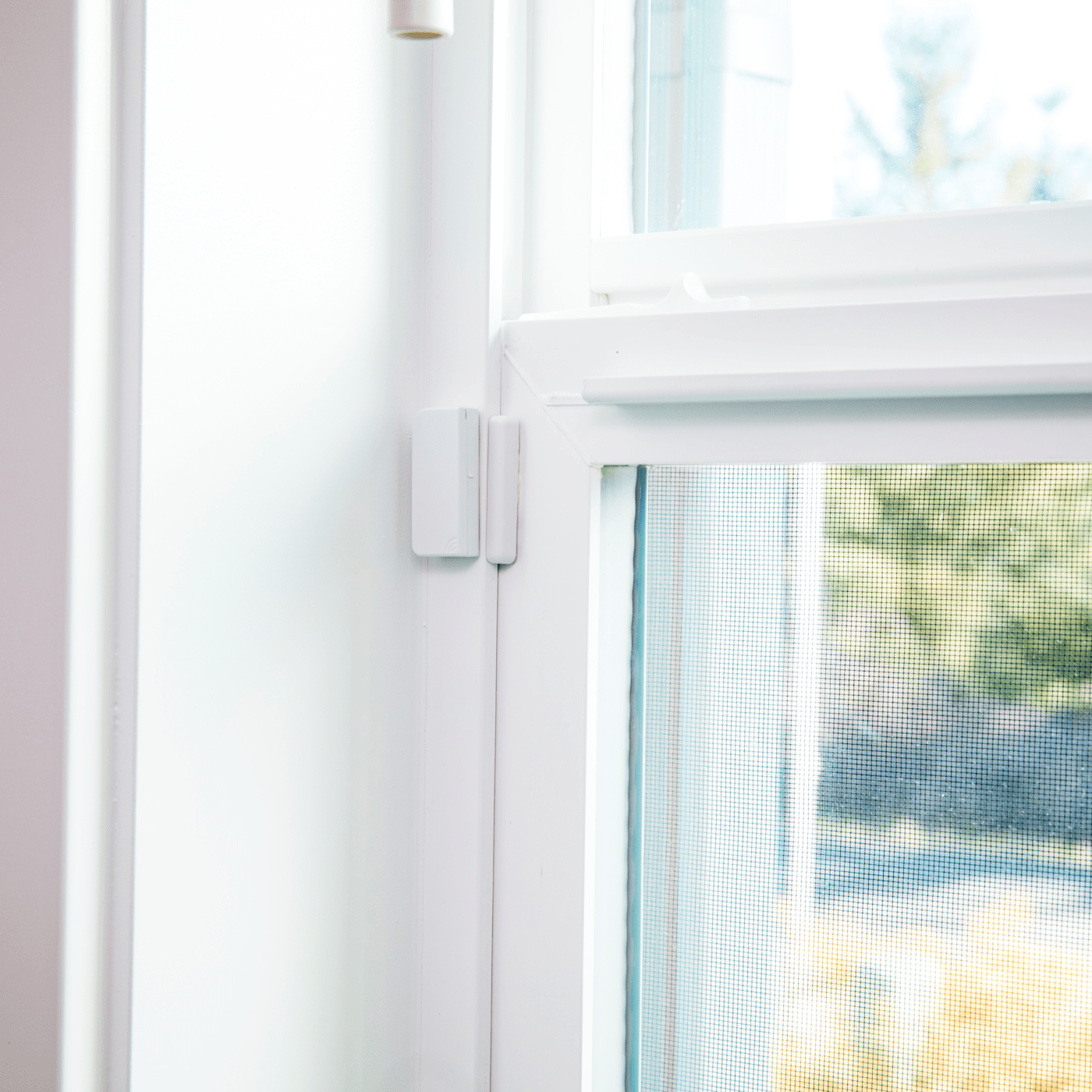

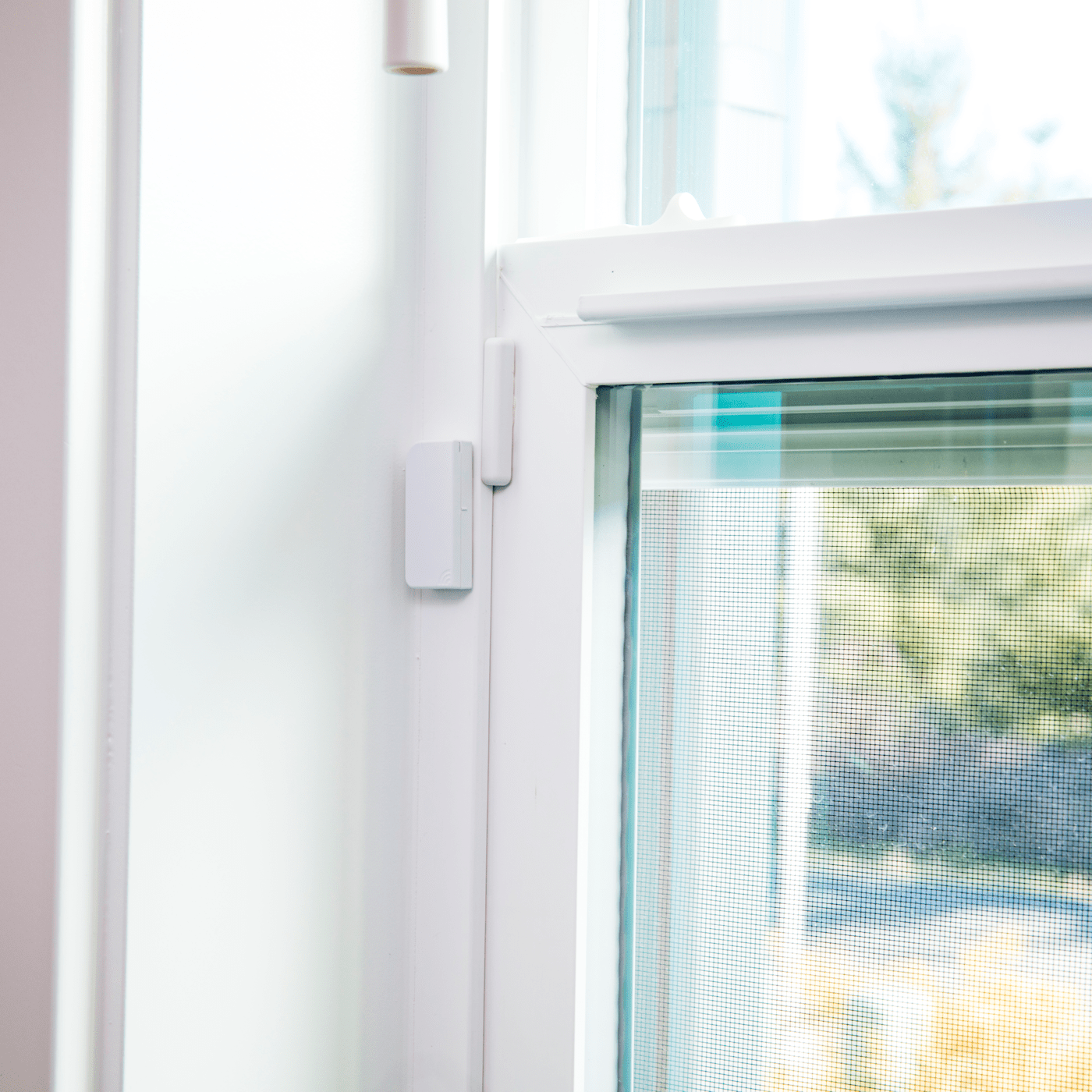

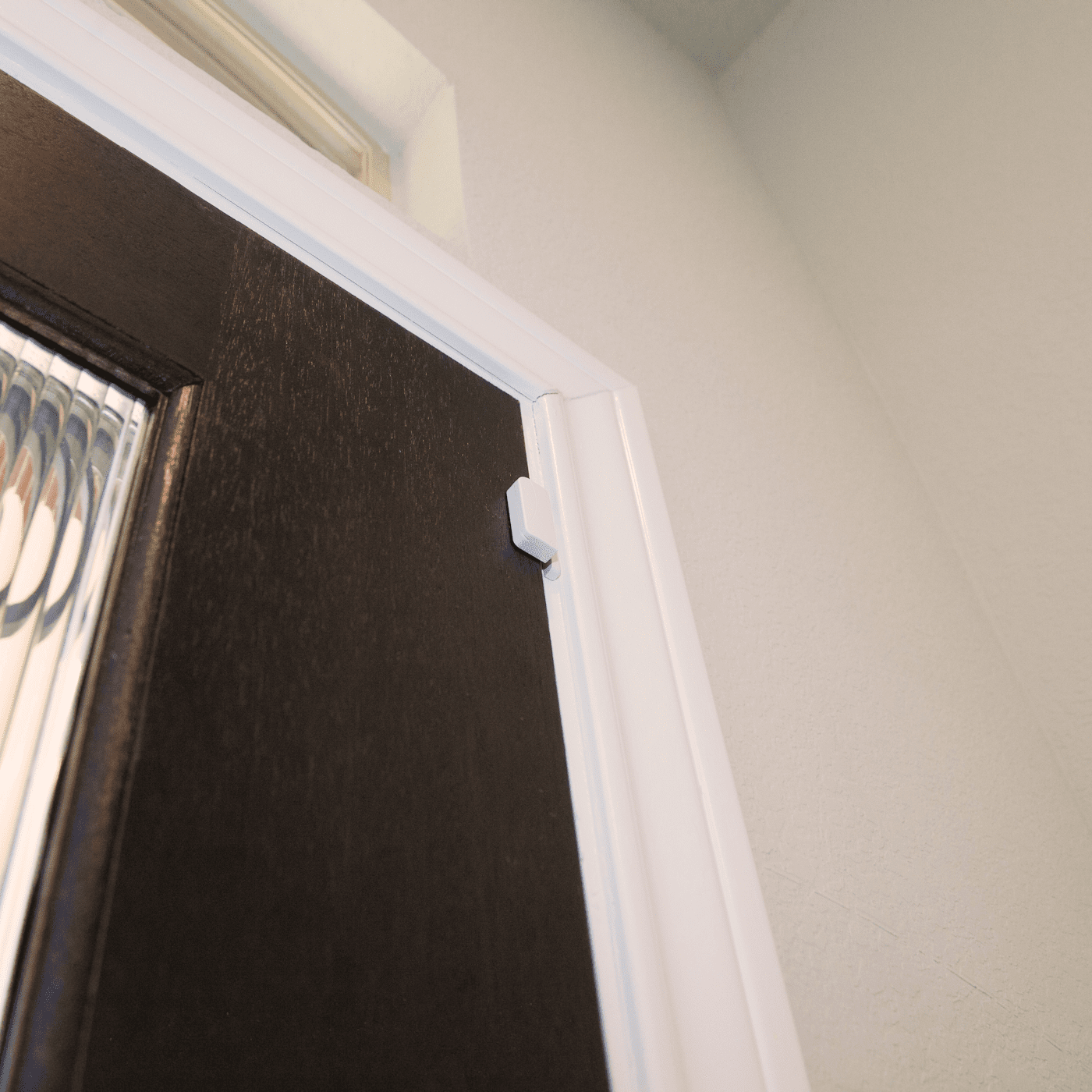

Install the RE122 contact by removing the adhesive paper and adhering the NanoMax and magnet on a door or window. Make sure to align the alignment marks on the NanoMax and magnet when mounting. Alternatively, NanoMax can be used with an external contact instead of the reed switch. 3M™ VHB™ Tape works great if the surface is properly prepared and firm pressure is applied for over 10 seconds. Wireless performance is optimized when mounted near the top of the door in a vertical orientation.

Product Features:

  • Quick peel and press mounting
  • Compatible with GE/Interlogix security systems
  • Small profile for a near invisible look
  • Most flexible magnet positioning in the industry
  • Strip & Stick external contact holes
  • 5 year warranty


Take Note: The MetalMax NanoMax Mounts (RE033-16) can be used for better performance on metal and narrow mounting situations.

Alula RE122 External Contact:


Installation Notes:

  • If you are using the external contact then you cannot use the reed switch.
  • Use a normally-closed contact because NanoMax will transmit an alarm when it sees the external contact open.
  • Do not use end-of-line resistors

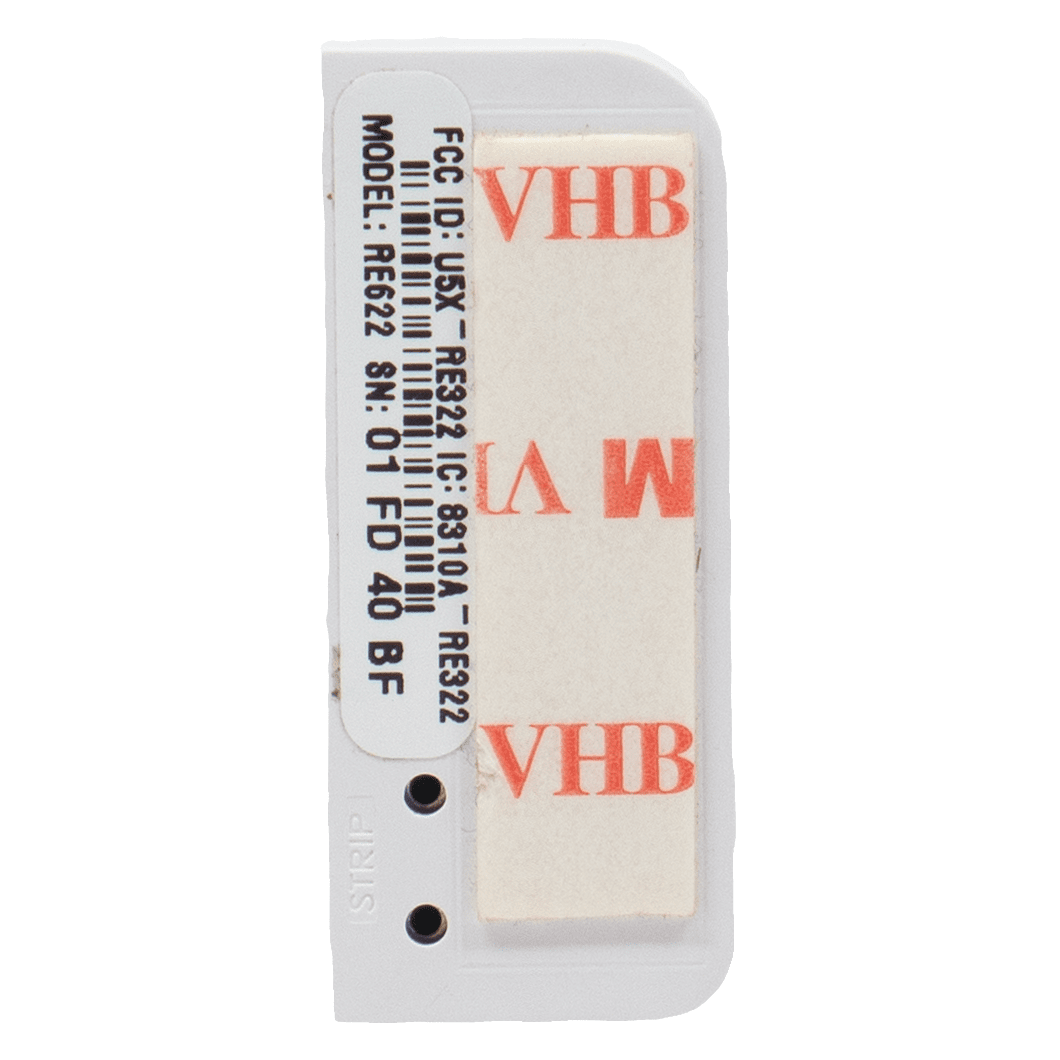

  • Connect the contact to NanoMax by inserting the contact's wires into the two Strip & Stick holes on the back of NanoMax
  • Additional wiring information can be found by searching alula.net for "external contact wiring".

Alula RE122 Product Specifications:


Physical:

  • Housing Dimensions - 1.80 x 0.77 x 0.39 inches (4.6 x 2.0 x 1.0 cm)
  • Weight with Battery - 0.53 ounces (15 grams)
  • Mounting Fastener - 3M VHB Tape

Physical:

  • Operating Temperature - 32 to 120°F (0 to 49°C)
  • Maximum Humidity - 85% non-condensing relative humidity

Sensor Specifications:

  • Frequency - 319.5 MHz (GE and Interlogix Panels)
  • Replacement Battery - One Panasonic® CR1632
  • Nominal Battery Life - 6 years
  • Battery Voltage - 3.0 VDC (Nominal), 2.62 VDC (Low)
  • Current Draw - 20 mA (Maximum), 0.5 uA (Quiescent)
  • Transmitted Indications - Cover Tamper, Low Battery, Supervision
  • Maximum Wire Length for External Contact - 7.5 feet

Certifications:

  • Listing Agencies - FCC, IC
