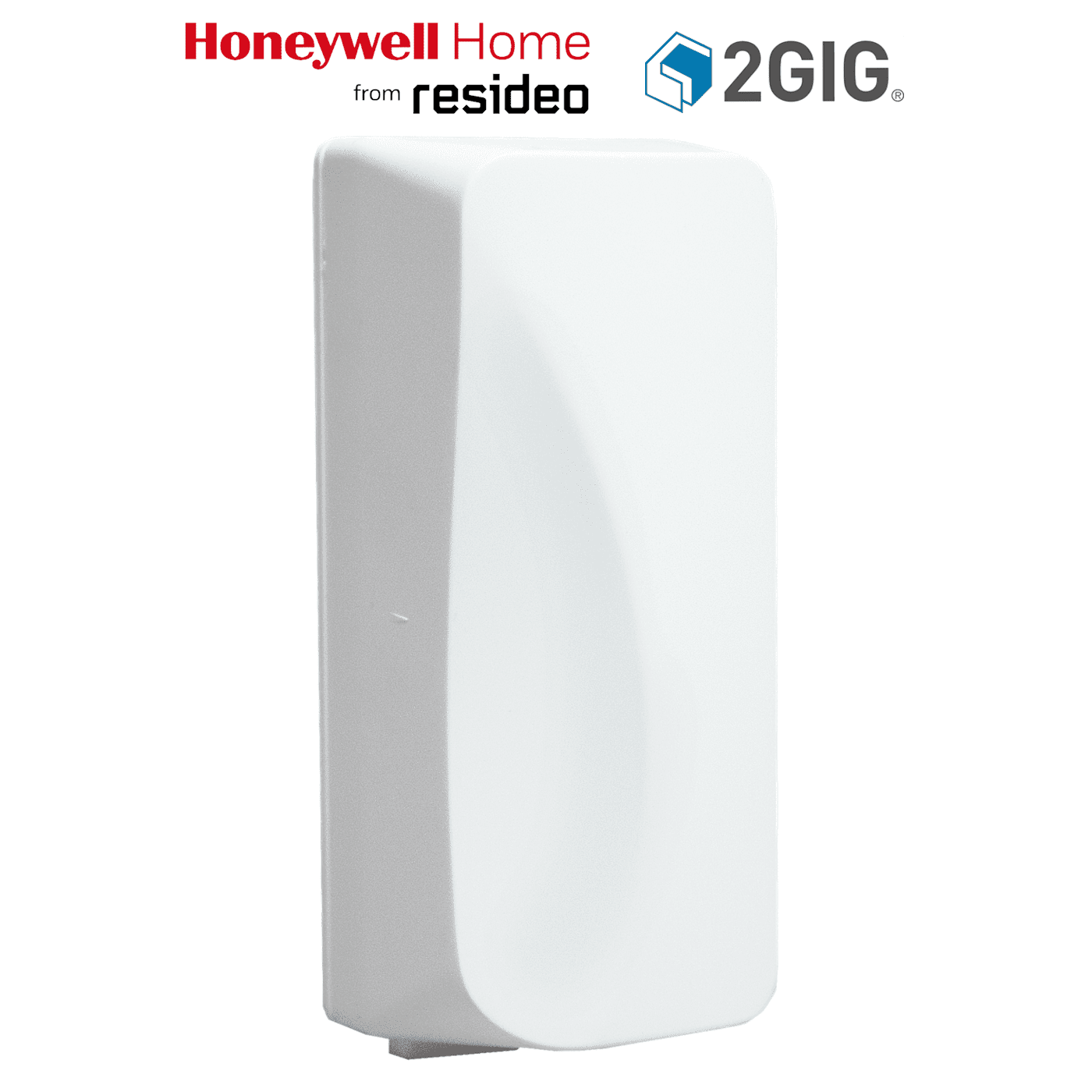

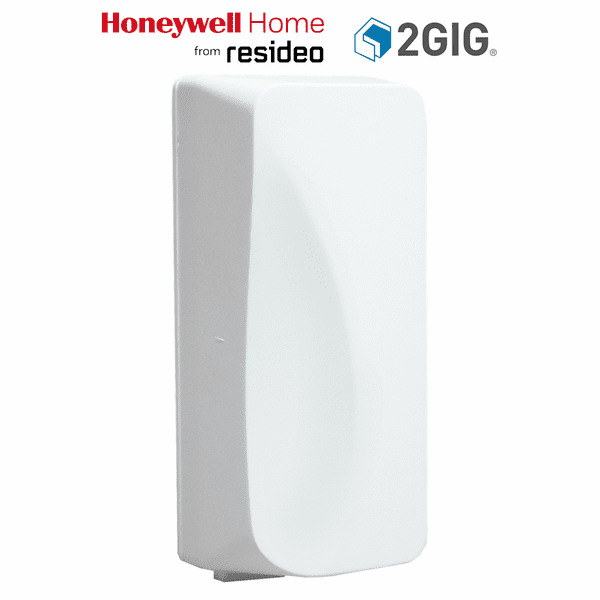

Alula RE206M Product Description:


The Alula RE206M is a 345 MHz (Honeywell Home and 2GIG compatible) wireless tilt sensor with a high accuracy MEMS component. The RE206M tilt sensor monitors the lifting or tilting of anything that moves. It is typically used to secure hatches, overhead roll-up doors and even moveable assets.

The RE206M sends an alarm when tilted more than 45 degrees from the mounting position. If the sensor rotates further than 135 degrees, it is likely to remain in a non-alarm state. For best results, the sensor should rotate within 90 degrees to ensure an alarm state occurs.

Install by mounting the sensor to the inside of a door or window using the mounting screw locations. For garage door installations, the sensor should be mounted to the top panel of the overhead door. This ensures that the sensor closes only when the door is fully closed, and is best for RF range.

The cover of the sensor has a tamper that will alarm when opened, and sends a supervisory signal every hour. To enroll the sensor, all you have to do is place the panel in enrollment mode and tamper the device.

Product Features:

  • Triggers at approximately 45 degrees tilt
  • Monitors any lifting or tilting door, or equipment movement
  • Mount vertically in non-alarm position
  • Strong, reliable RF signal
  • 10-15 year battery life on CR123A battery
  • Low Battery indication
  • Alarm for anything that tilts
  • Useful for hatches, roll-up doors and even moveable assets
  • Cover tamper
  • 5 year warranty

Alula RE206M Product Specifications:


  • Dimensions: 3.25 x 1.40 x 1.05 inches (8.3 x 3.6 x 2.7 cm)
  • Weight (with Battery): 1.90 ounces (54 grams)
  • Mounting Fastener: #4 or #6 screws (not provided)
  • Cover Securing Screw (optional, not provided): Pan Head, #1 x .25in, A/AB Thread Forming (sheet metal) screw, McMaster 90190A051
  • Operating Temperature: 32 to 120°F (0 to 49°C)
  • Maximum Humidity: 85% non-condensing relative humidity
  • Frequency: 345 MHz
  • Replacement Battery: One Panasonic® CR123A
  • Nominal Battery Life: 10 to 15 years
  • Battery Voltage: 3.0 VDC (Nominal), 2.2 VDC (Low)
  • Current Draw: 20 mA (Maximum), 0.6 uA (Quiescent)
  • Transmitted Indications: Cover Tamper, Low Battery, Supervision
  • Certification: FCC, IC

Alula RE206M Product Compatibility:


  • 2GIG
  • Honeywell Home
  • Resideo
