QW8200-840 - Qolsys IQ WiFi Mesh Wi-Fi Router Controller (to Connect Cameras and Touchscreens)

Please Note: The Qolsys QW8200-840 Wi-Fi mesh router has been discontinued and replaced by the IQWF6 model number.

Description
Specifications
Documents
Compatible

Qolsys QW8200-840 Product Description:

The Qolsys QW8200-840 IQ WiFi is a mesh router system that covers every corner of every room up to 130 feet away with seamlesss WiFi. The QW8200-840 router is used to connect Qolsys-compatible WiFi devices such as Alarm.com security cameras, Alarm.com video doorbells and the Qolsys touchscreen keypad inside a home or business to the Qolsys IQ Panel 2 Plus security system.

Product Features:

WiFi mesh network prioritizes ethernet backhaul (wired connection) then shared wireless backhaul (if not wired connection is available)

Automatic Handoff and Self Healing

Easy Installation

Expand current Wi-Fi network or create a parallel network

Web interface or IQ Panel configurable

WiFi version 5

WPS Button - Physical button on the side of the device

Guest Network - 2.4GHz/5GHz

Great Coverage - Up to 1,500 square feet per point

WPA2 Security Encryption

DHCP - Server/Client

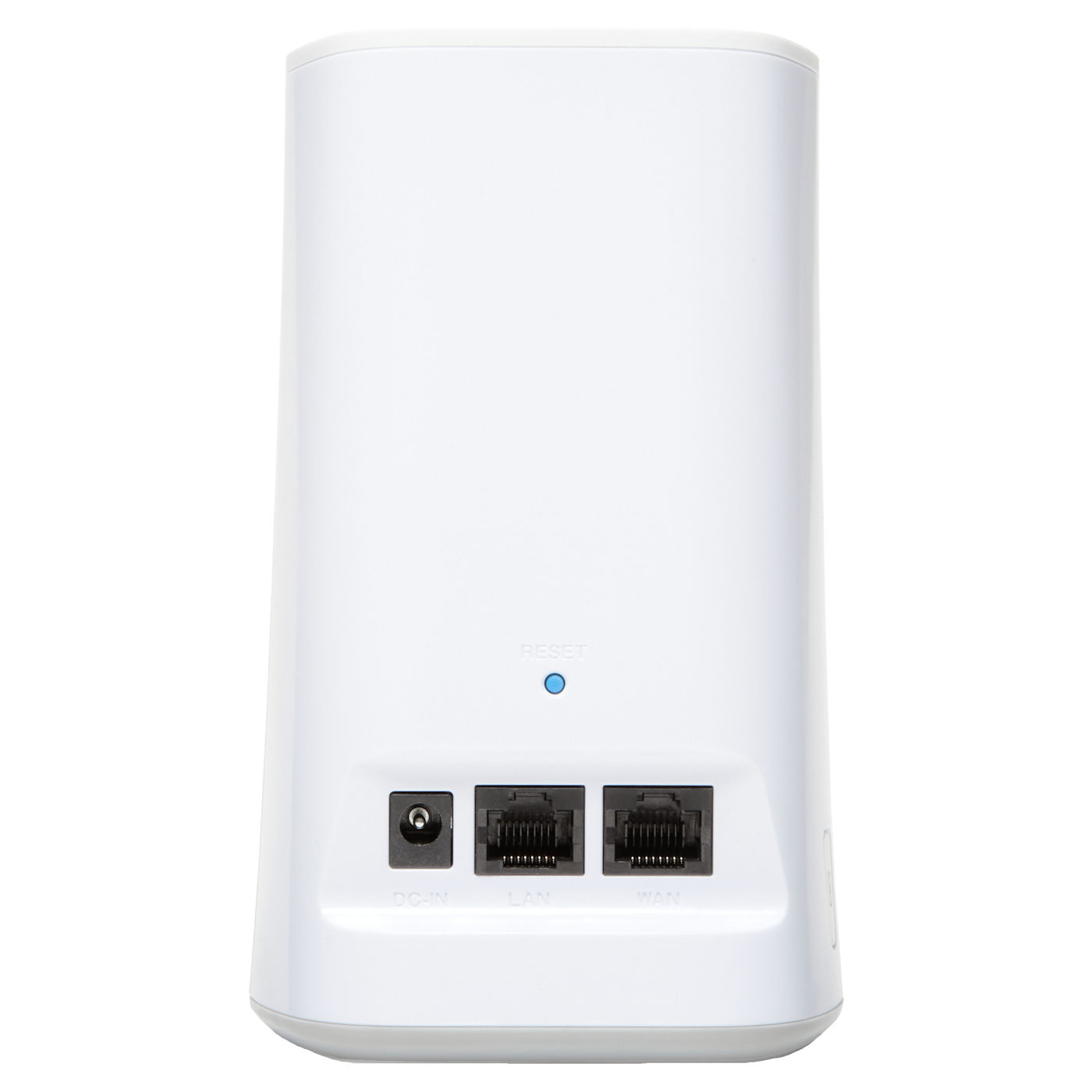

Ethernet - 1x LAN / 1x WAN Gigabit Ethernet Ports

Dual Band (2.4 GHz & 5 GHz)

Assign devices to a specific node

Add up to 8 nodes (1 controller & 7 agents)

Qolsys QW8200-840 Product Specifications:

Dimensions: 150mm x 89 mm x 57.2 mm
Weight: 172g
Usage: For Indoor use only
Compliance: FCC
Process and Memory: SSoC: MT7621DA (MIPS1004Kc dual-core 880MHz, SPI NOR Flash 64MB)
Memory: 128MB DDR3 embedded
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Relative Humidity: 10 to 90% RH (non-condensing)
Operating Distance: Up to 130 ft
Frequency Type: Wireless Band Dual IEEE 802.11 b/g/n 2.4GHz, IEEE 802.11 a/n/ac 5GHz
Wired Type: LAN and WAN Gigabit Ethernet Ports
LED Indicator: 2 color LED (Green and Red)
Antennas: 4 Internal WiFi antennas
Power Supply Input: 100-240VAC, 50-60Hz, 0.3A Max
Power Supply Output: 12 VDC, 1A
