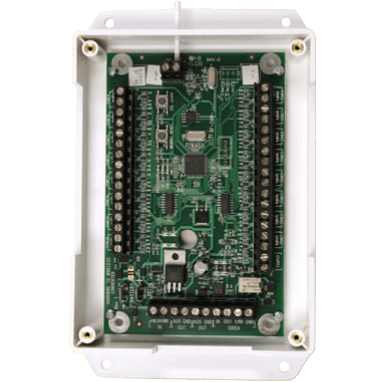

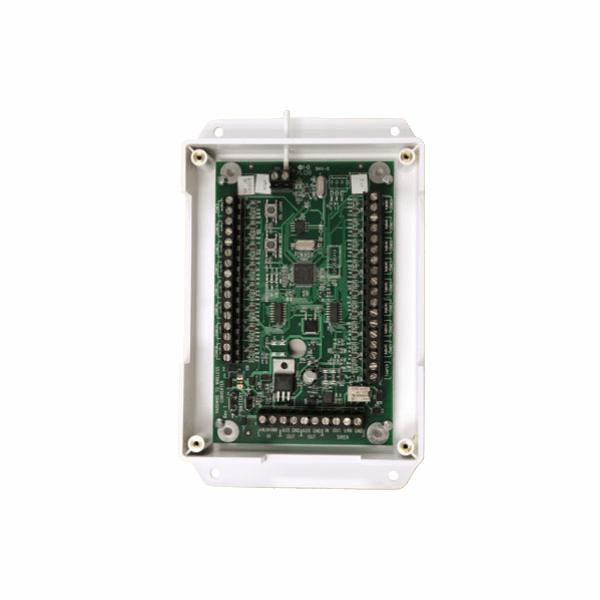

QS-7131-840 - Qolsys S-Line 16-Hardwired to 16-Wireless Zones Translator
Please Note: The QS-7131-840 16-hardwired to 16-wireless zones translator has been discontinued and replaced by the QS7133-840 model.
Qolsys QS-7131-840 Product Description:
The Qolsys QS-7131-840 is a S-Line translator that allows you to encrypt and connect up to 16 hardwired zones wirelessly to the IQ Panel 2. The QS-7131-840 automatically learns the sensor's resistor values, and is the perfect solution for existing systems or new construction.
The IQ Hardwire 16-S offers a cost effective way of integrating hardwired security zones with the IQ Panel. It includes backup battery charging, an onboard siren relay and features end-of-line resistor learning, making rewiring different resistor values a thing of the past. It also supports magnetic contacts and powered zones such as motion sensors and glass break detectors. Please note, that the QS-7131-840 is not for use with life safety devices, such as smoke or carbon monoxide (CO) detectors.
Product Features:
- Encrypted S-Line sensor technology protects signals sent to the IQ Panel while still providing support for legacy 319.5 systems
- LED lighted zones for ease of "learn-in" installation/troubleshooting
- EOL resistor learning supports 1-10K Ohm resistors
Qolsys QS-7131-840 Product Specifications:
- Dimensions: 5.5 x 3.5 inches
- Backup batteries: 12VDC, 5AH Max (optional)
- Input voltage: 16VDC Plug-In Transformer
- Operating Temperature: 32°F to 122°F (0°C to 50°C)
- Humidity: 95&per; RH Max
- EOL Supervision: 1K to 10K Ohm
- Input Zones: 16 (must have resistor)
- Auxiliary Voltage Output: 12VDC @ 500mA
- Tamper Zone: Optional zone input for tamper
- Relay Contact: 60VDC/1A Max drives siren or other device
- Zone Type: N/O or N/C compatible
