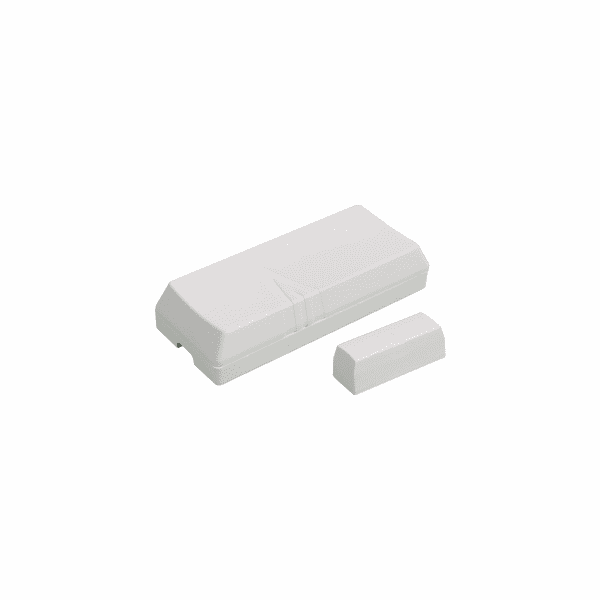

QS-1100-P01 - Qolsys IQ Wireless Door/Window Alarm Contact

QS-1100-P01 - Qolsys IQ Wireless Door/Window Alarm Contact
QS-1100-P01 - Qolsys IQ Wireless Door/Window Alarm Contact
Item# QS-1100-P01

Average Customer Rating:
Read Review(s) | Write a Review

Please Note: The QS-1100-P01 wireless door/window contact has been discontinued without replacement.

Qolsys QS-1100-P01 Standard Contact:

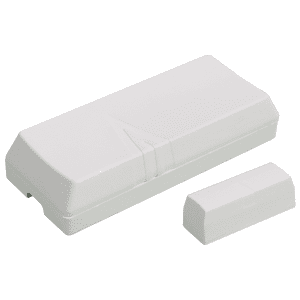

The Qolsys IQ door/window QS-1100-P01 is designed to be attached to the outside of any door or window. With a five year battery life and a slimmer form factor, Qolsys has improved upon another industry standard. Place these sensors on each door and window to create a protective perimeter around your home. Know when these doors and windows are opened with customizable chimes and create unique names for each entry and know when they have been opened and closed. With the interactive app you'll receive text messages when a door is left open.

Product Features:

  • Can be mounted on doors or windows
  • Low profile
  • Supports one or two doors, windows etc.
  • Primary wireless magnet contact and secondary wired contact
  • Internal or external reed switch
  • Easy, wire-free installation
  • Secondary (optional) sensor (external wired door/window sensor)
  • Advanced circuit technology resulting in ultra-low power consumption
  • Includes easy to apply adhesive
  • Fully Customizable - can be programmed as "Safety Sensor" for pool gates, medicine cabinets, gun safes, and liquor storage
  • Using Alarm.com you can program alerts to your mobile devices informing if door or window is left open for a predetermined amount of time
  • Sensor Open and Close detection
  • Tamper Switch triggers if cover is removed
  • Magnetic Technology

Qolsys QS-1100-P01 Product Specifications:


  • Sensor : 3.25H x 1.3W x 1D in. (8 x 3 x 1.5cm)
  • Magnet : 1.3H x 0.435W x 0.312D in. (3.3 x 1.1 x 0.79cm)
  • Alerts IQ Panel if moved more than .5"
  • Requires two (2) 3V CR2032 Batteries
  • 5-Year Battery Life
  • Wireless Signal Range - 600ft (200M), open air
  • Transmitter Frequency - 319.5MHZ
  • Supervisory keep-alive interval - 70 minutes
  • Sensor Open and Close detection
  • RF Output power 91.1dBuV +/- 5&per; at 3m
  • Operating Temperature : -10°C - 50°C
  • Relative Humidity : 5-95&per; Non-Condensing
  • Storage Temperature : -40°C - 80°C
