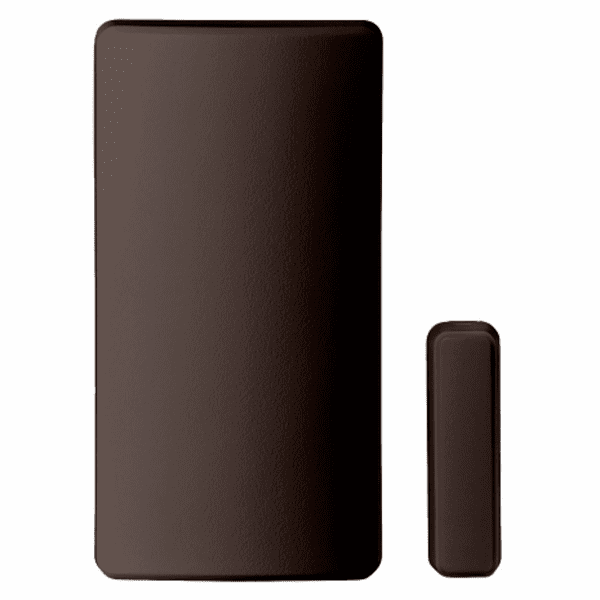

PROSiXCTV-BR - Resideo Honeywell Home Wireless Door/Window Alarm Contact in Brown Color (for ProSeries Control Panels)
ProSeries PROSiXCTV-BR Product Description:
The Resideo Honeywell Home PROSiXCTV-BR is a wireless two-zone door/window brown-color alarm contact, with cover and wall tamper, that is intended for use with control panels that support PROSiX-Series devices. The PROSiXCT-BR door/window contact is compatible with the ProSeries PROA7, ProSeries PROA7C, ProSeries Canada PROA7CN, ProSeries PROA7PLUS, ProSeries PROA7PLUSC or ProSeries Canada PROA7PLUSCN all-in-one wireless touchscreen control panels. The PROSiXCTV-BR alarm contact should be placed on the doors and windows that you want to protect within 300 feet of the ProSeries panel. This form of perimeter protection provided by this wireless alarm contact serves as the first line of defense against burglary intrusion.
After enrolling and before mounting the PROSiXCTV-BR contact, verify there is adequate signal strength by conducting a sensor test with the device in its intended mounting location. Adjust the device location and orientation if the contact is out of range of the ProSeries panel. The signal strength ranges from 1 to 4 green bars with the minimum 1 green bar being needed for the zone to be programmed. Four red bars indicates poor signal strength and the device should be relocated.
The PROSiXCTV-BR is simple to install with two mounting options. The first option uses the reed switch with magnet. With this option, when installed the magnet gap from the PROSiXCTV-BR contact should be no greater than 0.75 in. (1.9cm) and the break gap is reached when the magent is pulled 1.30" (3.3cm) apart from the contact. The second option is using the optional wiring for the external contact loop with surface wiring or concealed wiring. If using an external contact, connect its wires to the terminal block on the PROSiXCTV-BR contact. Please note that the wiring limit in this case is 3 feet.
When installing, please ensure that the magnet is aligned with the top of the sensor. Next, enroll the devicew in the ProSeries control panel. After enrolling, verify adequate signal signal strength by conducting a sensor test with the device in its intended mounting location. And, if necessary, adjust the device location and orientation.
Product Features:
- 128-bit AES Encryption (PROSiX-Series)
- Brown color door/window contact
- Extended transmission range up to 300 feet
- Auxiliary input terminal
- Cover and wall tamper
- Protects doors and windows
ProSeries PROSiXCTV-BR Product Documents:
• ProSeries PROSiXCTV-BR Wireless Door/Window Alarm Contact - Data Sheet
• ProSeries PROSiXCTV-BR Wireless Door/Window Alarm Contact - Installation Guide
• ProSeries PROSiXCTV-BR Wireless Door/Window Alarm Contact - Quick Installation Guide
ProSeries PROSiXCTV-BR Product Specifications:
- Sensor Dimensions (H x W x L): 1.1" x 1.6" x 3.1" (27.9 mm x 40.6 mm x 78.7 mm)
- Magnet Dimensions (H x W x L): 0.6" x 0.4" x 1.4" (15.2 mm x 10.2 mm x 35.6 mm)
- Color: Brown
- Temperature Sensing Capable: Yes
- Mounting Hardware: Included
- Magnetic Gap: ≤1.0" (25mm) gap for reed switch
- Transmission Range: 375 ft (114.3 meters) plus*
- Frequency: 2.4 GHz
- Power Requirements: 3V CR123A lithium battery (Qty 1; Panasonic CR123A, Duracell DL123A or Huiderui CR123A)
- Encryption: 128-bit AES
- LED Indicators: Yes
- Tamper Protected: Yes (Cover and Wall)
- Auxiliary Input Terminal: Yes
- Operating Temperature: 32° to 122°F (0° to 50°C)
- Relative Humidity: 5-95%, non-condensing
- Agency Approvals: FCC/IC, cETLus Listed, Conforms to UL 634, Certified to ULC/ORD-C634
- Other Standards: RoHS
- Authorized Countries: US, Canada, Latin America
* Range can vary depending on building construction, wireless interference, and other factors.
