NX-1820E - GE Interlogix NetworX Hardwired Touchscreen Alarm Keypad (w/3.5" Display)
Please Note: The Interlogix NX-1820E NetworX touchscreen alarm keypad has been discontinued without replacement.
GE NetworX NX-1820E Product Description:

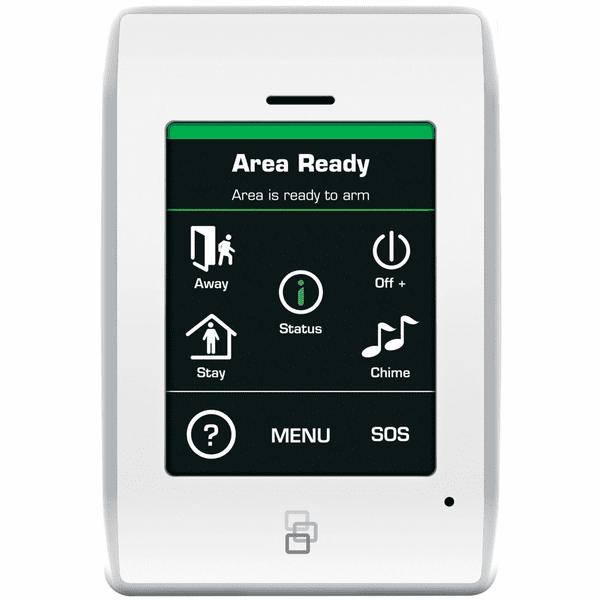

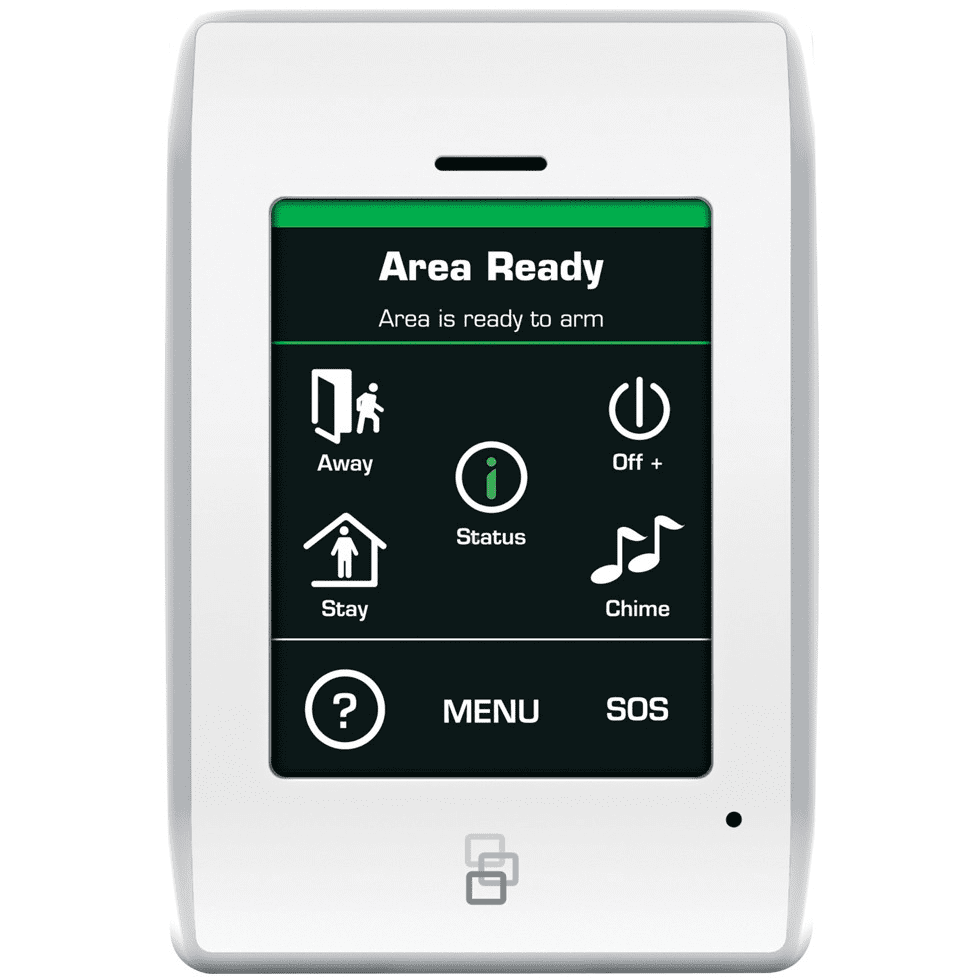

The GE NetworX NX-1820E hardwired touch screen alarm keypad is ideal for almost any size application. The NetworX TouchScreen Keypad offers powerful yet simple control of any NetworX security system. An intuitive interface, 3.5" touch screen and Quick Keys for rapid system arming and status updates enable quick and easy system management. Users can record their own names for different system components and leave voice messages for others when arming or disarming. When a NetworX proximity card reader (NX-1700E) is installed, users can easily manage access cards and authority levels from the convenience of the keypad.
Product Features:
- NetworX system compatibility
- 3.5" Color Touch Screen
- Icon-based graphic interface
- Quick Arm, Stay and Status keys
- Custom text naming for user names, areas, zones, outputs and rooms
- Access card management (when card reader NX-1700E is installed)
- Built-in message board
- 192-zone capability
- Support for up to 99 users, 8 partitions and 16 outputs
- Customizable chime groups for specific zones
- Streamlined, modern design
- USB upgradeable
GE NetworX NX-1820E Product Specifications:
- Dimensions (W x H x D): 3.2 x 4.9 x 0.7 in. (82 x 125 x 18mm)
- Color: Opal White with silver frame
- Compatibility: Interlogix NetworX control panels (NetworX control panels as of Version 2; NX-4, NX-6, NX-8, NX-8E, NX-7, NX-9, NX-10 and NX-11)
- User Interface: Intuitive graphical interactive encased in a 3.5" TFF LCD screen
- Language: English and 2 additional languages
- Operating Voltage: 12VDC Regulated, supplied from control panel
- Current: 40mA in idle mode, 170 mA max. with buzzer and screen on max,. brightness, 110mA typical
- Wiring: NetworX 3-wire data/communication bus
- Operating Temperature: 32° to 122°F (0° to 50°C)
