MQ03-LTE-FIRE - M2M Universal Multi-Band Dual-Path LAN/AT&T/T-Mobile LTE Commercial Fire Alarm Communicator (Compatible with Most Panels)

MQ03-LTE-FIRE - M2M Universal Multi-Band Dual-Path LAN/AT&T/T-Mobile LTE Commercial Fire Alarm Communicator (Compatible with Most Panels)
MQ03-LTE-FIRE - M2M Universal Multi-Band Dual-Path LAN/AT&T/T-Mobile LTE Commercial Fire Alarm Communicator (Compatible with Most Panels)
Item# MQ03-LTE-FIRE

Average Customer Rating:
Read Review(s) | Write a Review

Please Note: The M2M Services MQ03-LTE-FIRE multi-band dual-path commercial fire alarm communicator has been discontinued and replaced by the MQ03-LTE-M-FIRE-AV model number.

M2M Services MQ03-LTE-FIRE Product Description:

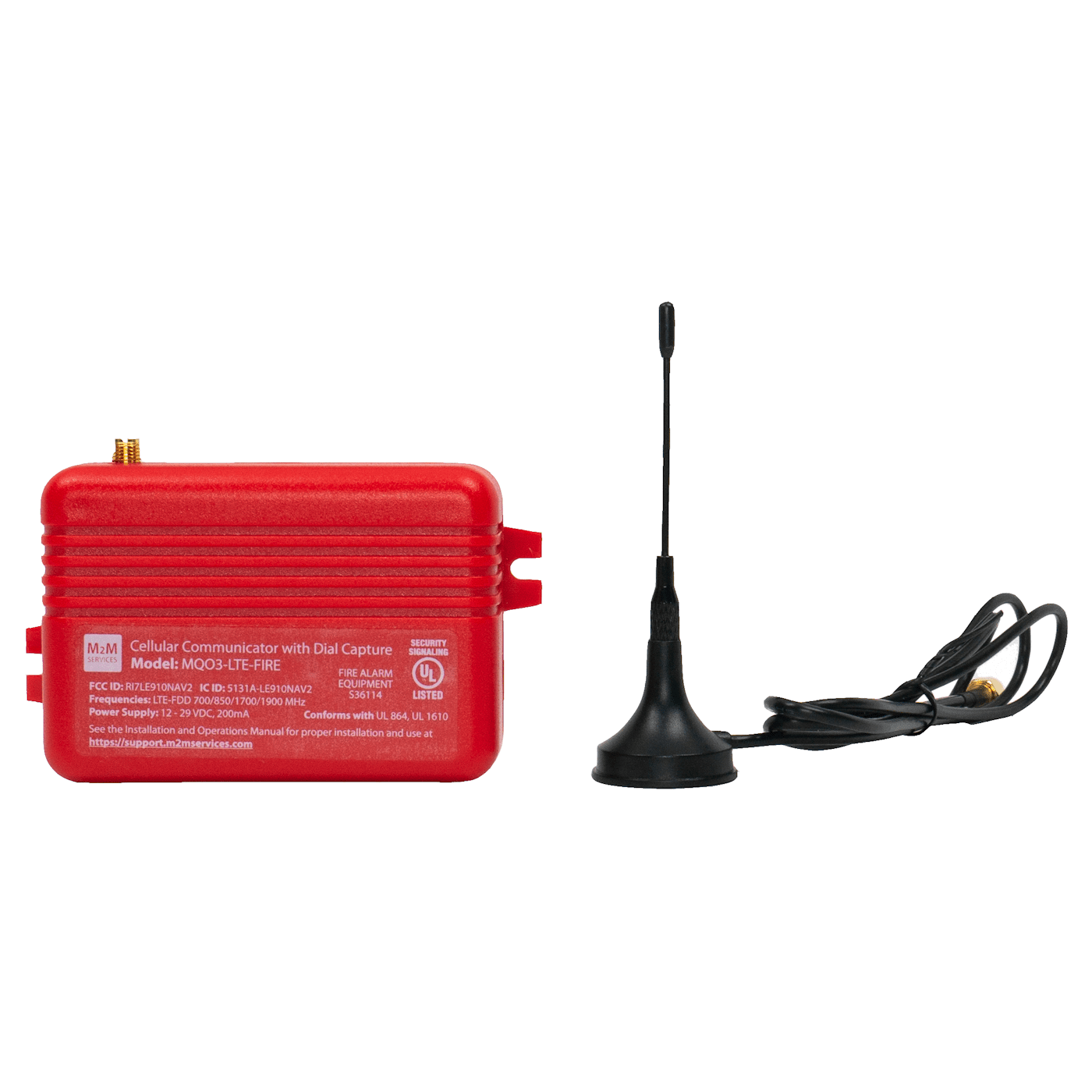

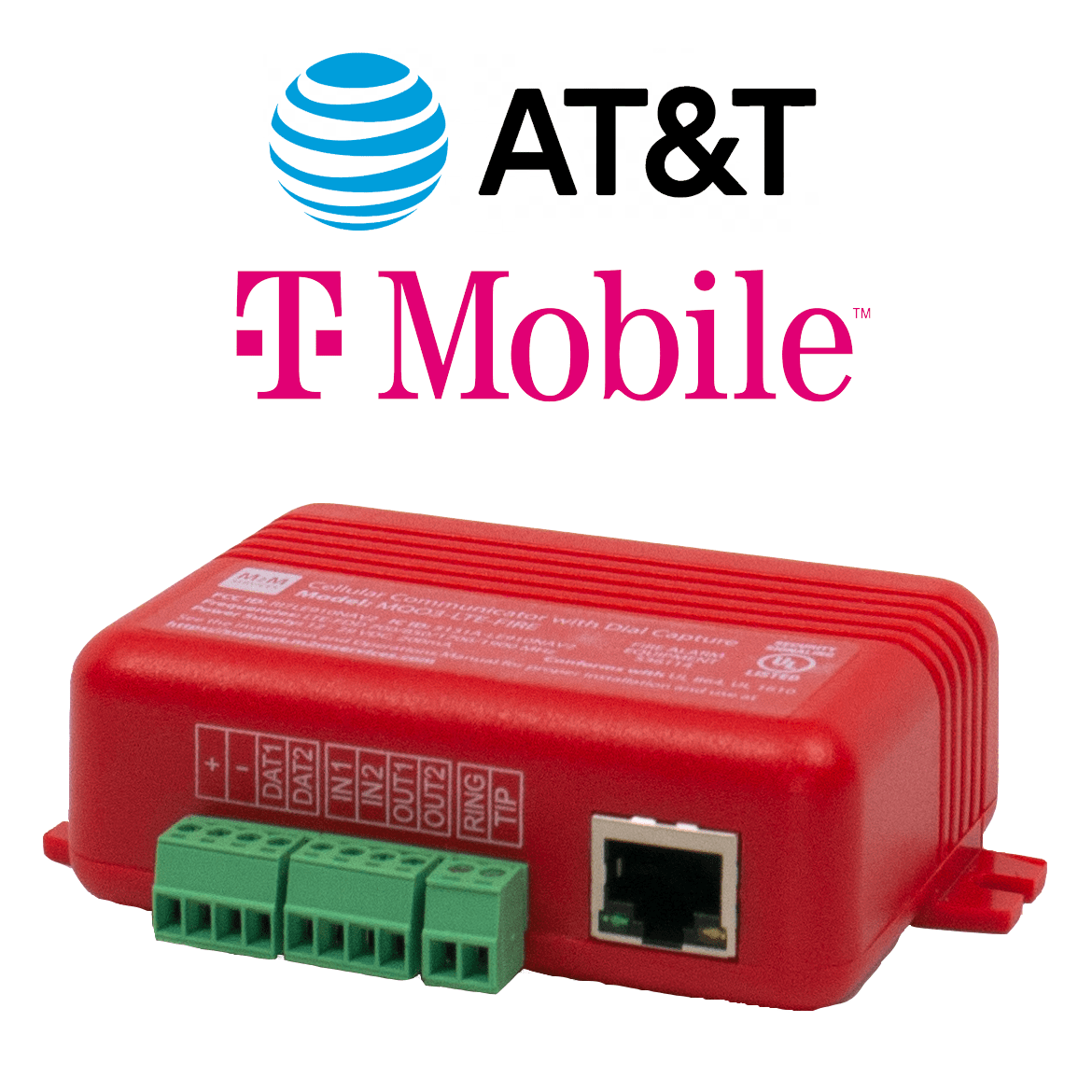

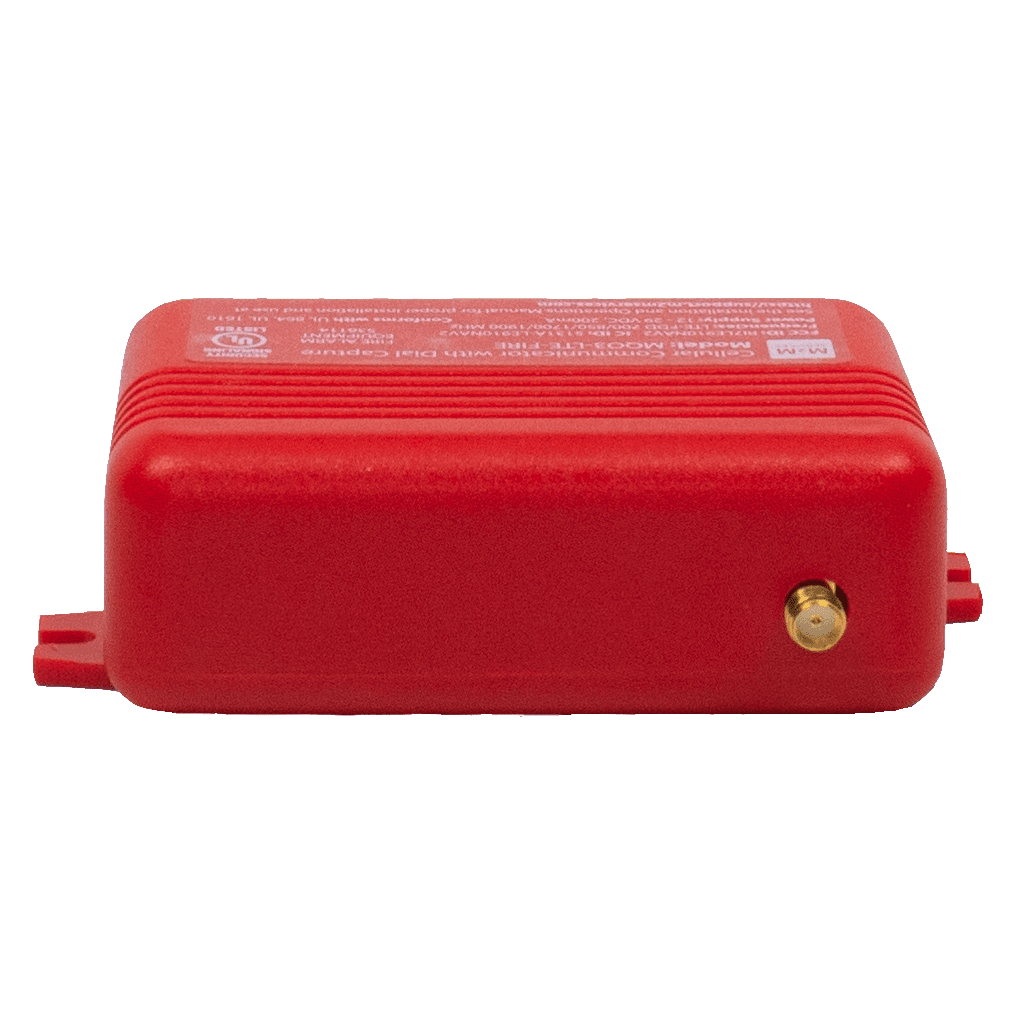

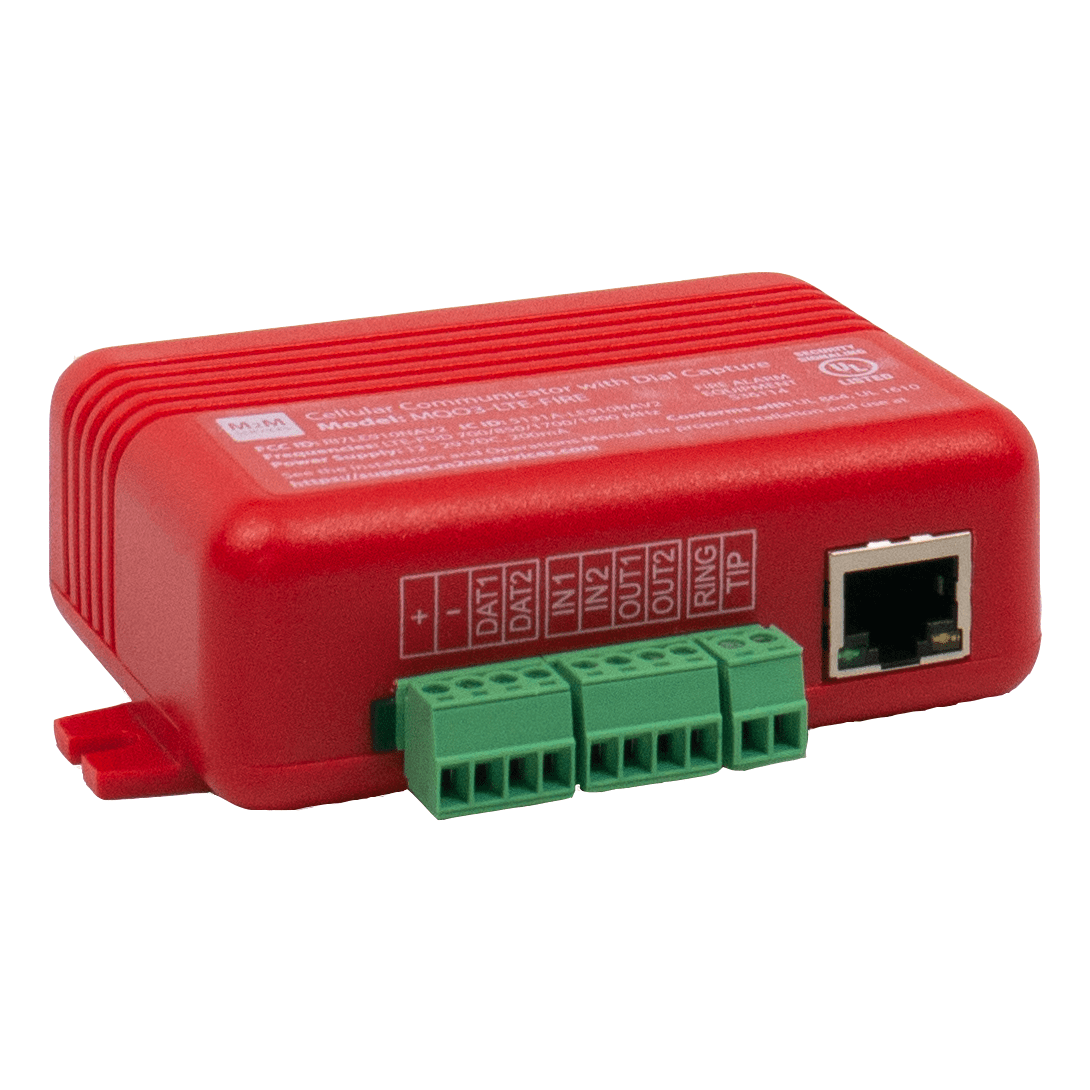

The M2M Services MQ03-LTE-FIRE is a universal multi-band dual-path ethernet LAN and cellular 5G LTE commercial fire alarm communicator that is compatible with most dial-capture interface existing panels supporting Ademco ContactID and SIA formats. With future-proof technology, the MQ03-LTE-FIRE communicator has a dual-SIM card that transmits fire alarm signals over the AT&T/T-Mobile LTE network(s) to the GeoArm central monitoring station.

Product Features:

  • Universal Fire Panel Compatibility: Dial-Capture Interface supporting Contact ID, SIA and Pulse 4+2
  • Exceptional Network: Dual-SIM supporting AT&T and T-Mobile LTE
  • Redundant Communications: Ethernet LAN and Dual-SIM supporting AT&T and T-Mobile LTE

*If ordered, the M2M cellular radio antenna manufactured in the 10' foot length is subject to product availability.

M2M Services MQ03-LTE-FIRE Product Specifications:


  • Dimensions: 2.48 x 3.54 x 1.26 inches
  • Weight with Battery: 2.65 ounces (75 grams) without antenna
  • Multi-Band: LTE 700/850/1700/1900 MHz with 3G/4G 850/1900 MHz fallback
  • ARM9 Processor: 512KB RAM, 1.5MB Flash
  • Dial Capture Interface: supporting Ademco ContactID and SIA
  • Digital Input: 2
  • Digital Output: 2 (programmable)
  • Supply Voltage: +12 to +30 VDC
  • Dual-Path: LAN and cellular channels
  • Power Consumption: Nominal 50mA, Peak 200 mA
  • Certification(s): UL 985 (Household Fire Warning Systems), UL1023 (Household Burglar Alarm Systems), UL 1610 (Central Station Burglar Alarm Units)
