LTE30ATT - Uplink Universal Primary Cellular AT&T LTE Alarm Communicator (Compatible with Most Panels)
Please Note: The Uplink LTE30ATT primary cellular AT&T LTE alarm communicator has been discontinued and replaced by the 5530M model number.

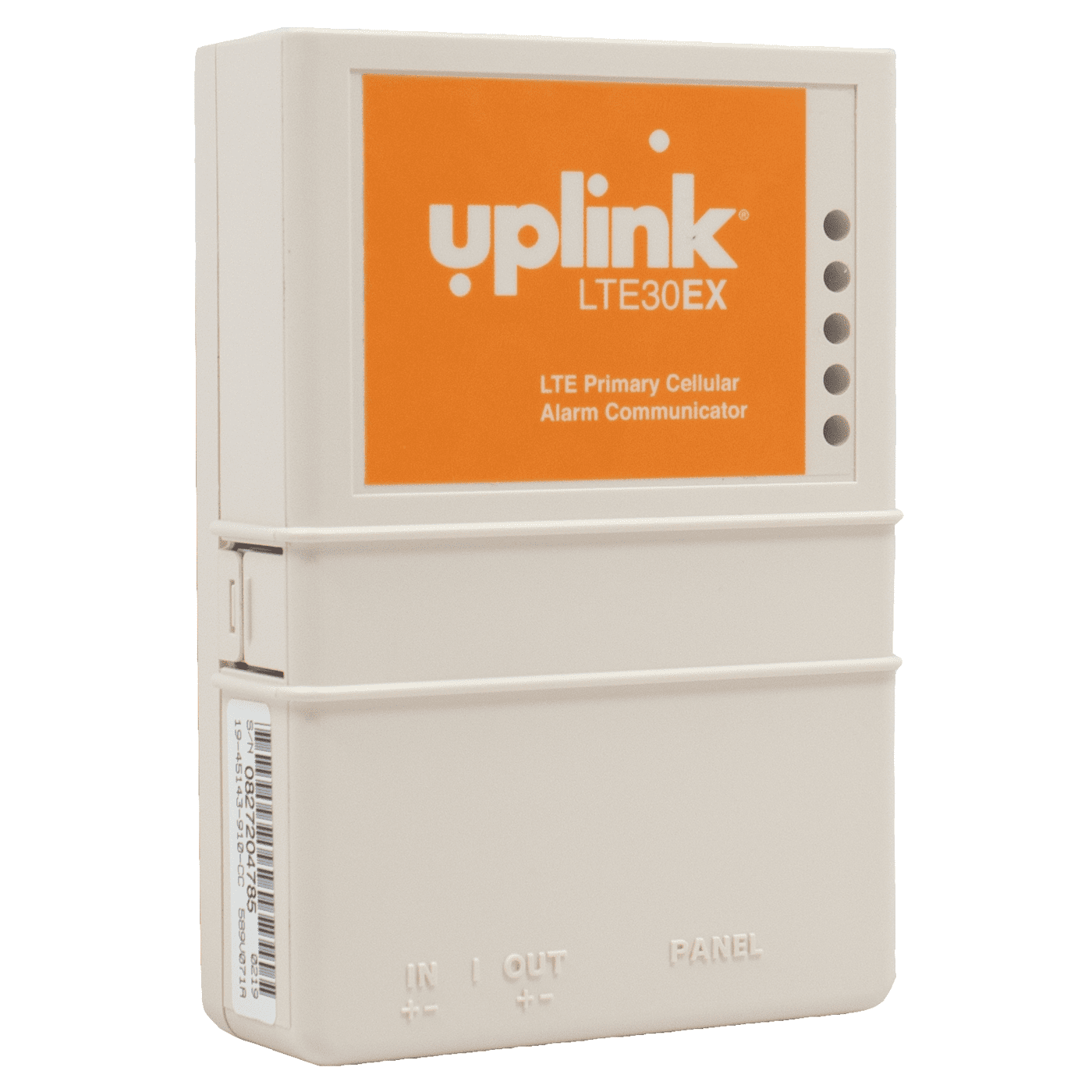

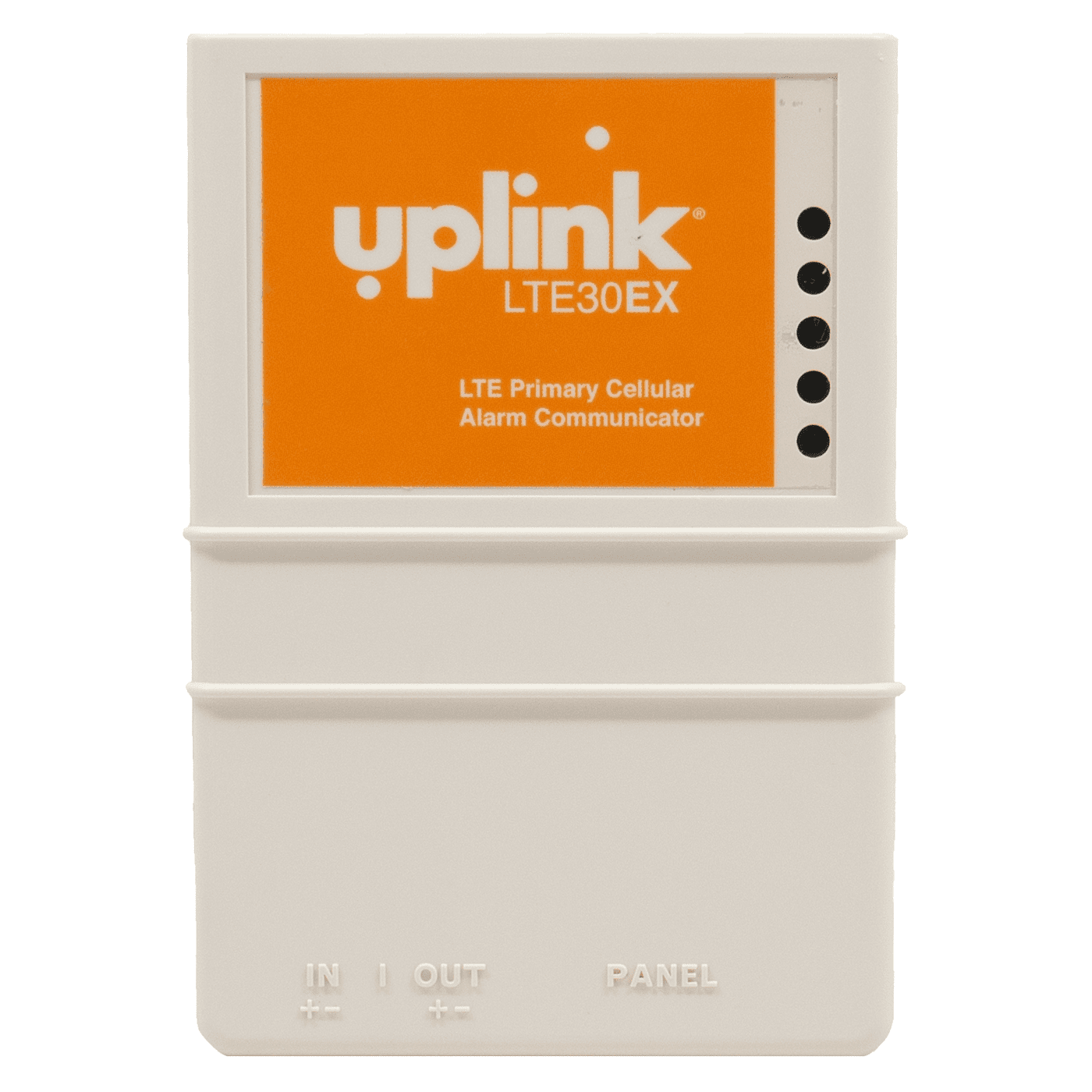

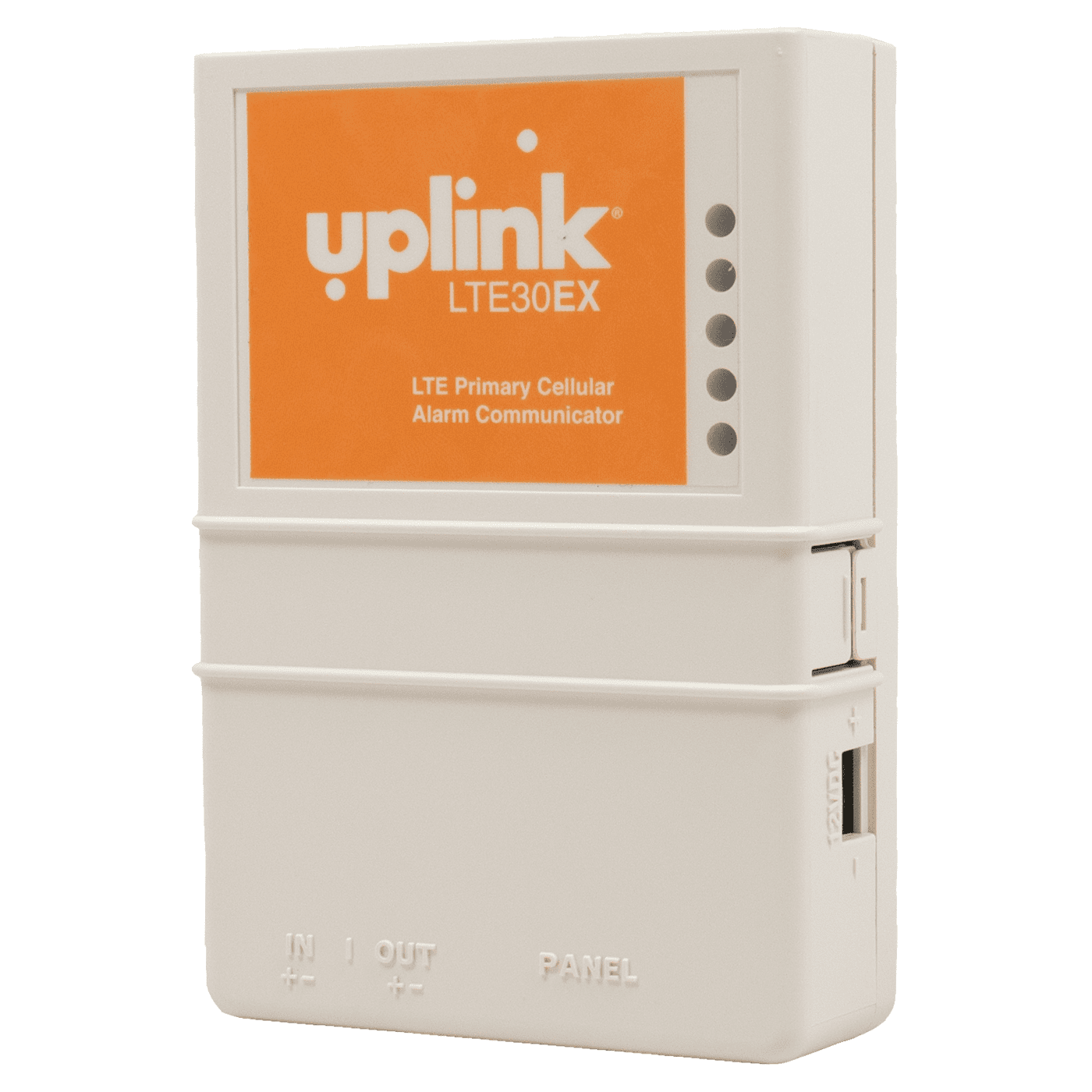

Uplink LTE30ATT Product Description:
The Uplink LTE30ATT is a universal cellular AT&T LTE alarm communicator intended for existing security systems. The LTE30ATT features full event or summary event reporting for use as a primary communicator. It offers dial-capture and smart siren/bell sampling to detect burglary or fire conditions for universal compatibility with almost every alarm system. The LTE30ATT communicates to central stations by dialup to any industry standard receiver, or over the internet to an IP receiver.
Product Features:
- Primary alarm communications for residential or commercial security
- Supports virtually all security systems and multiple formats
- Remote on-demand testing for status and signal strength

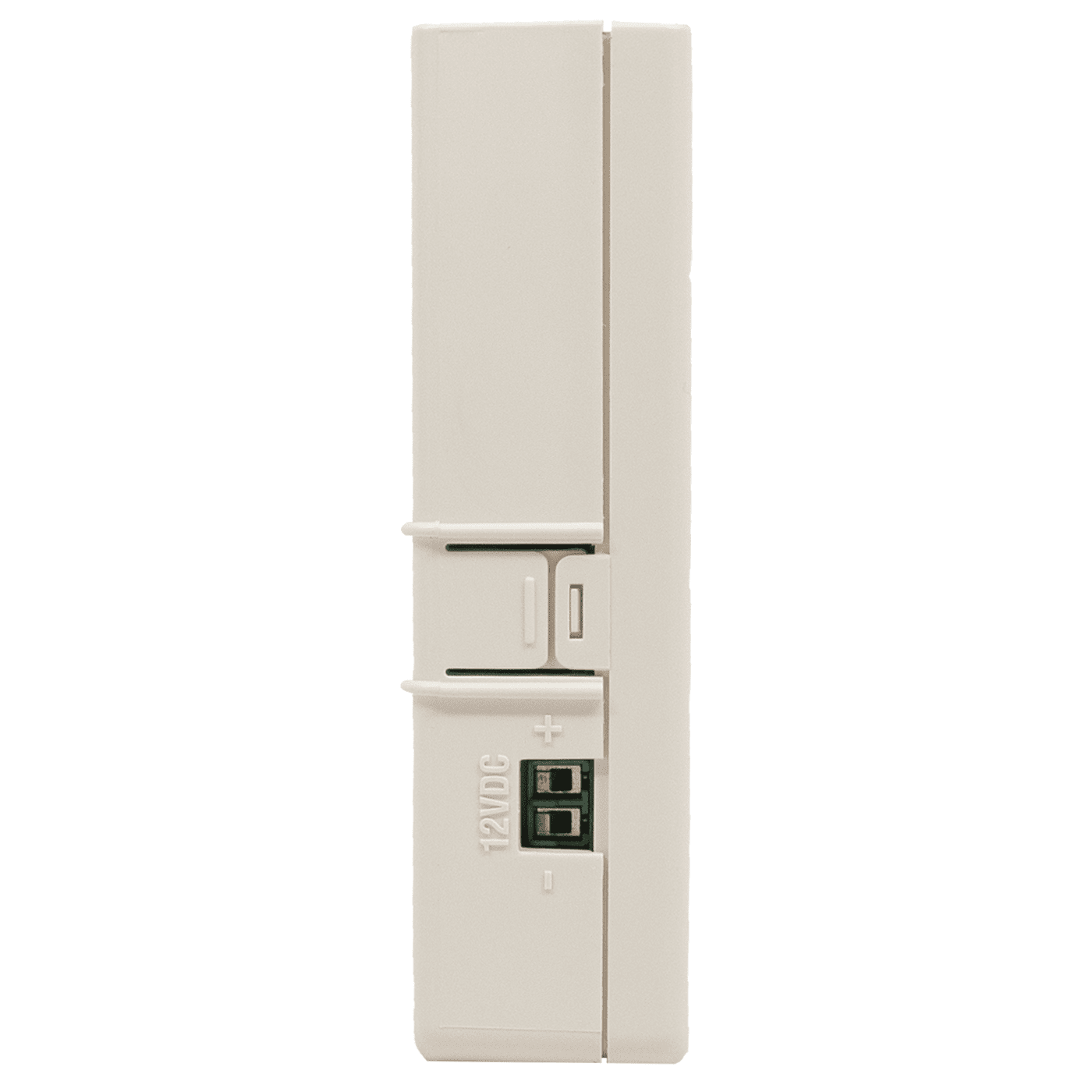

- Power from the panel or separate 12V DC power supply (not included)
- Installs in minutes with reliable end-to-end signal verification
- Web and smartphone apps for remote arming and disarming
- Login to Uplink Remote @ uplinkremote.com for remote interactive control and end-user notifications
Uplink LTE30ATT Product Specifications:
- Product Dimensions (H x W x D): 4.75" x 3.3" x 1.3"

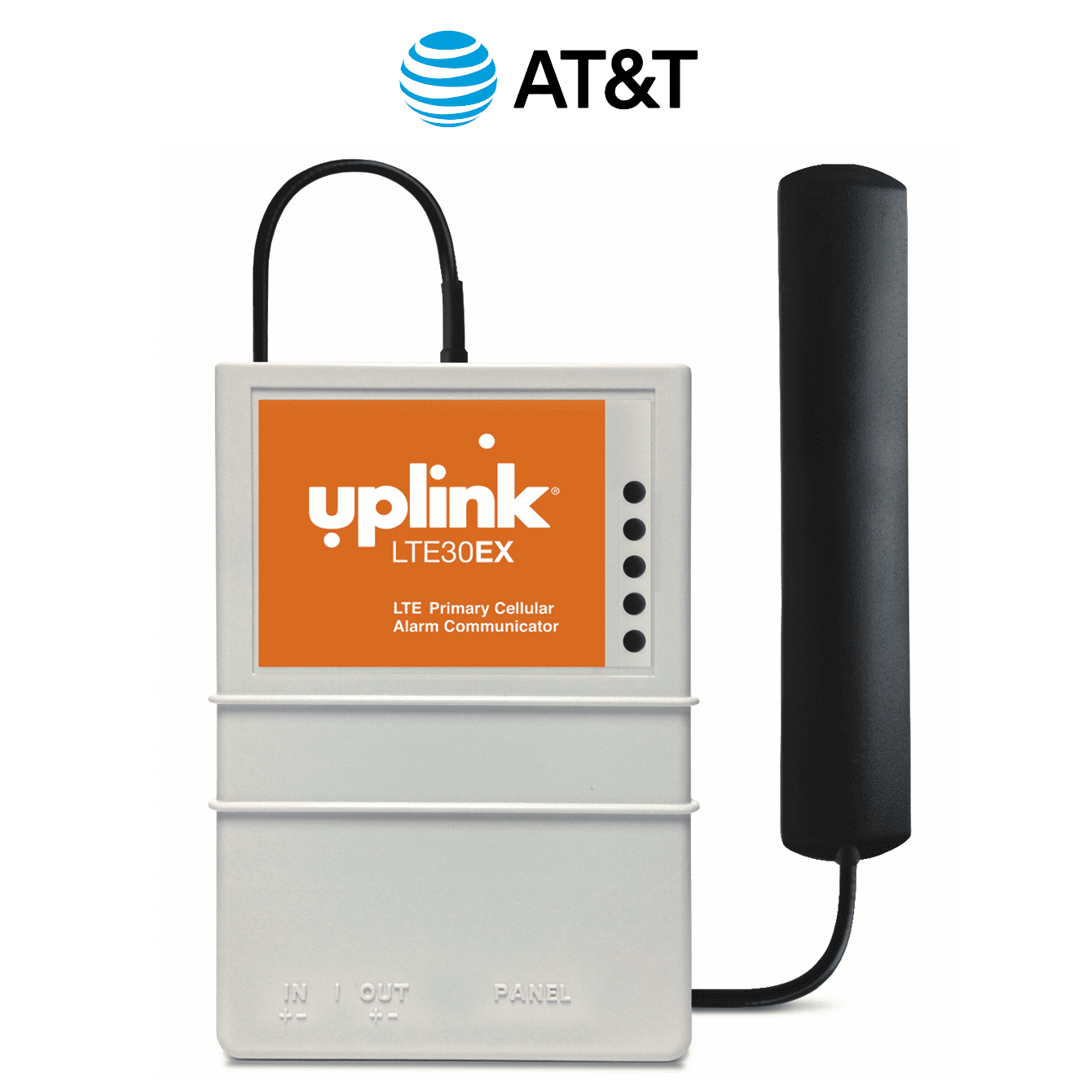

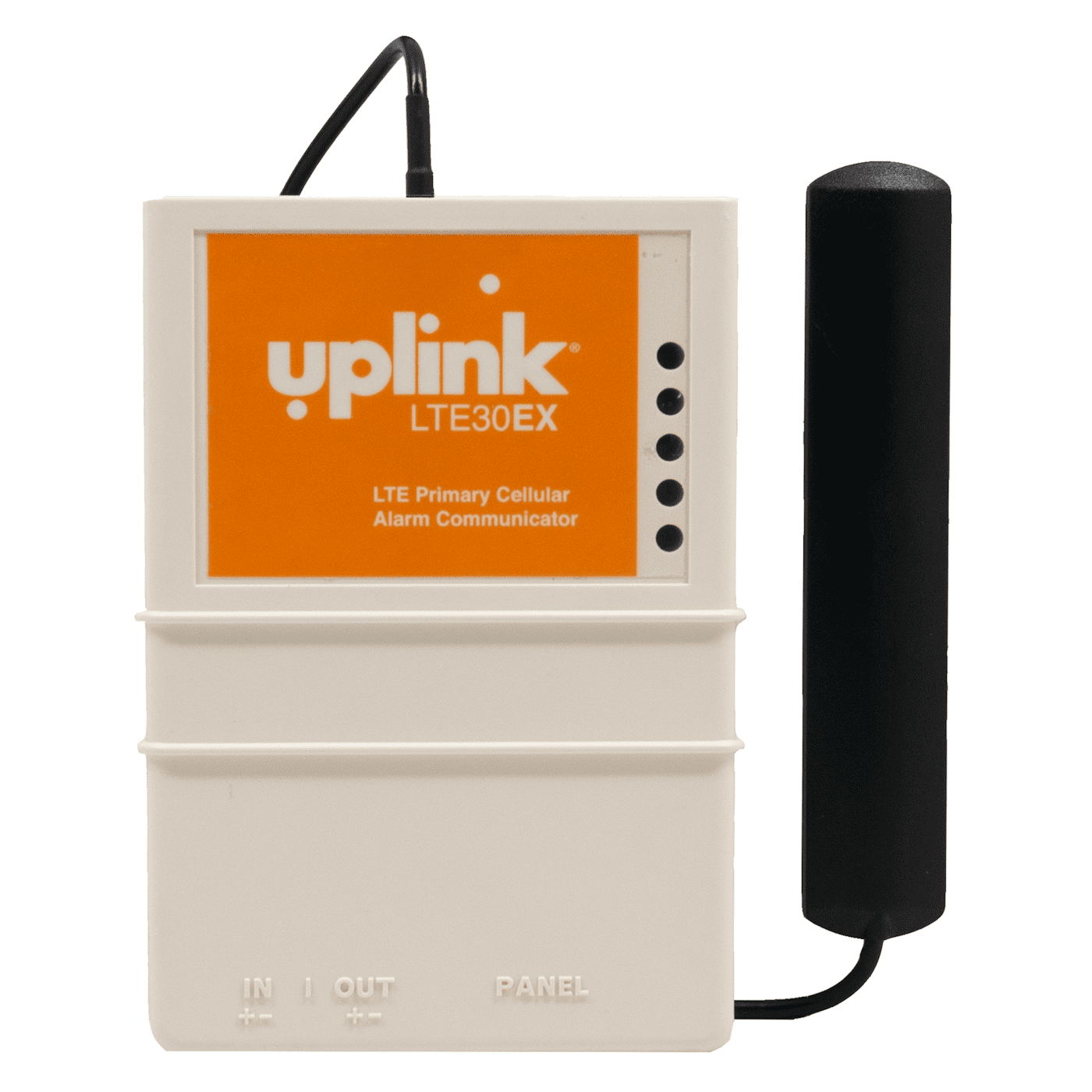

- Antenna Dimensions: 3.75"
- Central Station: Contact ID, SIA, Modem IIe/IIIa2, or Pulse 4/2 (:10, :20, or :40 PPS) internet or dialup
- Alarm Dial Capture: Full event reporting of Contact ID, SIA, Modem IIe/IIIa2, or Pulse 4/2 (:10, :20, or :40 PPS) internet or dialup
- One Input: Connect to siren/bell (distinguishes between burg/steady and fire/pulsed) or programmable to 12 volts
- One Relay Output: Configurable - normally open
- Automated Testing: Monthly, Weekly or Daily
- Other Reporting: Email, text message
- Status LEDs: Signal strength, power, panel hook status, trouble, heartbeat
- Radio Technology: 1 LTE with UMTS/HSPA+ fallback for maximum coverage
- Cellular Frequency Bands (UMTS/HSPA+): Triple band, 850 (BdV) / AWS (BdIV) / 1900MHz (BdII)LTE: Quad band, 700 (Bd12) / 850 (Bd5) / AWS (Bd4) / 1900MHz (Bd2)
- Output power (according to Release 99): Class 3 (+24dBm +1/-3dB) for UMTS 1900,WCDMA FDD BdIIClass 3 (+24dBm +1/-3dB) for UMTS AWS, WCDMA FDD BdIVClass 3 (+24dBm +1/-3dB) for UMTS 850, WCDMA FDD BdV
- Output power (according to Release 8): Class 3 (+23dBm ±2dB) for LTE 1900,LTE FDD Bd2Class 3 (+23dBm ±2dB) for LTE AWS, LTE FDD Bd4Class 3 (+23dBm ±2dB) for LTE 850, LTE FDD Bd5Class 3 (+23dBm ±2dB) for LTE 700, LTE FDD Bd1
- Operating Temperature Range: -20°C to +50°C (-4°F to 122°F)
- Storage Temperature Range: -30°C to +70°C (-22°F to 158°F)
- Humidity Range: 0 to 95% non-condensing
- Voltage: 12V DC
- On hook current max: 125mA
- Off hook current max: 250mA
- Transmit max: 250mA
