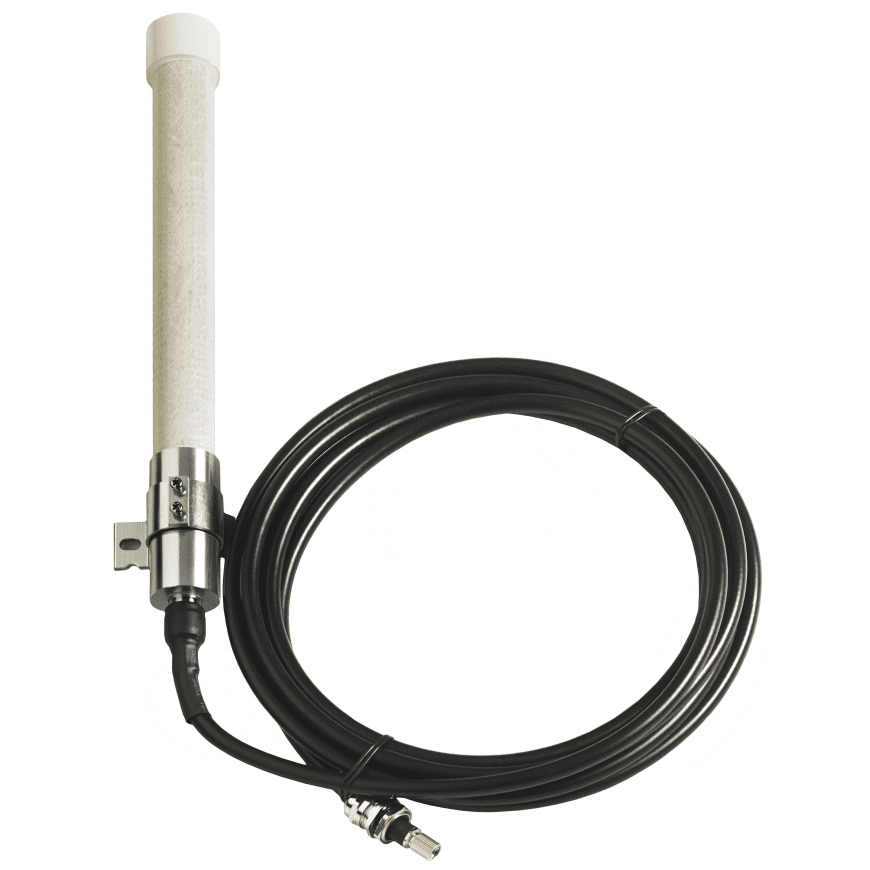

LTE-25ANT - DSC Indoor/Outdoor Cellular Extension Antenna Kit (25' Foot)
DSC LTE-25ANT Product Description:
The DSC LTE-25ANT is a indoor/outdoor extension antenna kit for DSC cellular alarm communicators. Use the LTE-25ANT to mount your antenna at up to 25' feet (7.6 m) higher elevation or where the signal is stronger, to achieve a better cellular communication signal.
Product Features:
- 25' Foot Extension
- Indoor/Outdoor
- LTE/3G/2G
DSC LTE-25ANT Product Specifications:
- Type: LTE/3G/2G
- Gain: 3dBi
- Polarization: Linear Vertical
- Frequency Range: 698 ~ 2700MHz
- Azimuth Beam Width: Omni-directional
- Radiating Element: 1/4 Wave Helical
- Admitted Power: 100W
- Elevation Beach Width: 3dB
- VSWR (max.): 2.0
- Impedance: 50 ohm
- Antenna Length/Diameter: 333mm
- Antenna Diameter: 35mm
- Cable Type: 7D-FB
- Cable Length (Ft/m): 25'/7.6m
- Connector: RP-SMA
- Operating Temperature: -40°C to +80°C
- Storage Temperature: -30°C to +70°C
DSC LTE-25ANT Product Documents:
• Installation Instructions for DSC LTE-25ANT Cellular Extension Antenna Kit
DSC LTE-25ANT Product Compatibility:
- PowerSeries Neo: LE2080, 3G2080, TL280LE, TL2803G
- PowerSeries: 3G2060, TL2603G, TL260GS, GS2060
- Alexor: TL265GS, GS2065
- Impassa: 3G2055, GS2055, TL2553G, 3G2077
- Universal: 3G4000, 3G4010, 3G4010CF, LE4010, LE4010CF, LE4010ECF
DSC LTE-25ANT Product Includes:
- Extension antenna with cable
- Wall-mount bracket
- U-bracket
- Brass adapter
- Plug
- Clamp
- Cable tie wrap
- Antenna Connector
