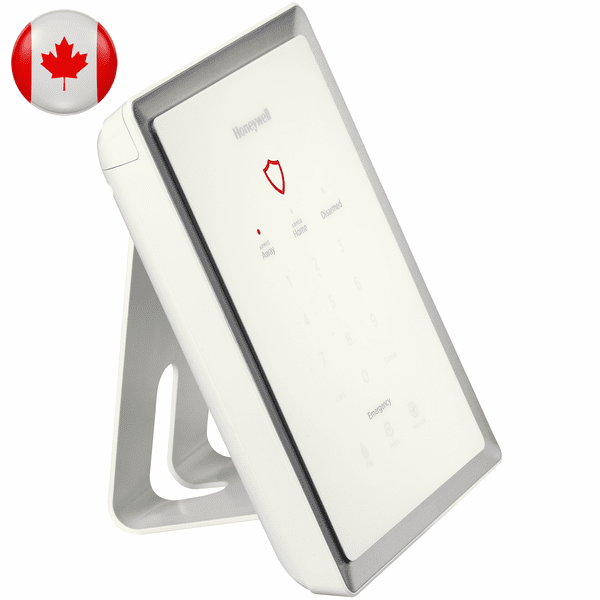

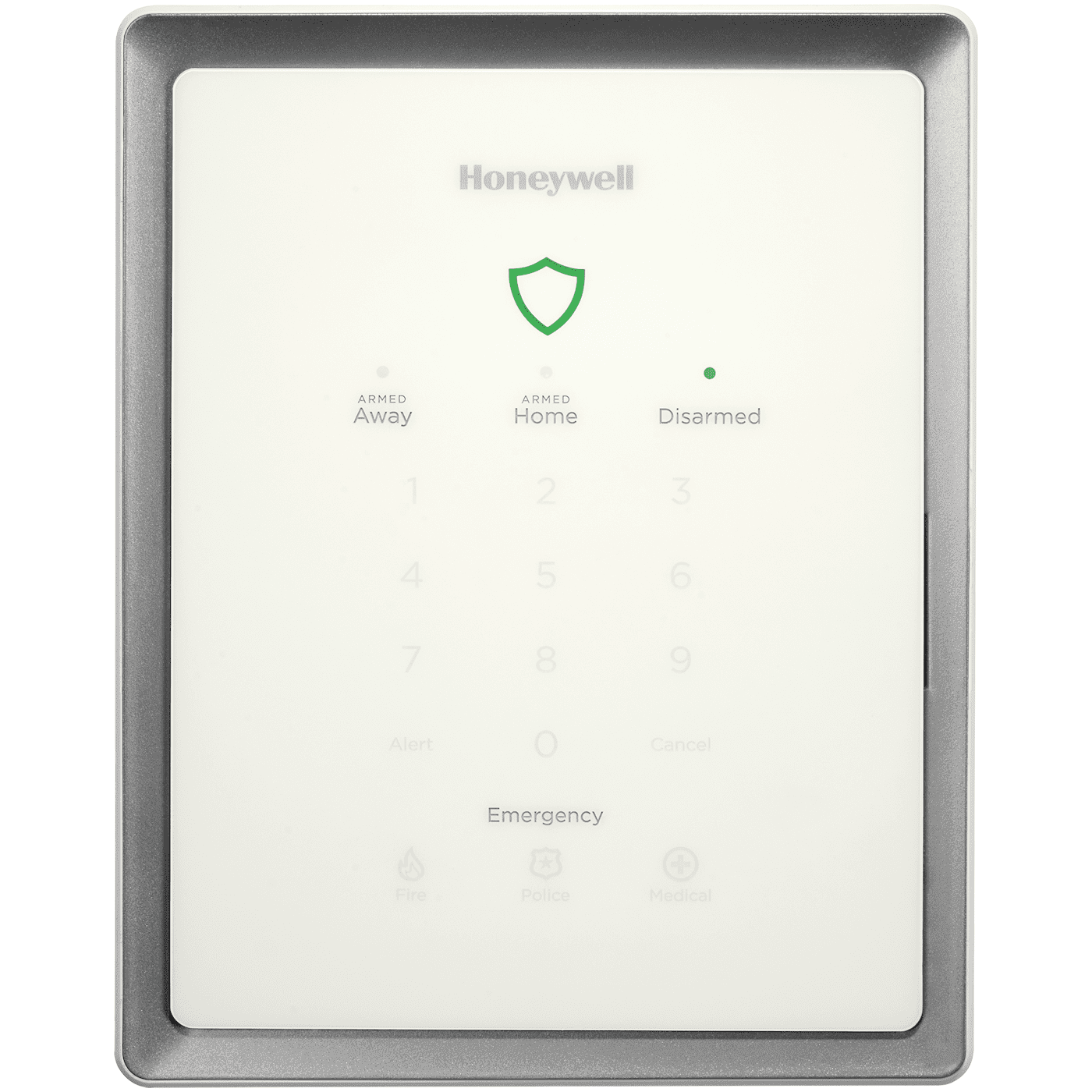

Honeywell Lyric LCP300LCKT Product Description:

Honeywell Lyric LCP300LCKT Product Documents:

Honeywell Lyric LCP300LCKT Product Specifications:

• Product Height: 8.82 inches (22.4cm)

• Product Depth: 1.4 inches (3.6cm)

• Product Width: 6.97 inches (17.7cm)

• Product Weight: 2.2 pounds (1kg)

• Operating Temperature: 32° - 122°F (0°-50°C)

• User Interface: Capacitive touch interface with advanced voice guidance

• Lyric® Lock: Speaker, Microphone, Sounder with 85 dB intensity

• Connectors and Modules: Cellular module tray (end-user replaceable), Internal backup battery module (end-user replaceable)

• Built-in Technology: WiFi® (802.11 b/g/n); (2.4 GHz), Ethernet port (10/100), Z-Wave® Plus; Network Wide Inclusion supported, SiX™ Two-Way Wireless Technology, Honeywell 5800 Series wireless sensors

• Supported Technology: CDMA-1xRTT (800, 1900MHz); Plug-in Option, GSM-3G HSPA (850, 1900MHz); Plug-in Option

• Cellular: CDMA-1xRTT (800, 1900MHz); Plug-in Option, GSM-3G HSPA (850, 1900MHz); GSM: AT&T® and Rogers™, CDMA: Verizon®

• Sounds: 10 selectable chime sounds when a sensor is tripped, allowing for different sounds for any door/window (ex: a door opens or closes)

• Voice Announcement: Listen to system state, sensor state, and more (e.g., armed away or front door open)

• Users: 48 system users

• User Profiles: Installer, Master User, Standard User, Guest, Duress

• Wireless Keys: Honeywell SiX™ Two-Way Wireless and 5800 Series Wireless Keys, Supports up to eight wireless keys, each typically assigned to one user, Wireless key supports up to eight action keys

• Supported Devices: 64 wireless sensors, SiX™ Two-Way Wireless Sensors, 5800 Series sensors

• Common SiX Sensors: Sensor for doors and windows, Motion detector, Glassbreak detector, Smoke detector with one-go-all-go capabilities, Siren with audible and visual indications

• Keypads: Supports eight SiX Two-Way Wireless Keypads (Arm and Disarm, Status of System, Seek emergency response, sounds and voice announcements)

• Z-Wave® Support: 76 Z-Wave devices

• Common Solutions: 6 Z-Wave thermostats, 6 Z-Wave door locks, 4 Z-Wave garage doors, 60 light modules (light dimmers, appliance modules, window shades, blinds, water valves, sirens and/or strobes)

• WiFi Thermostats: 4 Lyric WiFi thermostats

• Remote Operation: Honeywell Total Connect® Remote Services application on iOS (iPhone® and iPad®), Android™ and Web

• Remote Operation Features: Manage users of the system, create/run or delete 100 smart scenes to combine states of discrete devices into one command, configure smart scenes to occur based on time/device/system trigger or on manual activation, set up and receive notifications based on activity at the site

• Local Control and Setup: Support for MyHome Gateway app (iOS and Android), Subscription-free option for users to control their system from anywhere at the premise, Up to eight devices

• Emergency Response: Dedicated emergency response button for users to request assistance from authorities

• Emergency Response Types: Fire, Police and Medical

• Emergency Alerts: A loud alarm or sound for; Break-ins when system is armed, potentially unsafe levels of smoke or carbon monoxide, fire or carbon monoxide and burglary event

• Cloud-Based Programming: Program and test using AlarmNet 360™ (from a smartphone, tablet or a web browser), schedule and deliver software or firmware updates to Lyric hardware over-the-air, monitor system usage and activity, remote diagnostics and troubleshooting, keep a record of system test results

• Local Programming: Use AlarmNet 360™ app to program, test and verify system operations, Update firmware and download template into the system at the site in the absence of connection to AlarmNet 360™

• Power Requirements: Plug-in power supply, 110VAC mains to 9VDC with 2.7A output

• Backup Battery: 4-hour (1100mAh) included or optional 24-hour (3700mAh), Rechargeable NiMH cells rated at 7.2VDC

Honeywell Lyric LCP300LCKT Product Includes:
