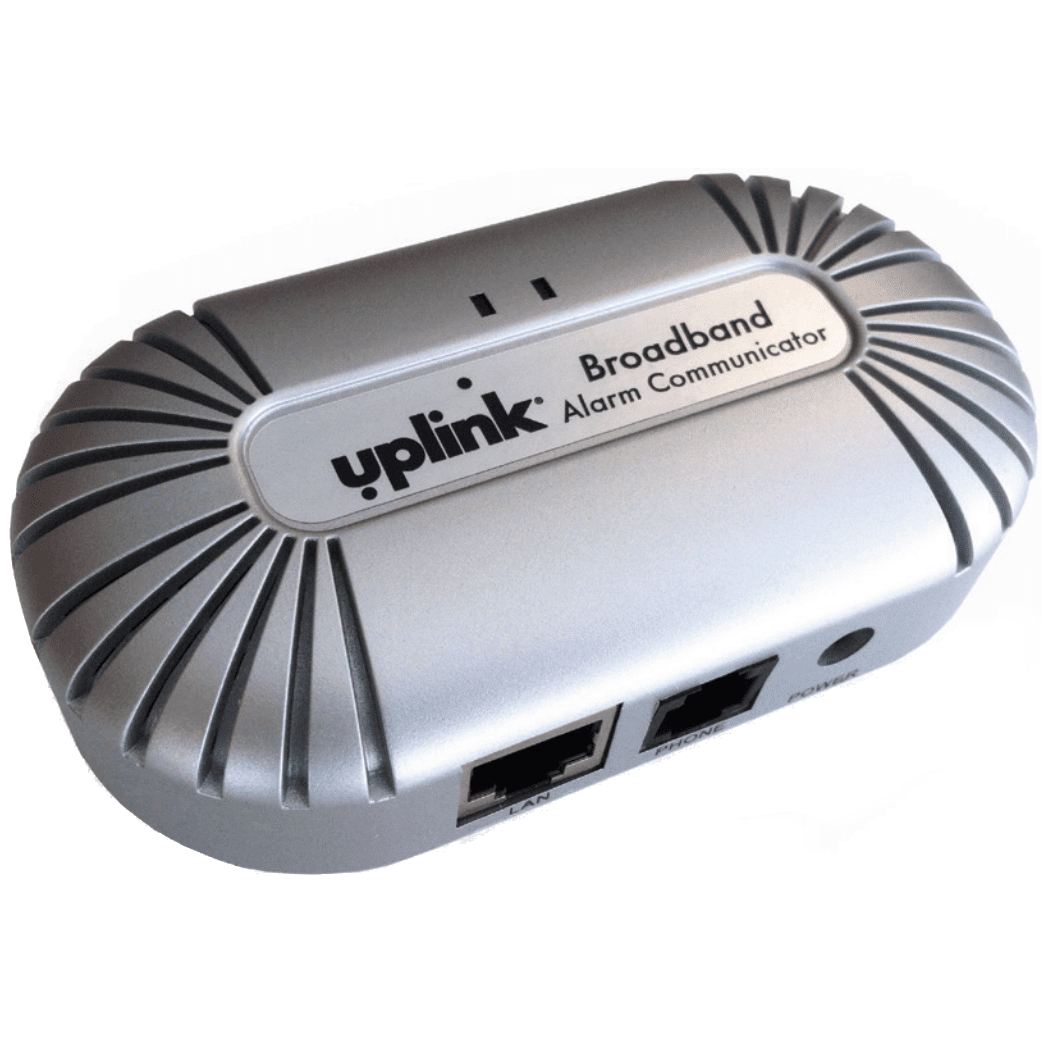

L3-5200 - Uplink Universal Broadband Internet Alarm Communicator (Compatible with Most Panels)
Please Note: The Uplink 5200 broadband internet alarm communicator has been discontinued without replacement.
Uplink 5200 Product Description:
The Uplink 5200 Broadband communicator expands the capability of a Contact ID dial-up alarm system be enabling it to transmit signals over the internet. It is a cost-effective solution where there is broadband internet service. The 5200 can be used for retrofits on existing alarm systems, takeovers and new installations.
The 5200 converts the dialer output of an alarm system to an IP signal that can be transmitted securely over the internet to an Uplink server. A connection is then made to the central station to deliver the alarm signal. The 5200 supports two-way voice sessions as well as remote programming for most systems. Installation is fast and easy. Using the provided cables, the 5200 communicator is hardwired between alarm dialer and internet service.
*Use the Model 5300 Wi-Fi adapter for installations where a wireless connection to the Internet router is desired.
Product Features:
- Easy to install; uses transformer (provided) or other 12V source.
- The 5200 communicator is hardwired between alarm dialer and internet service.
- Includes RJ11 dialer cable and CAT5 eithernet cable.
- Most installations use default settings.
- Uses phone number and account number from dealer website for easier takeovers.
- Primary Full alarm/event reporting over the Internet.
- Supports systems using Contact ID. Works with GeoArm central station.
- Easy to Upload/download for remote programming.
- Central station notifications for loss of internet connection.
- No panel reprogramming is necessary.
Uplink a Trusted Partner:
The Uplink 5200 and 5300 is a member of the Uplink family of wireless alarm communicators. Our products deliver the unique combination of reliable technology and superior value that has made Uplink the security industry’s most trusted source for alarm communicators since 1996. GSM or CDMA protocols, primary or back-up applications, summary or full data reporting; there is an Uplink wireless alarm communicator for virtually any security system on the market today. With hundreds of thousands of installed communicators throughout the United States and Canada, Uplink delivers on its promise as the security dealer’s trusted partner. Plus, Uplink wireless communicators are backed by the unique combination of the proprietary ISO-27001 certified network service offering and a dealer web management tool.Uplink 5200 Product Documents:
• Data Sheet for Uplink 5200 and 5300 Alarm Communicators
• Installation/User Guide for Uplink 5200 Alarm Communicator
Uplink 5200 Product Specifications:
Product Height: 4.5"
Product Width: 3.0"
Product Depth: 1.0"
Installation: Requires PC to enter WiFi password. Software included. Not Mac compatible.
Alarm System Interface: Contact ID only, RJ11 cable provided
Internet: RJ45, Cable provided, Connects to routers with Dynamic IP addressing (DHCP), Configurable for Static IP address environments.
Central Station Digital: To a dial-up or Internet Receiver
Two-Way Voice : Dial-up only
Power Requirements: 12V DC from transformer or panel (270 mA)
Power Requirements for Power Supply: 12V DC, 0.5A, UL listed transformer (included)
Status Reporting: LED's for Power, Internet (WAN), Panel (PHONE1), Central Station notification of Internet outages
Remote Panel Programming: Supports Upload/Download of most panels over dial-up
