IT-230 - DSC 2-Way RS-422 Interface Module (for PowerSeries Panels and C24-HUB)

IT-230 - DSC 2-Way RS-422 Interface Module (for PowerSeries Panels and C24-HUB)
IT-230 - DSC 2-Way RS-422 Interface Module (for PowerSeries Panels and C24-HUB)
Item# IT-230

Please Note: The DSC IT-230 two-way RS-422 interface module has been discontinued without replacement.

DSC IT-230 Product Description:

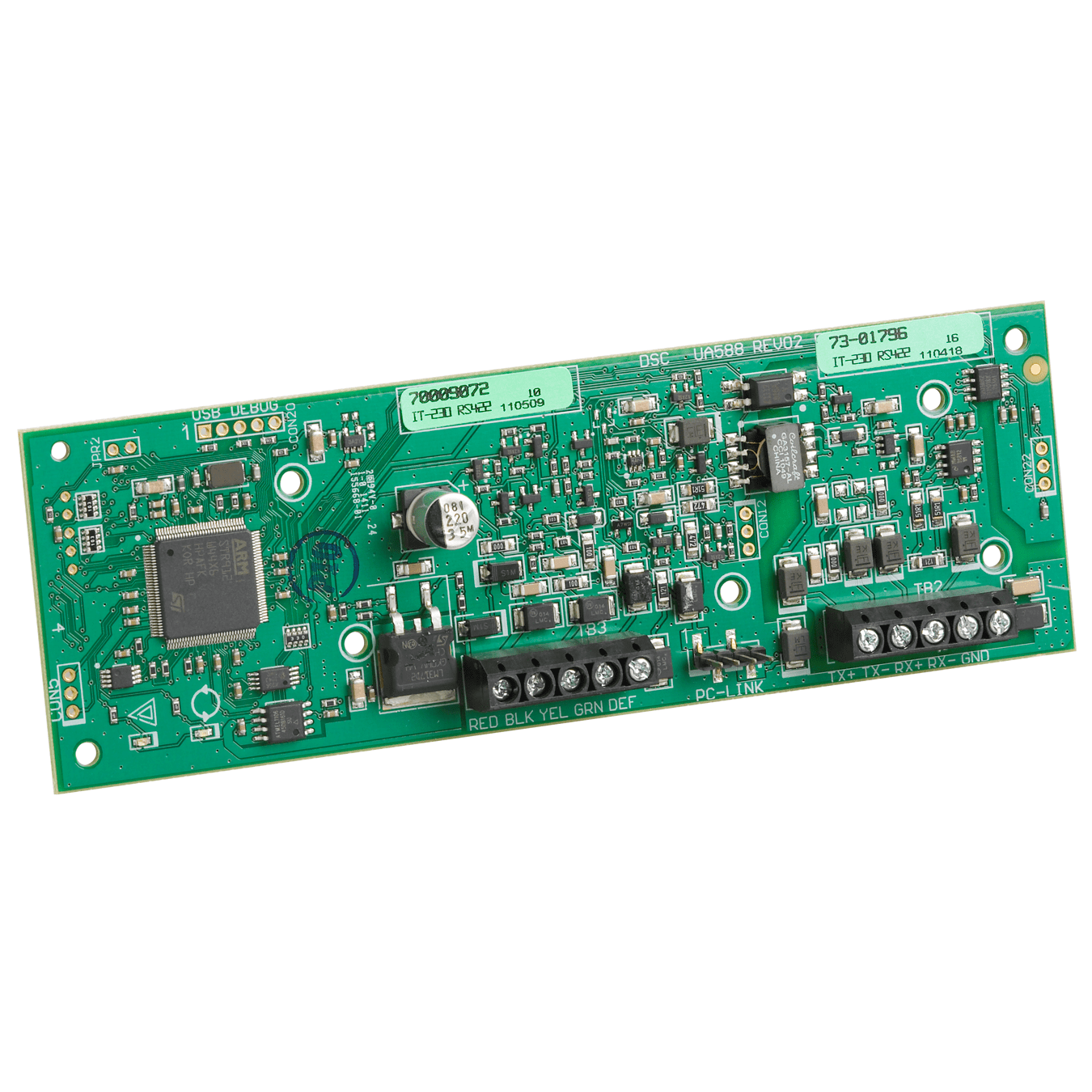

The DSC IT-230 is an RS-422 interface module that allows two-way message transfer between DSC PowerSeries PC1616/PC1832/PC1864 control panels and the C24-HUB. The link speed is 115.2 KB and is programmable by the installer.

The C24-HUB is an interface device which connects to security panels, IP cameras, sensors, Z-wave based home automation devices, etc. to deliver a host of advanced functionality. Lifestyle events are defined as "non alarm" events. Life-safety events are defined as "alarm" events.

The input voltage to the IT-230 Interface can be drawn from the Underwriters Laboratories/Underwriters Laboratories Canada (UL/ULC) listed control panel or provided by an external UL/ULC listed power supply rated for the application (external power-limited source). Please note, the power supply must be Class II, Power Limited.

The IT-230 interface output circuits are power limited. Do not route any wiring over the circuit board. Maintain at least 24.4mm (1in) separation between circuit board and wiring. A minimum of 7mm (1/4in) separation must be maintained at all points between non-power limited wiring and power limited wiring.

Product Features:

  • Full event reporting to central station and C24 Interactive, via RS-422 to C24-HUB
  • Programmable Labels
  • RS-422 balanced line communication to external C24-HUB up to 1,000 ft. (305 m)
  • 4-wire keybus and included PC-LINK header hookup
  • Buffers 1,000 date and time stamped Life Style events to C24-HUB as First In First Out (FIFO) messages
  • Compatible with leading-edge interactive solutions supported by DSC
  • Compatible with PowerSeries panels v4.5 and higher

DSC IT-230 Product Specifications:


  • Input Voltage: 11.1-12.6 VDC
  • Standby Current: 140mA @ 12 VDC
  • Operating Environment: 32°F to 120°F (-10° to 55°C)
  • Relative Humidity: 5 to 93% non-condensing
  • Board Dimensions (mm): 150 × 50 × 15
  • Weight (grams): 45

DSC IT-230 Product Compatibility:


  • PowerSeries PC1616 Version 4.5+
  • PowerSeries PC1832 Version 4.5+
  • PowerSeries PC1864 Version 4.5+
Q & A's :
