HS2TCHPBLK - DSC TouchScreen Black Alarm Keypad with PowerG Transceiver Prox Support (for DSC PowerSeries Neo Control Panels)
DSC HS2TCHPBLK Product Description:

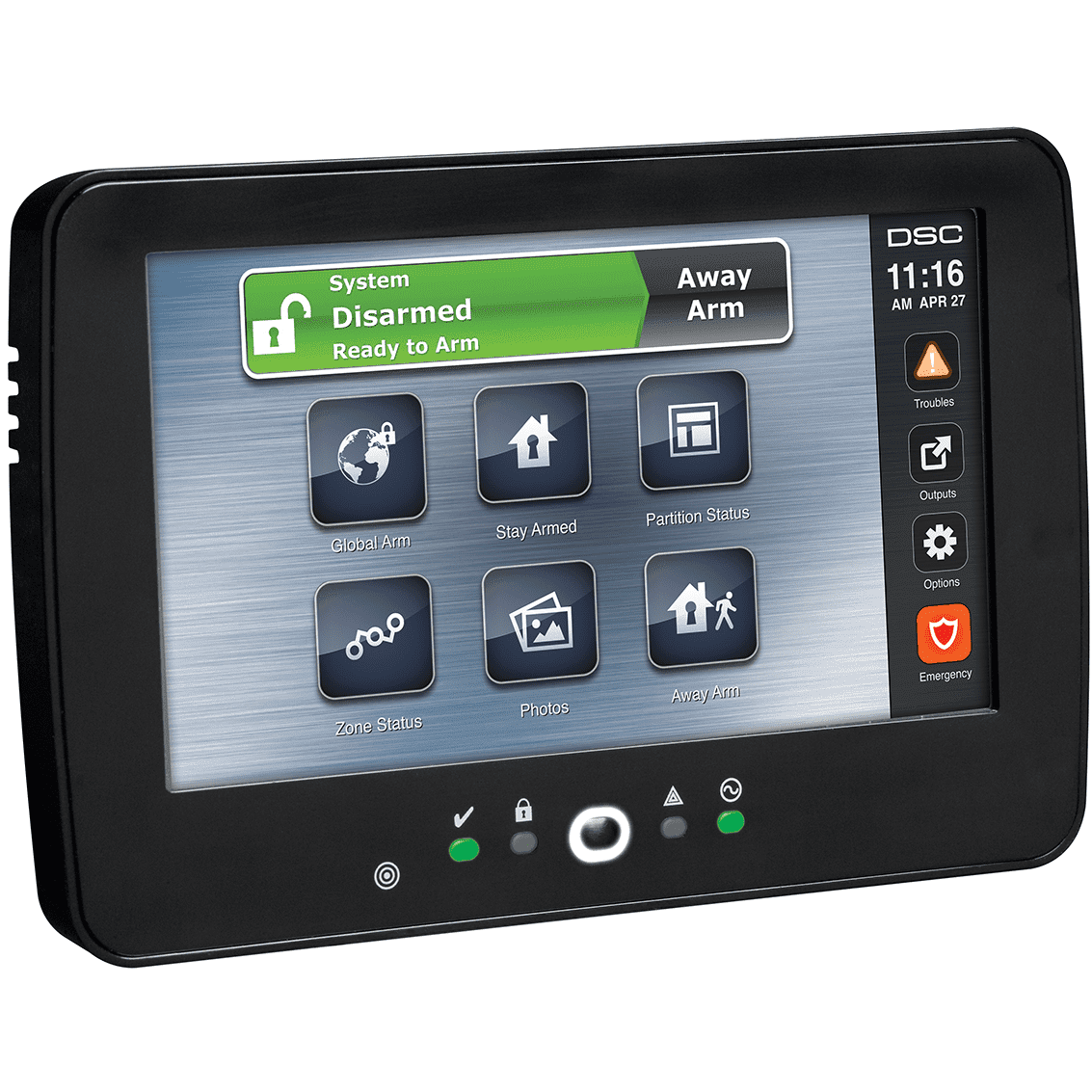

The DSC HS2TCHPBLK is a 7" touchscreen hardwired alarm keypad with proximity support for DSC PowerSeries Neo security systems up to 128 zones. The HS2TCHPBLK touchscreen keypad is easy to install and simple to program with a user-friendly interface packaged in a low-profile black case that easily blends into any decor.
The HS2TCHPBLK keypad has been designed with the user and installer in mind. For the user, menu driven, intuitive screens with large buttons make programming very easy to configure desired options. For example, to access the Fire, Medical, Panic keys, users just press the EMERGENCY button on the sidebar. LED status lights on the bottom of the frame provide a quick visual check on the security system. Programming of labels is made simple through the 'QWERTY' keypad. The installer will also have the ability to do installer programming from virtual keypad, as well directly through the HS2TCHPBLK keypad.

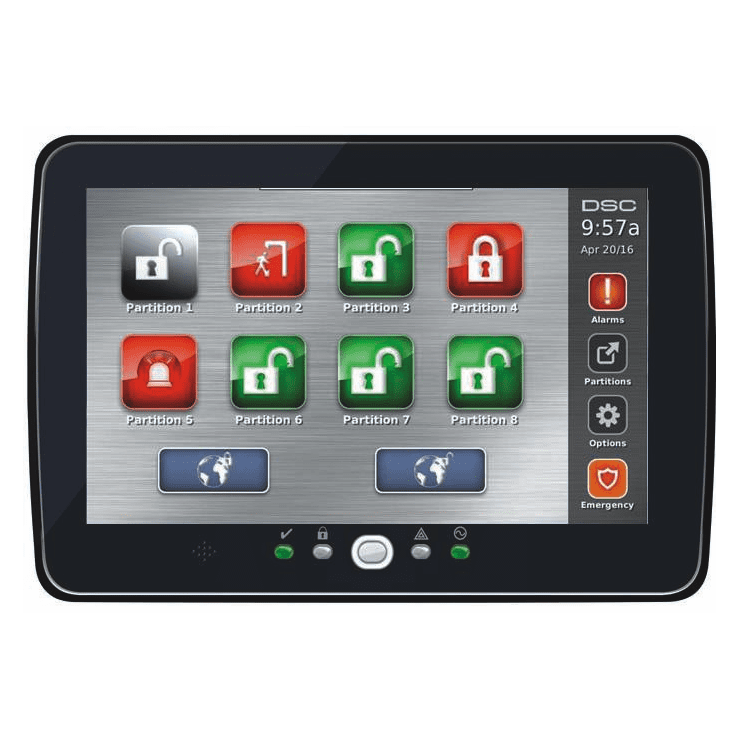

Building from the default or optional displays, the installer can quickly configure five of the graphical icons from over 10 options, depending on the user's needs. With up to 8 partitions available, the HS2TCHPBLK keypad offers the benefits of a multi-partition control panel without changing the control panel and lets each partition zone act independently from the rest of the system.
The display can be easily customized for the user. For example if the user doesn't want to see partitions but wants to turn the chimes on and off, simply hide/display the appropriate icons. The clutter-free home screen can be easily modified later by the installer through password-protected setting menus.
The background of the home screen can be easily customized by the installer to display company logos, contact information, pictures, etc. The integrated digital picture frame gives homeowners the flexibility to display photos as a single photo or a timed slideshow or default background screen. Just insert an updated standard SD card into the SD slot and follow the onscreen prompts, similar to other "off-the-shelf" digital picture frames.
Product Features:
- PowerG robust industry leading commercial grade wireless technology
- Intuitive menu-driven interface for the user
- Responsive, high-resolution 7" (177.8 mm) full color touchscreen
- Configurable home screen
- Up to 16 keypads per system
- Up to 8 partitions
- Connects to control panel via 4-wire Keybus
- Ready (Green LED), Armed (Red LED), Trouble (Yellow LED), AC (Green LED)
- Wall mount tamper
- 5 programmable function keys
- Built-in and easy-to-update digital picture frame using integrated SD card slot
- Clean, low-profile case in white color blends into any décor
- Quick-view LED status indicators (Ready, Armed, Trouble and AC Power)
- Authorized users can easily customize home screen to display commonly used icons
- Global mode - Simplified partition management
- Simplified user code programming - able to scroll or type the user number up to 1000 users
- PGM outputs - able to program custom labels and see them on screen
- Screen saver mode - able to select from clock, photo, blank or OFF mode
- Displays time and date
- Interactive Menu ready, I/O termina
- Local firmware update using SD card
- Prox support (using MPT prox tags)
- Available languages: English, French, Spanish, Portuguese
- Backed by DSC's 1-year limited manufacturer's warranty
DSC HS2TCHPBLK Product Specifications:
- Dimensions (L x W x D): 8.5" x 5.1" x 0.8" in (127.9 mm x 195 mm x 20.35 mm)
- Horizontal Viewing Angle: 70°
- Vertical Viewing Angle: 50° (top) and 70° (bottom)
- Optimal Viewing Quality (Resolution): 800 x 480
- Input Voltage: 12 VDC
- Brightness: 280 cd/m2
- Current Draw: 100 mA standby (screen off)/200 mA activated or alarm (reg. power mode)/300 mA activated or alarm (extra power mode
- Voltage Rating: 7Vdc to 14Vdc nominal
- Plastic Enclosure Protection Degree: IP30, IK04 (TouchScreen excluded)
- Distance Between Keypad and Control Panel: 305 m (1000 ft) (max.); corbus distance in extra power mode: 33.5 m (110 ft)
- Operating Temperature: 32°F to 120°F (0°C to 49°C)
- Humidity: Up to max. 93% RH, non-condensing
- SD Card Slot: Holds any standard Secure Digital (SD) card (32 x 24 x 2.1 mm) containing photos. If necessary, the SD card can be formatted to file system FAT16 or 32 using a PC. The maximum size SD card supported is 32GB
- Wiring: Standard four-wire connection
- Display Language: versions include: English, French, Spanish, Portuguese
- Color: Black
- Compatibility: PowerSeries Neo v1.11 +
- Approvals: FCC/IC, UL/ULC, CE, C-tick
DSC HS2TCHPBLK Product Documents:
• DSC HS2TCHPBLK PowerG Touchscreen with Prox Support - Datasheet
• DSC HS2TCHPBLK PowerG Touchscreen with Prox Support - Installation/Operation Guide
DSC HS2TCHPBLK Product Includes:
- One keypad
- Five mounting screws and five anchors for wall-mounting
- One tamper switch (required for UL commercial burglary listed installations)
- Installation instructions and user manual
DSC HS2TCHPBLK Product Compatibility:
- DSC PowerSeries HS2016 Neo Control Panels v1.11 +
- DSC PowerSeries HS2032 Neo Control Panels v1.11 +
- DSC PowerSeries HS2064 Neo Control Panels v1.11 +
- DSC PowerSeries HS2128 Neo Control Panels v1.11 +
