Item# RF-1510-01-1

Please Note: The Interlogix TX-1510-01-1 wireless DesignLine recessed white door/window contact has been discontinued without replacement.

Interlogix TX-1510-01-1 Product Description:

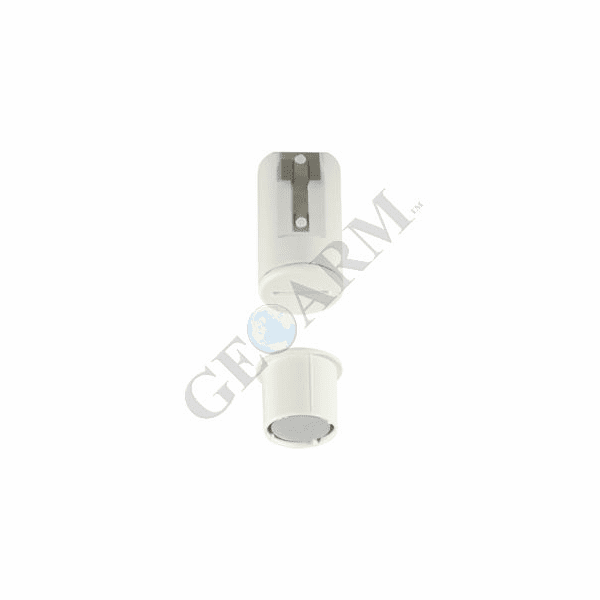

The GE Interlogix TX-1510-01-1 DesignLine recessed door and window alarm contact was the industry's finest supervised, recessed door or window contact. Hidden within the door frame, the DesignLine wireless alarm contact is ideal for use when a discreet sensor is required. The wireless alarm contact uses a replaceable lithium battery that lasts up to five years under normal usage and comes with a standard flush-mount and a flanged top.

Use when you want the alarm contact to be entirely hidden from view or to preserve aesthetics. This wireless alarm contact requires drilling a hole of appropriate dimensions into side of door - tools are required. Make sure the arrows on the magnet and sensor are properly aligned when the door is closed.

Product Features:

  • Compact design ensures effortless installation
  • Hides discreetly in door frame
  • Easily installed - requires only one drill bit
  • Standard flush-mount and flanged tops included
  • Supervisory reports of battery and transmitter condition

Interlogix TX-1510-01-1 Product Specifications:


  • Dimensions (Long x Diameter): Magnet: 1.8 x 1.9 (cm), 0.7 x 0.75 (in)
    Transmitter: 3.92 x 2.21 (cm), 0.7 x 0.87 (in)
  • Weight: 0.45oz (12.6g)
  • Battery: (1) CR2032, 3V coin cell lithium battery (included)
  • Battery Life: 5 years (normal life)
  • Operating Environment: 10° to 120°F (-12° to 49°C)
  • Transmitter Frequency: 319.508MHz (crystal-controlled)
  • Transmitter Frequency Tolerance: ±8kHz
  • Bandwidth: 24kHz
  • Modulation Type: Amplitude Shift Key (ASK)
  • Unique ID Codes: 16 million
  • Peak Field Strength: Typical 30,000 µV/m at 3m
  • Magnetic Sensitivity of Reed Switch: 10 to 20 amp turns
  • Reed Sensitivity: 0.38 (in), 97 (cm) gap
  • Nd-Fe-B, N45: 319.508MHz (crystal-controlled)
  • Supervisory Interval: 64 min
  • Enclosure: PC-540
  • Color: Belgian Grey
  • Approvals: FCC Part 15
