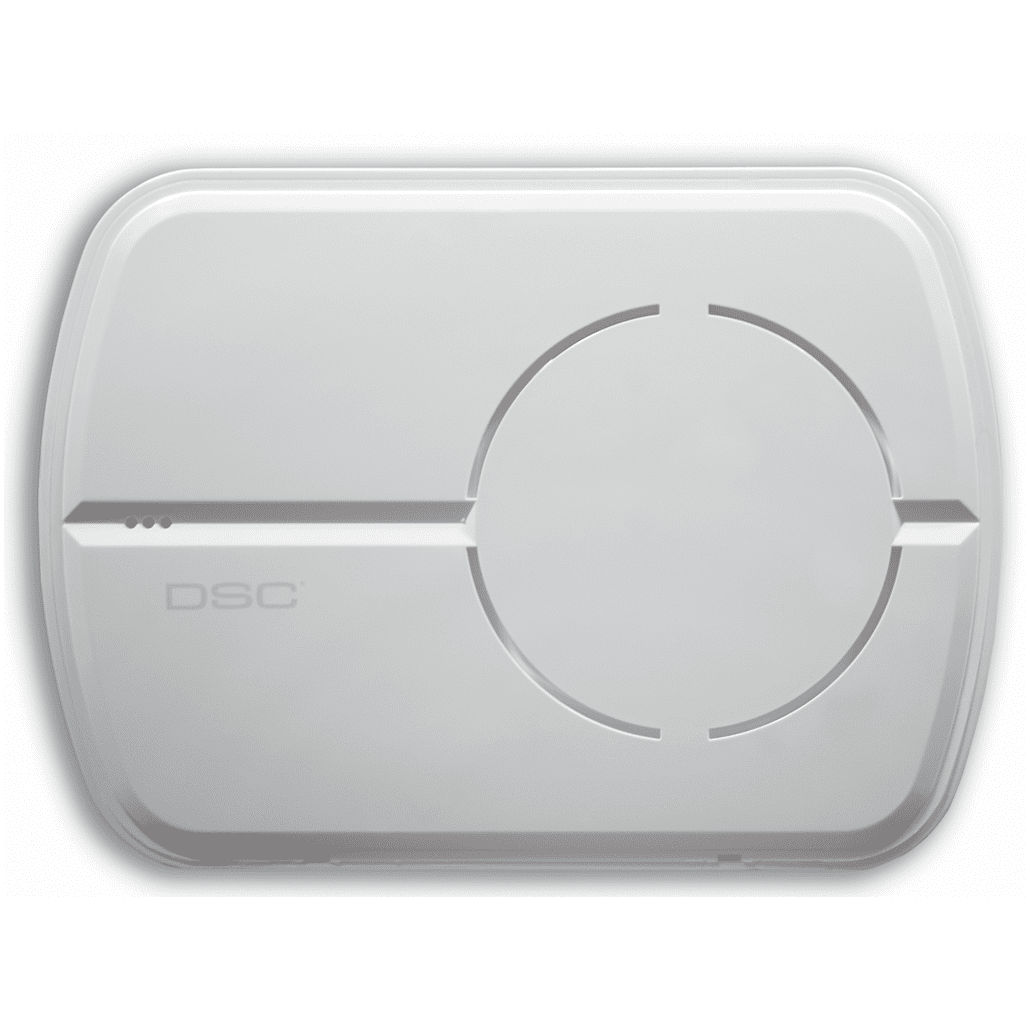

PC5964E - DSC Large Speaker Station
Please Note: The DSC PC5964E large speaker station has been discontinued without replacement.
DSC PC5964E Product Description:
The DSC PC5964E is a large speaker/microphone station intended for use with HSM2955 audio verification module to alert nearby individuals of an alarm initiating event. To install the PC5964E directly wire the audio module into a compatible hardwired panel (e.g. DSC PowerSeries PC1616, PC1832, PC1864...) via a 4-wire connection.
Product Features:
- Equipped with speaker/microphone
- New modern look
- Specifically designed for 2-way voice verification*
- Bell follower functionality (replaces internal sounder on premises)
- 4-wire connection to module
- Surface or single-gang box mount
- Backed by DSC's 1-year limited manufacturer's warranty
The 2-way voice verification service is not supported by GeoArm central monitoring station.
DSC PC5964E Product Specifications:
- Dimensions: 6.3" x 4.6" x 0.5" (160 mm x 117 mm x 12 mm)
- Weight: 245g
- Operating Temperature: 14°F to 131°F (-10°C to 55°C)
- Relative Humidity: Up to 93% non condensing
- Wiring Distance (all audio stations): 152m (500ft)
- Audio Range: 7.62m (25ft)
- Compatible Audio Verification Modules: HSM2955, HSM2955R
