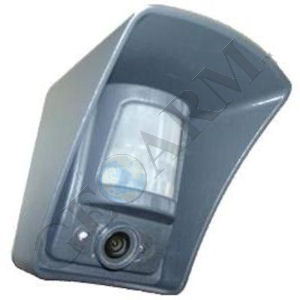

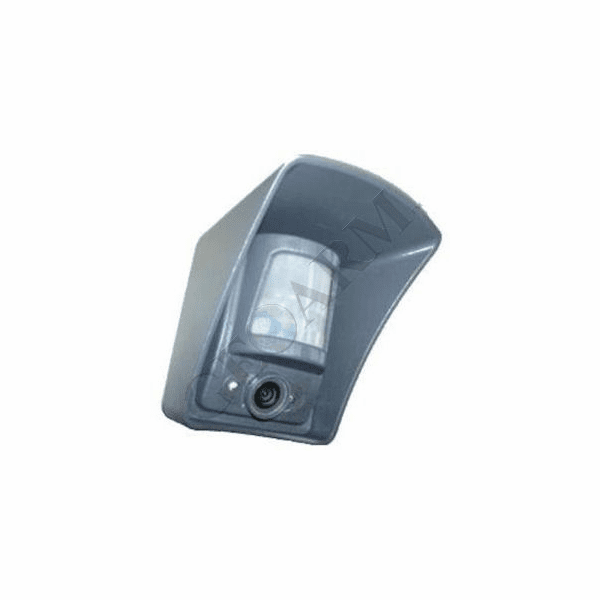

DCV651 - Videofied Wireless Outdoor MotionViewer Camera
Please Note: The Videofied DCV651 wireless outdoor MotionViewer has been discontinued and replaced by the OMV601MB model number.
Videofied DCV651 Product Description:
The Videofied DCV651 is a battery operated, wireless outdoor motion activated camera. The motion activated camera is an integrated wireless motion detector and video camera. When the Videofied security system is armed and the motion activated camera senses movement, it captures a 10-second digital video clip. The alarm and video clip are then sent via the control panel to GeoArm's central alarm monitoring station. Trained central station operators then interpret the video clip and decide if it is an actual alarm event or merely a false alarm. The motion activated camera allows the central station operator to see what set off the alarm. An email with the video clip as an attachment can also be sent to you so that you can see what you've been missing!
A sturdy, weatherproof housing protects the motion activated camera from the elements and makes it a perfect solution for construction sites, marinas, and outdoor lots. Add an adjustable mounting bracket to mount the camera on a wall, ceiling, or drop ceiling tile track. The outdoor camera is powered by (3) AA cell 3.6V lithium batteries, which are included with this item. Typical battery life is two years under normal conditions. The DCV651 comes backed by RSI Video Technologies' 2 year limited warranty.
Videofied DCV651 Product Specifications:
- Dimensions (L x W x D): 101.6 x 88.9 x 114.3 (mm) or 4" x 3.5" x 4.5" (in)
- Material: Polycarbonate UL94
- Weight: 260.8g/9.2oz (without batteries)
- Power Requirements: (3) 3.6V Batteries
- Battery Type: Lithium LS14500
- Battery Life: Up to 2 Years
- RF Technology: S²View©
- Radio Type: Spread Spectrum Bidirectional RF
- Operating Frequency: 868/915/920 MHz
- Transmission security: AES encryption algorithm
- Supervision: Polled Signal Every 8 Minutes
- Antenna: Integrated
- Tamper Detection: Cover Tampered
- Camera Sensor Type: CMOS Black and White
- Camera Resolution: 320 x 240 Pixels
- Camera Sensitivity: 0.2 Lux
- Camera Lens: Wide Angle 85°
- Camera Response: Less than 100 milliseconds after PIR Detection
- Video Sequence in Intrusion: 5 Frames/Second for 10 seconds
- Night Illumination: 2 Infrared LED
- Night Illumination Switching: Automatic
- Night Illumination Distance: 8m/26ft.
- Motion Detector Technology: Passive Infrared DSP
- Motion Detector Type: Dual Element
- Motion Lens: Fresnel
- Motion Detection Angle: 90°
- Motion Detection Distance: 40ft./12m
- Motion Detection Pattern (24 Facets): (9) Main-12m/40ft., (8) Intermediate-8m/26ft., (5) Short-4m/13ft., (2) Creep Zones-1.2m/4ft.
- Operating Temperature: -30° - 60°C (-20° - 140°F)
- Maximum Relative Humidity: 95%, Non-Condensing
- Installation/Mounting (Unit/Base): Has a single thread for Gimble Mount (sold separate)
- Mounting Height: 2.8 to 3m (9 to 9.5ft.)
- Approvals: FCC (DCV651)
