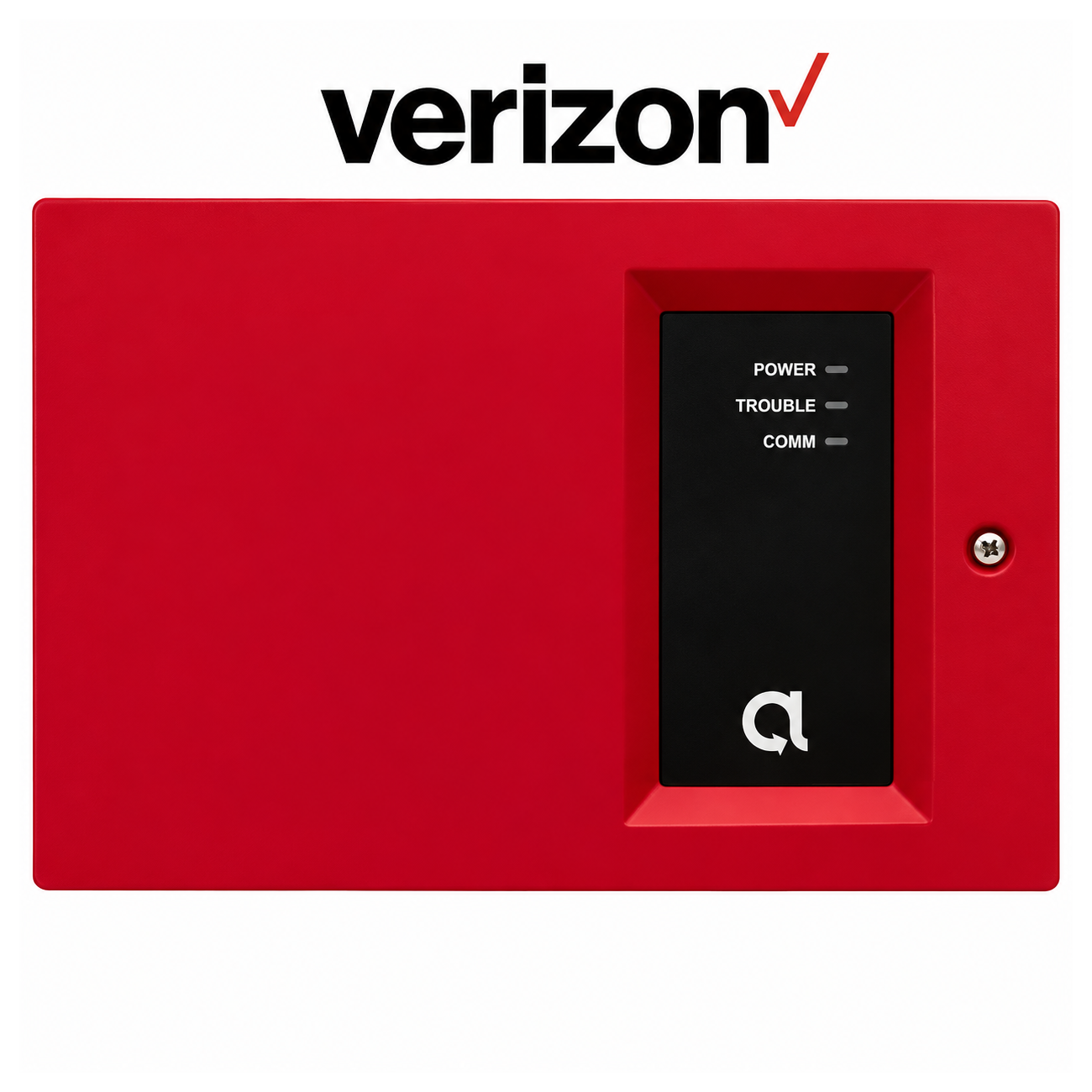

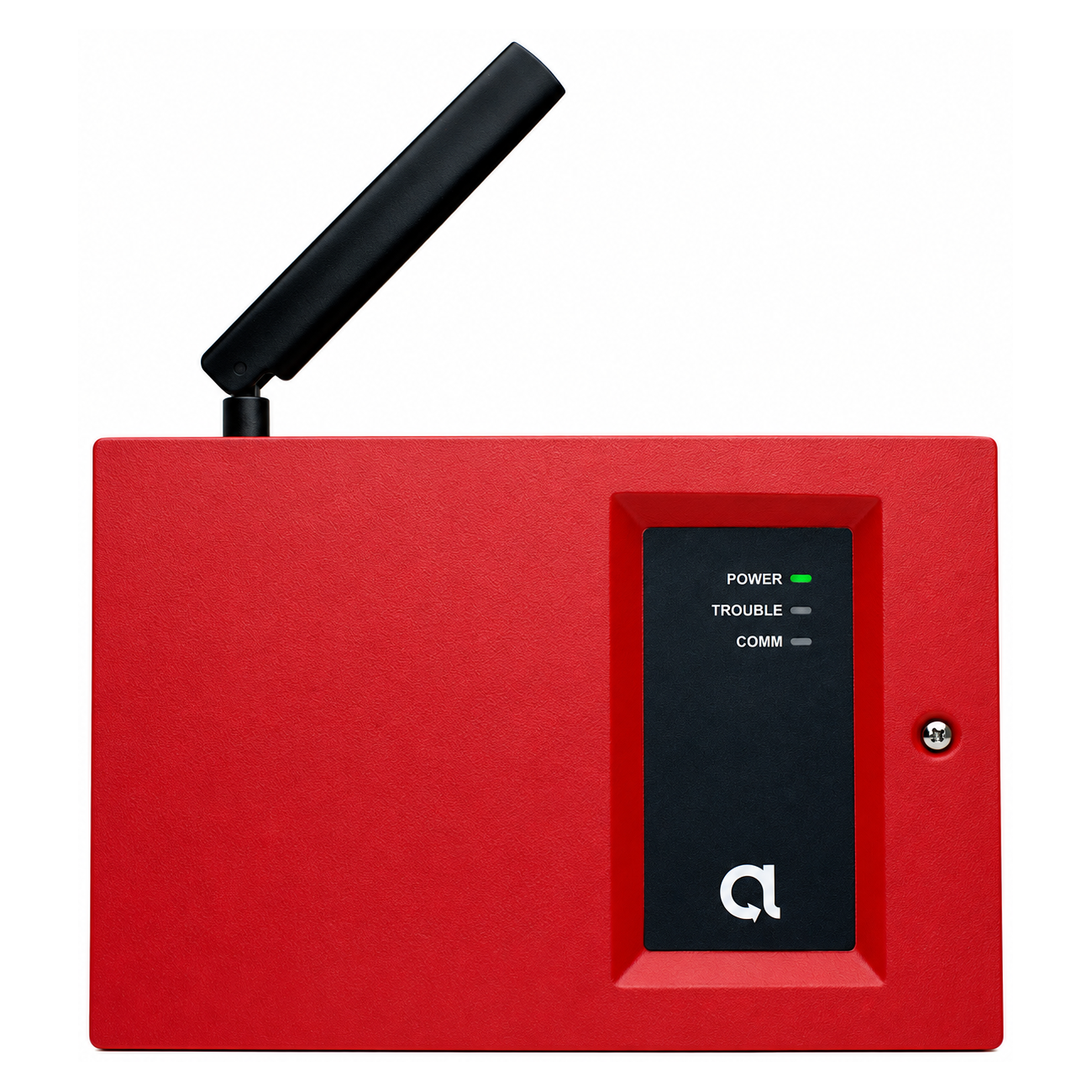

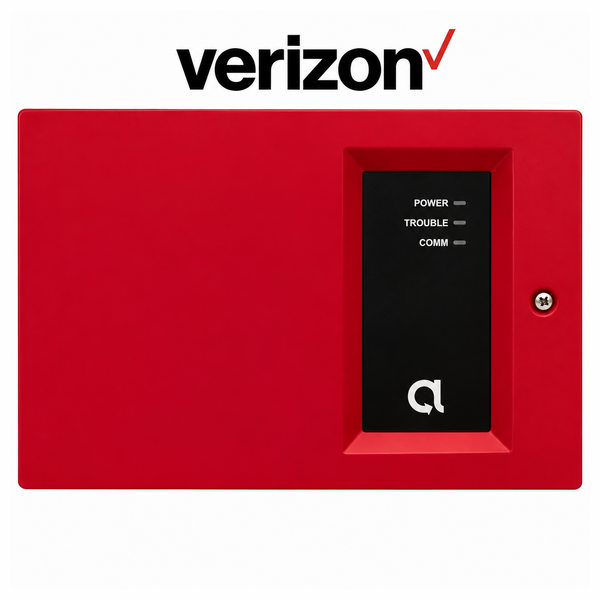

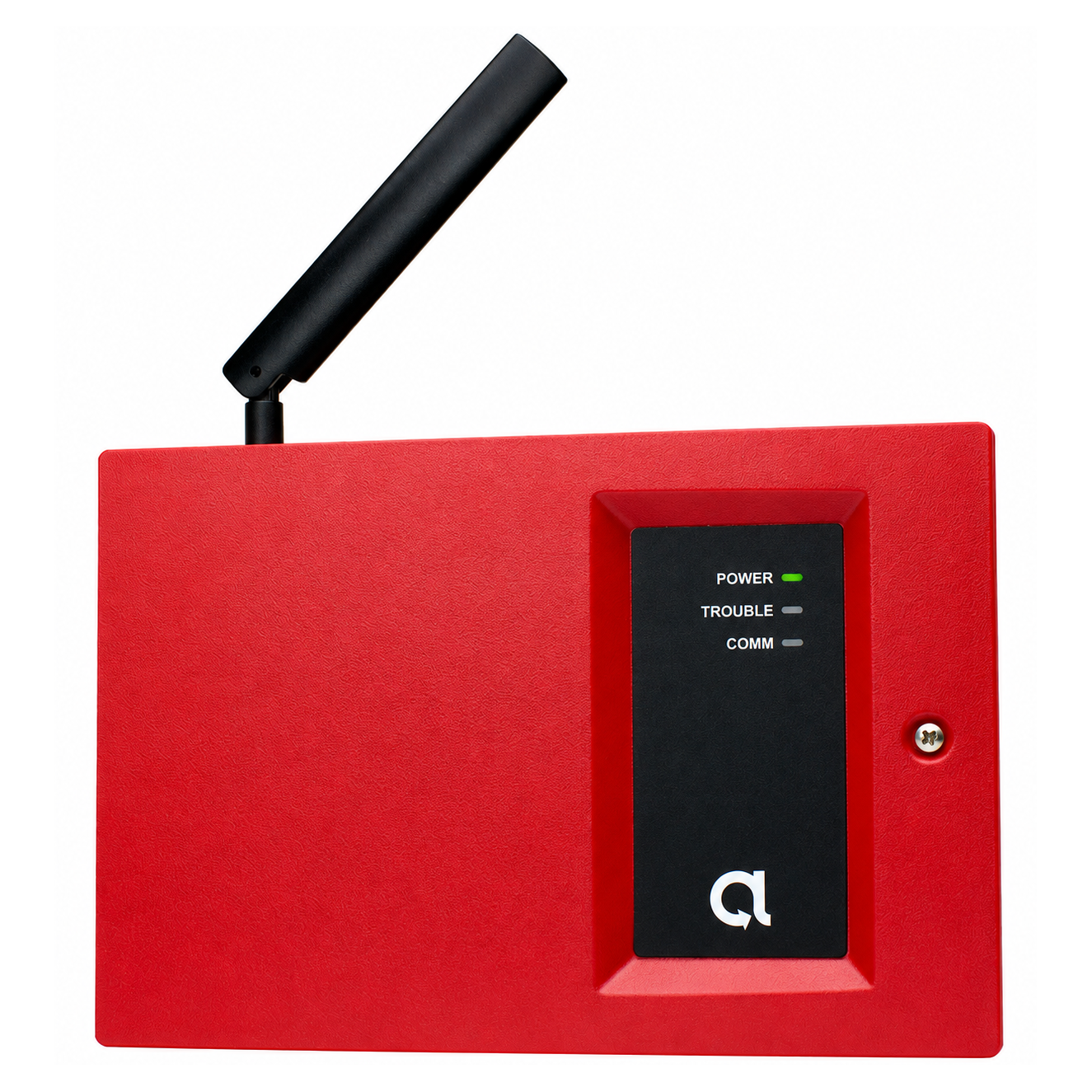

BAT-FIRE-VZ - Alula Commercial Fire Dual-Path IP/Cellular Verizon 5G LTE-M Alarm Communicator (for Universal Contact ID Control Panels)
Alula BAT-FIRE-VZ Product Description:
The Alula BAT-FIRE-VZ is a universal dual-path internet/cellular Verizon 5G LTE-M commercial fire alarm communicator. The BAT-FIRE-VZ communicator connects to an intrusion or fire alarm control panel (FACP) and provides central station alarm reporting.
The BAT-FIRE-VZ can be configured to provide dual-path connectivity using Ethernet/broadband and cell or single-path connectivity using either Ethernet/broadband or cell to Bosch Conettix D6100IPv6 receivers at the central station. The BAT-FIRE-VZ allows system integrators to save money, maximize install flexibility and skip the 4G cellular sunset.
It provides two PSTN interfaces for the FACP/burg panel's DACT phone line connections. The BAT-Fire's DACT phone interface connection provides phone line voltage, dial tone, ringback tone and all required CID protocol signaling. The BAT-FIRE-VZ receives CID events from the FACP/burg panel's DACT and then relays the CID events to the central station receiver.
The BAT-FIRE-VZ provides inputs that can be used to monitor an FACP's alarm, AC fail, and trouble points (dry contact outputs). In this topology BAT-Fire inputs will be connected to the FACP points (dry contact outputs). The communicator will continually monitor the state of the FACP points (dry contact outputs). A state change on a BAT-FIRE-VZ monitored FACP point (dry contact output) will be reported to the central station.
Product Features:
- Supports 12V and 24V regulated FACPs/burg panels
- Alarm capture via phone line interface or standard FACP/burg panel points
- Supports Contact ID (CID) reporting format
- Dual Path: Ethernet (primary) with Cellular Verizon 5G LTE-M (backup)
- Sole Path: Ethernet or Cellular Verizon 5G LTE-M
- Platform visibility through AlulaConnect™
- Trouble event detection and reporting
- Four programmable input/output ports
- At-a-glance system status via front-panel LEDs
- UL 864 10th edition commercial fire certification
- ULC-S559 commercial fire certification
- UL 1610 commercial burg certification
- ULC-S304 commercial burg certification (Security Level II installations)
- Remote programming, troubleshooting and managed over-the-air firmware upgrades
- 5-year warranty
Please Note: The Alula BAT-FIRE-VZ fire alarm communicator requires a subscription to Alula monitoring services powered by GeoArm Security. For UL 864 10th edition, this configuration may only be used for panels with one input zone. 9th edition and earlier permitted this method for multiple protection zones.
Alula BAT-FIRE-VZ Product Specifications:
- Housing Dimensions (H x W x D): 8.6" x 5.8" x 2.2" inches (21.8 x 14.6 x 5.5 cm)
- Weight: 13.2 oz (372.9 g)
- Cover Securing Screw: #6 screw (included)
- Mounting Fasteners: #6 screws and wall anchors (included)
- Pilot Hole for Screw into Wood: 1/8 in (3 mm)
- Pilot Hole for Wall Anchor: 3/16 in (4.7 mm)
- Antenna: External (Included)
- Wire Gauge Range: 24-14 AWG
- Operating Temperature: 32°F to 120°F (0°C to 48.9°C)
- Maximum Humidity: 85% non-condensing relative humidity
- Reported Indications: Cover Tamper
- Current Draw: 154mA (Standby) 207mA (Max) @ 12VDC
109mA (Standby) 161mA (Max) @ 24VDC - Input Voltage: 10V-27VDC
- Programmable Ouput Current Maximum: Will shunt up to 75 mA into ground
- Central Station Receivers: Bosch Conettix: D6600 Plus, ITS-D6686-UL, D6100PV6
- Cellular Network: Verizon 5G LTE-M
- Certification Listings: FCC, IC, Verizon, UL 864 10th edition, ULC-S559, UL 1610, ULC-S304
Alula BAT-FIRE-VZ Product Documents:
• Data Sheet for Alula BAT-FIRE-VZ Commercial Fire Dual-Path IP/Cellular Verizon 5G LTE-M Alarm Communicator
• Configuration Guide for Alula BAT-FIRE-VZ Commercial Fire Dual-Path IP/Cellular Verizon 5G LTE-M Alarm Communicator
• Installation Guide for Alula BAT-FIRE-VZ Commercial Fire Dual-Path IP/Cellular Verizon 5G LTE-M Alarm Communicator
Alula BAT-FIRE-VZ Product LED Indicators:
Indications:
- Power: Pulses when power is present
- Trouble: Green - system ok
Yellow - input voltage < 8V, or
-cell connection has failed, or
-Ethernet connection has failed, or
cover is open - Comm: Green - central station receiver(s) all ok
Yellow - central station receiver(s) trouble
Off - all central station receiver(s) have failed - Ethernet: Off - interface not used
Flashing - attempting connection using this interface
On - connected using this interface - Wi-Fi: Unused
- Cellular: Off - cell is not registered
Flashing - last connection test failed
On - connected using this interface
Short blink - connected via Ethernet, last cell connection test successful - Update: Off - firmware update available
Flashing - firmware update is in progress
On - firmware is up to date - Device: Unused
Cellular Signal Strength:
- 0 LED's Lit: Bad
- 1 LED's Lit: Marginal
- 2 LED's Lit: Acceptable
- 3 LED's Lit: Good
- 4 LED's Lit: Best
Report Codes:
- Peripheral Tamper (Cover Tamper): 341 Report Code, 0 Device - Zone/User
- Peripheral Tamper (Cover Tamper): 341 Report Code (0 Device - Zone/User)
- Comm Test Trouble: 350 Report Code (800-803 Device - Zone/User)
- Manual Comm Test: 601 Report Code (800-803 Device - Zone/User)
- Optionally generated point capture event: Programmable (Programmable Zone Number)
Alula BAT-FIRE-VZ Product Compatibility:
• Universal FACP (with Contact ID, dialer-capture, and dialer-less)
