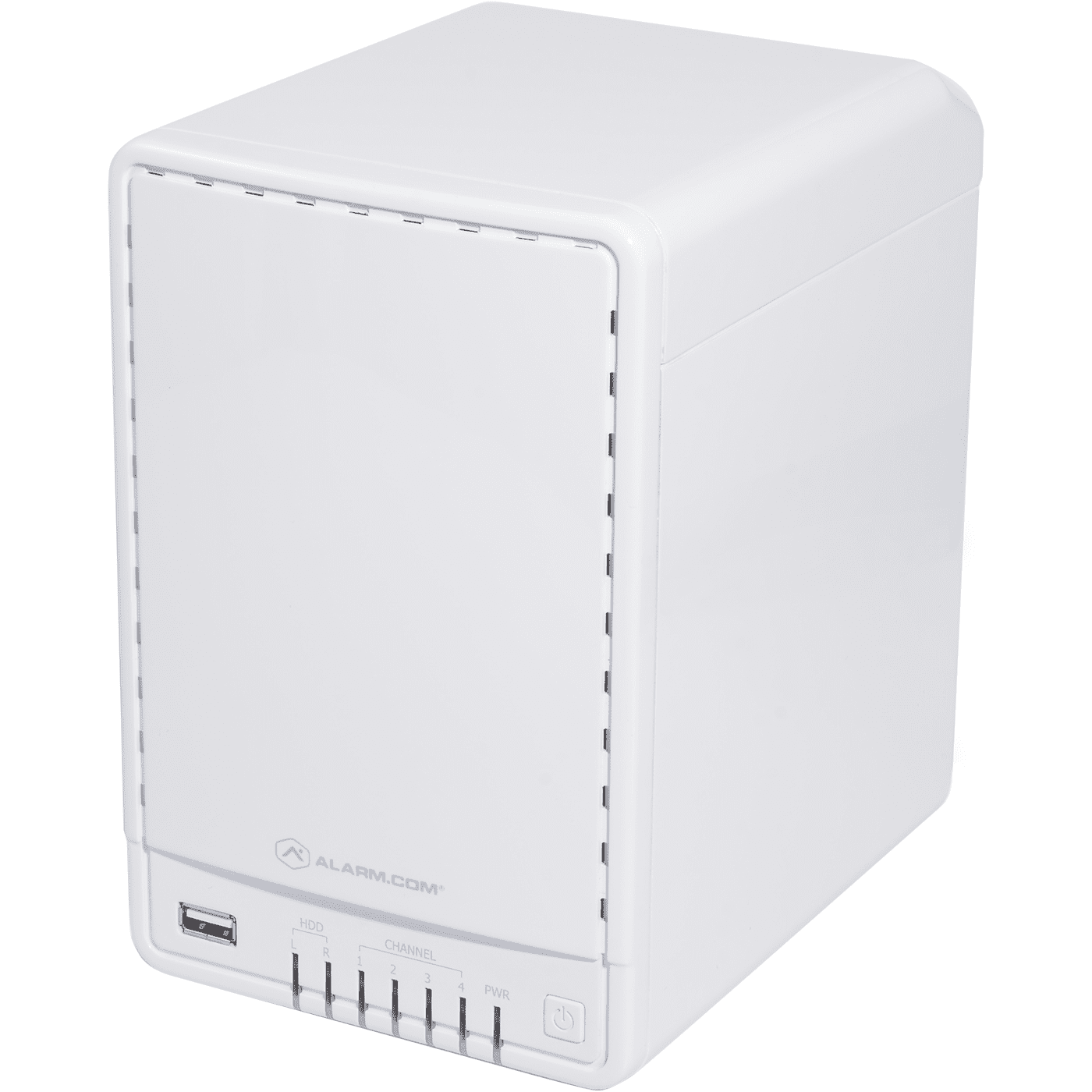

ADC-SVR1002 - Alarm.com Stream Video Recorder (2TB)
Please Note: The Alarm.com ADC-SVR1002 stream video recorder (w/2TB) has been discontinued and replaced by the ADC-CSVR126-16CH model number(s).
Alarm.com ADC-SVR1002 Product Description:
The Alarm.com ADC-SVR1002 is a 2TB (Terra-byte), 4-channel Stream Video Recorder. The ADC-SVR1002 is designed specifically to work with the Alarm.com hosted video service, and it provides a 24x7 gapless, professional surveillance solution. With the ADC-SVR1002 Stream Video Recorder, you can connect up to 4 Alarm.com video cameras for continuous recording. Recorded video can be accessed locally or remotely from a web browser or through our free downloadable Alarm.com mobile apps.
Product Includes:
- Power Adapter
- Ethernet Cord
- Hard drive handles
- Security wrench
- Cord ties
Alarm.com ADC-SVR1002 Product Documents:
• Data Sheet for Alarm.com Stream Video Recorder (ADC-SVR1002)
• Installation Guide for Alarm.com Stream Video Recorder (ADC-SVR1002)
• FAQ's for Alarm.com Stream Video Recorder (ADC-SVR1002)
Alarm.com ADC-SVR1001 Product Specifications:
- Dimensions: 121 x 185.9 x 170.87 (mm)
- Color: White
- Recording Channels: Up to 4-megapixel (1280x800/channels)
- Recording Throughput: 16 Mbps (4Mbps /each channel)
- Transcoded Playback: MPEG4 -->H.264
- Speed Control: 1x, 4x, 8x, 16x, 32x, 64x
- Trans-rate Playback: 30fps-->15fps-->10fps-->5fps
- RAID: Continuous or RAID 1
- Media Processor: 1GHz media processor
- SDRAM: DDRIII 1GB
- Flash Memory: 128MB
- Video Codecs: H.264, MPEG-4, JPEG Encode, Decode, Transcode, Transrate, Resize
- HDD Bay: 2 bays, for 3.5" up to 2 TB each, SATA II (standard)
- FAN: Ball bearing speed control fan. (MTBF at least 50,000 hours)
- Operating Temperature: 32°F -105°F (0°C - +40°C)
- Storage Temperature: -4°F - 140°F (-20°C - +60°C)
- Humidity: 0-100% condensing
