ADC-SVR122-500GB - Alarm.com Residential Home Stream Video Recorder (500GB Gigabytes)
Please Note: The Alarm.com ADC-SVR122-500GB stream video recorder (500GB) has been discontinued and replaced by the ADC-CSVR126-16CH model number(s).

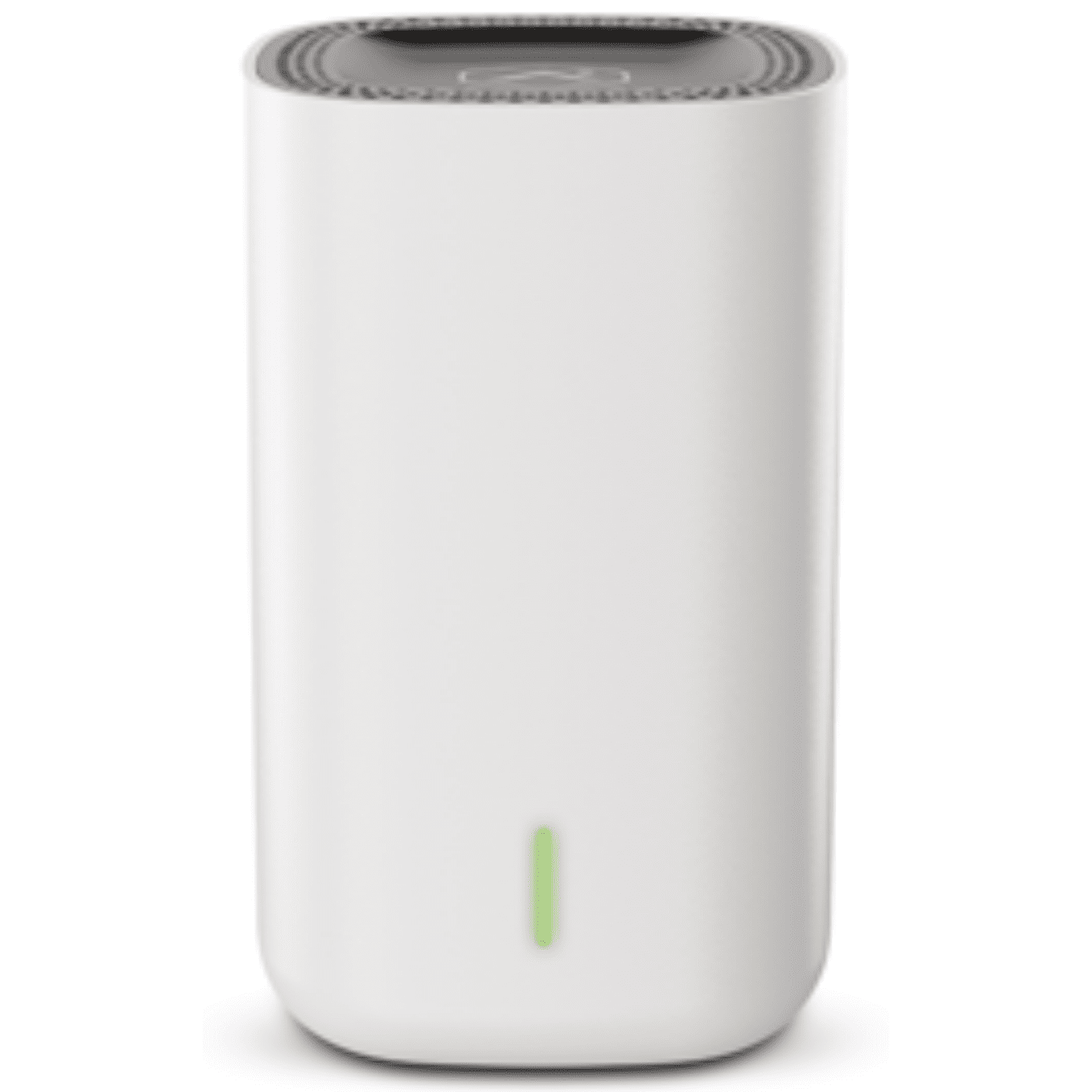

Alarm.com ADC-SVR122-500GB Product Description:
The Alarm.com ADC-SVR122-500GB is a 500GB gigabytes, up to 8-channels, residential home stream video recorder for Alarm.com security cameras. The ADC-SVR122-500GB is designed specifically to work with the Alarm.com hosted video service, and it provides a 24x7 gapless, professional video home surveillance solution. With the ADC-SVR122-500GB stream video recorder, you can connect up to 8 Alarm.com video home security cameras for continuous recording. Recorded video can be accessed locally or remotely from a web browser or through our free downloadable Alarm.com mobile apps.
Product Includes:
- Designed for Home Surveillance
- 500GB Gigabytes Storage
- HDMI and USB Ports for Local Control
- Supports up to 8 Cameras
- Works with the Alarm.com website and app for remote viewing of recordings
Alarm.com ADC-SVR122-500GB Product Documents:
• Data Sheet for Alarm.com Residential Stream Video Recorder (ADC-SVR122-500GB)
• Quick Installation Guide for Alarm.com Residential Stream Video Recorder (ADC-SVR122-500GB)
• Update the Firmware for Alarm.com Residential Stream Video Recorder (ADC-SVR122-500GB)
• Factory Reset for Alarm.com Residential Stream Video Recorder (ADC-SVR122-500GB)
• Play Back Video Locally for Alarm.com Residential Stream Video Recorder (ADC-SVR122-500GB)
Alarm.com ADC-SVR122-500GB Product Specifications:
- Dimensions: 3.5" x 3.5" x 5.8" (88 x 88 x 146.7mm)
- Color: White
- Recording Channels: Up to 8 cameras
- Storage: 500 GB
- Transcoded Playback: MPEG4 -->H.264
- Speed Control: 1x, 4x, 8x, 16x
- HDD Bay: 1 bay
- FAN: Ball bearing speed control fan. (MTBF at least 50,000 hours)
- Ethernet Connection: 10Base-T/100BaseTX (RJ45)
- HDMI and USB Connections: Locally view live and recorded video
- Cooling: Fanless Thermal Heat Sink
- Operating Temperature: 32°F -104°F (0°C - +40°C)
- Storage Temperature: -13°F - 158°F (-25°C - +70°C)
- Operating Humidity: 20-95% RH (non-condensing)
Alarm.com ADC-SVR122-500GB Product Compatibility:
- ADC-V520
- ADC-V520IR
- ADC-V521IR
- ADC-V522IR
- ADC-V620PT
- ADC-V622
- ADC-V720
- ADC-V720W
- ADC-V721W
- ADC-V722W
- ADC-V820
- ADC-V821
- ADC-VC725
- ADC-VC726
- ADC-VC825
- ADC-VC826
- ADC-VS120
- ADC-VS121
- ADC-VS420
Alarm.com ADC-SVR122-500GB LED Guide:
Status LED (on the Front of the SVR):
- Solid Green - Local network and Internet connection
- Flashing Green - Local connection only, no Internet
- Flashing Red (1 sec) - No connection
- Solid Red - Error: Check LEDs on back
- Flashing Green & Red - Factory Reset
SVR Hard Drive (on the Back of the SVR):
- Solid Green - SVR hard drive is operating normally
- Flashing Green - Hard drive is full. Oldest footage is being deleted
- Flashing Red - Hard drive configuration error
Cameras 1-8 (on the Back of the SVR):
- Solid Green - Camera is connected and recording
- Flashing Green - Camera is connected and recording paused
- Flashing Red - Camera is disconnected
