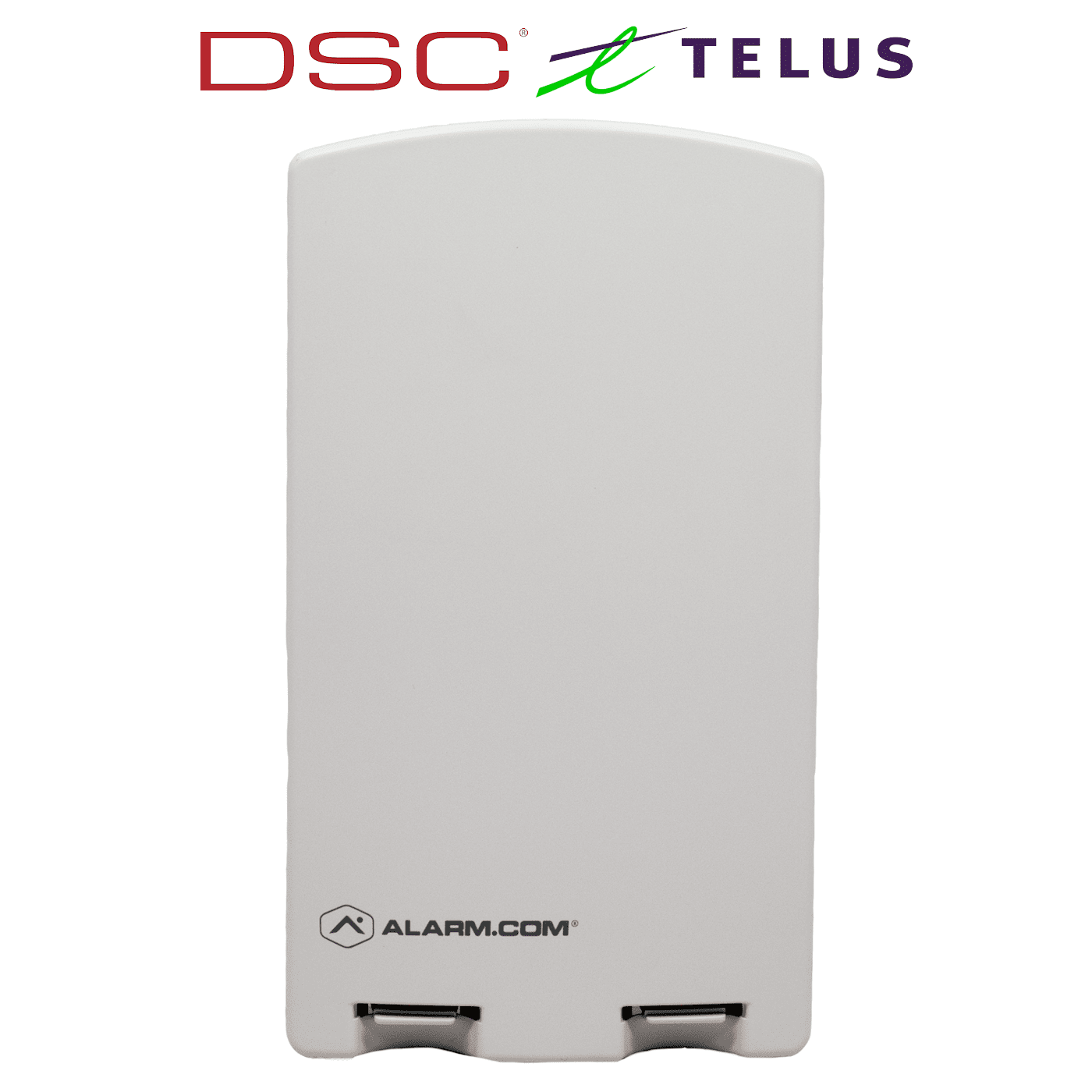

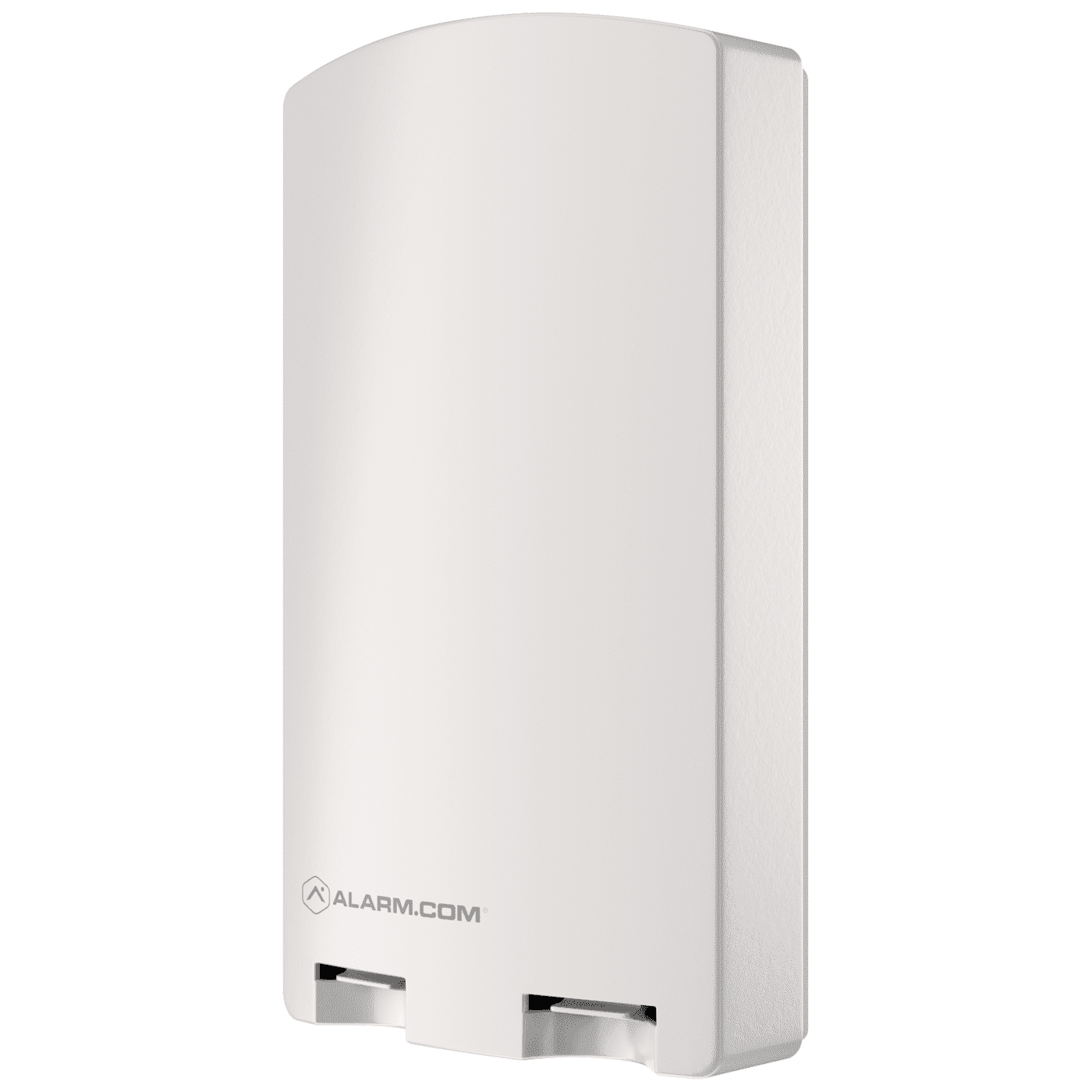

ADC-SEM210-PS-TL - Alarm.com SEM Dual-Path Ethernet/Cellular Telus LTE Canada Alarm Communicator (for DSC PowerSeries Panels)
Please Note: The Alarm.com ADC-SEM210-PS-TL DSC PowerSeries Dual-Path Telus LTE SEM Module has been discontinued without replacement.
Alarm.com ADC-SEM210-PS-TL Product Description:
The Alarm.com ADC-SEM210-PS-TL is a dual-path system enhancement module (SEM) designed to migrate compatible DSC PowerSeries PC1616, PC1832 and PC1864 control panels to Alarm.com's award-winning interactive services. The ADC-SEM210-PS-TL dual-path SEM supports the Telus Canada 4G LTE cellular network and optional broadband ethernet using the ADC-200M-EV-E-DONG ethernet dongle. The multiple paths ensures the longest life cycle with the most secure and reliable service.
The SEM210 enable wireless reporting of alarms and other system events using the LTE wireless (cellular) network and Broadband Ethernet. With the SEM210 you can configure and support installations from any browser or smartphone using Alarm.com's familiar and easy-to-use web and mobile support tools, including the Partner Portal and MobileTech app. And, enable Alarm.com interactive monitoring and alerting for end-users. Lastly, you can integrate Alarm.com's home automation and energy management services with the SEM's built-in Z-Wave Plus capabilities.
Product Features:
- Fast, reliable, and secure wireless signaling
- Cellular 4G Telus Canada LTE primary communication path
- Broadband as an optional secondary communication path
- Remote monitoring and control using the website and app
- Remote panel configurations with Uploader/Downloader, including Add Sensors
- Remote access and management of locally saved user codes
- Home automation and energy management
- Support for Z-Wave Plus devices
- Video monitoring
- No separate power supply needed
- Over the air (OTA) upgrades
- CID and SIA central station signaling
Alarm.com ADC-SEM210-PS-TL Product Documents:
• Data Sheet for Alarm.com System Enhancement Module (ADC-SEM210-PS-TL)
• Installation Guide for Alarm.com System Enhancement Module (ADC-SEM210-PS-TL)
Alarm.com ADC-SEM210-PS-TL Product Specifications:
- Enclosure Dimensions (L x W x D): 7.5 x 4.25 x 1.5 in. (19.05 x 11.43 x 3.81 cm)
- Enclosure Color: White
- Case Material: High-impact, ABS plastic
- Compatibile: DSC PowerSeries PC1616, PC1832 and PC1864 control panels (version 4.2+)
- Not Compatible: POTS. The SEM should be the only communication path for alarm signaling to the GeoArm monitoring station.
- Power Requirements: 13.6 V nominal, 210 mA nominal (continuous) 320 mA maximum (from panel battery)
- Cellular Network: Telus Dual Band 4G LTE
- Panel Interfaces: Three keypad bus connections 12V power and ground to panel battery
- Alarm.com Module Indicators: One module/panel communication status LED, one module power LED, one automation LED, three wireless communication status LEDs
- SEM Circuit Board Indicators: One LAN LED, one processor LED, one COMM fail LED
- Z-Wave Frequency: 908.4 MHz
- Operation temperature: 32° - 120° F (0°C - 49°C)
- Storage temperature: -30° - 140° F (-34°C - 60°C)
- Humidity: 90% relative humidity, non-condensing
Alarm.com ADC-SEM210-PS-TL Product Compatibility:
- DSC PowerSeries PC1616 (Version 4.2+)
- DSC PowerSeries PC1832 (Version 4.2+)
- DSC PowerSeries PC1864 (Version 4.2+)
