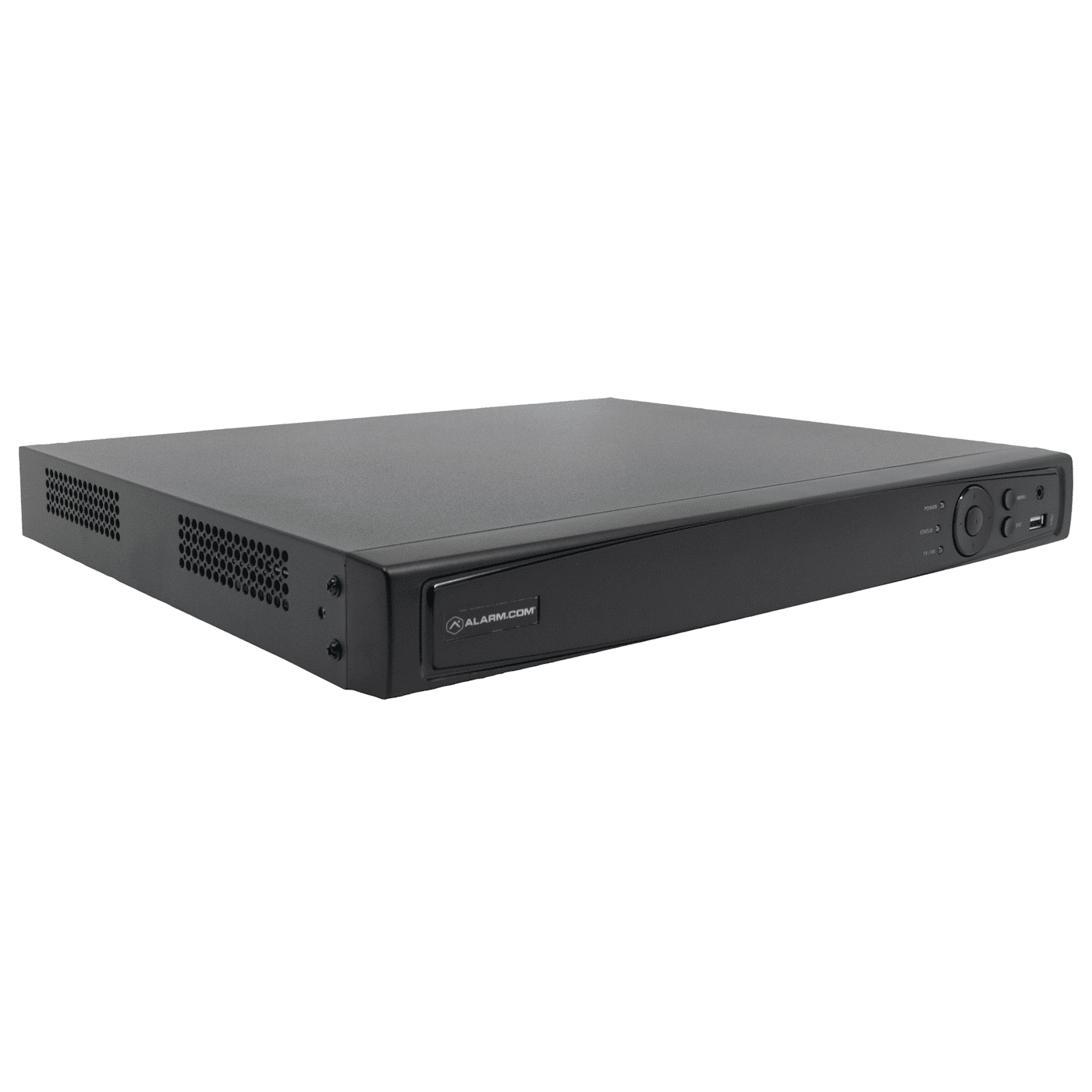

ADC-CSVR126-16CH-2x6TB - Alarm.com 16-Channel 2-HD Bay Commercial Business Stream Video Recorder (2x6=12TB Total Hard Drive)

Please Note: The Alarm.com ADC-CSVR126-16CH-2x6TB commercial business stream video recorder has been discontinued and replaced by the Alarm.com ADC-CSVR2008P-1X12TB ProSeries CSVR.

Description
PDF Documents
Specifications
Compatible
LED Guide

Alarm.com ADC-CSVR126-16CH-2x6TB Product Description:

The Alarm.com ADC-CSVR126-16CH-2x6TB is a 6TB terabytes storage, up to 16-channels, stream video recorder for Alarm.com commercial business security cameras. The ADC-CSVR126-16CH-2x6TB is designed specifically to work with the Alarm.com hosted video service, and it provides a 24x7 gapless, professional commercial-grade video surveillance solution. With the ADC-CSVR126-16CH-2x6TB commercial stream video recorder, you can connect up to 16 Alarm.com video security cameras for continuous recording. Recorded video can be accessed locally or remotely from a web browser or through our free downloadable Alarm.com mobile apps.

Product Includes:

Commercial-Grade Stream Video Recorder SVR
12TB Terabytes Storage
HDMI and USB Ports for Local Control
Supports up to 16 Cameras

Alarm.com ADC-CSVR126-16CH-2x6TB Product Documents:

• Data Sheet for Alarm.com Commercial-Grade Stream Video Recorder (ADC-CSVR126-16CH-2x6TB)
• Quick Start Guide for Alarm.com Commercial-Grade Stream Video Recorder (ADC-CSVR126-16CH-2x6TB)
• Adjust Local Display Settings for Alarm.com Commercial-Grade Stream Video Recorder (ADC-CSVR126-16CH-2x6TB)
• Factory Reset for Alarm.com Commercial-Grade Stream Video Recorder (ADC-CSVR126-16CH-2x6TB)
• Play Back Video Locally for Alarm.com Commercial-Grade Stream Video Recorder (ADC-CSVR126-16CH-2x6TB)

Alarm.com ADC-CSVR126-16CH-2x6TB Product Specifications:

Dimensions: 15.2" x 12.4" x 2.0" (385 x 315 x 52mm)
Color: White
Recording Channels: Up to 16 cameras
Storage: 12 TB
Video Output: 16 channels @ 1080p
Incoming bandwidth: 160 Mbps
Outgoing bandwidth: 256 Mbps
HDMI max output: 4K (3840 x 2160) 60 Hz
VGA max output: Full HD (1920 x 1080) 60 Hz

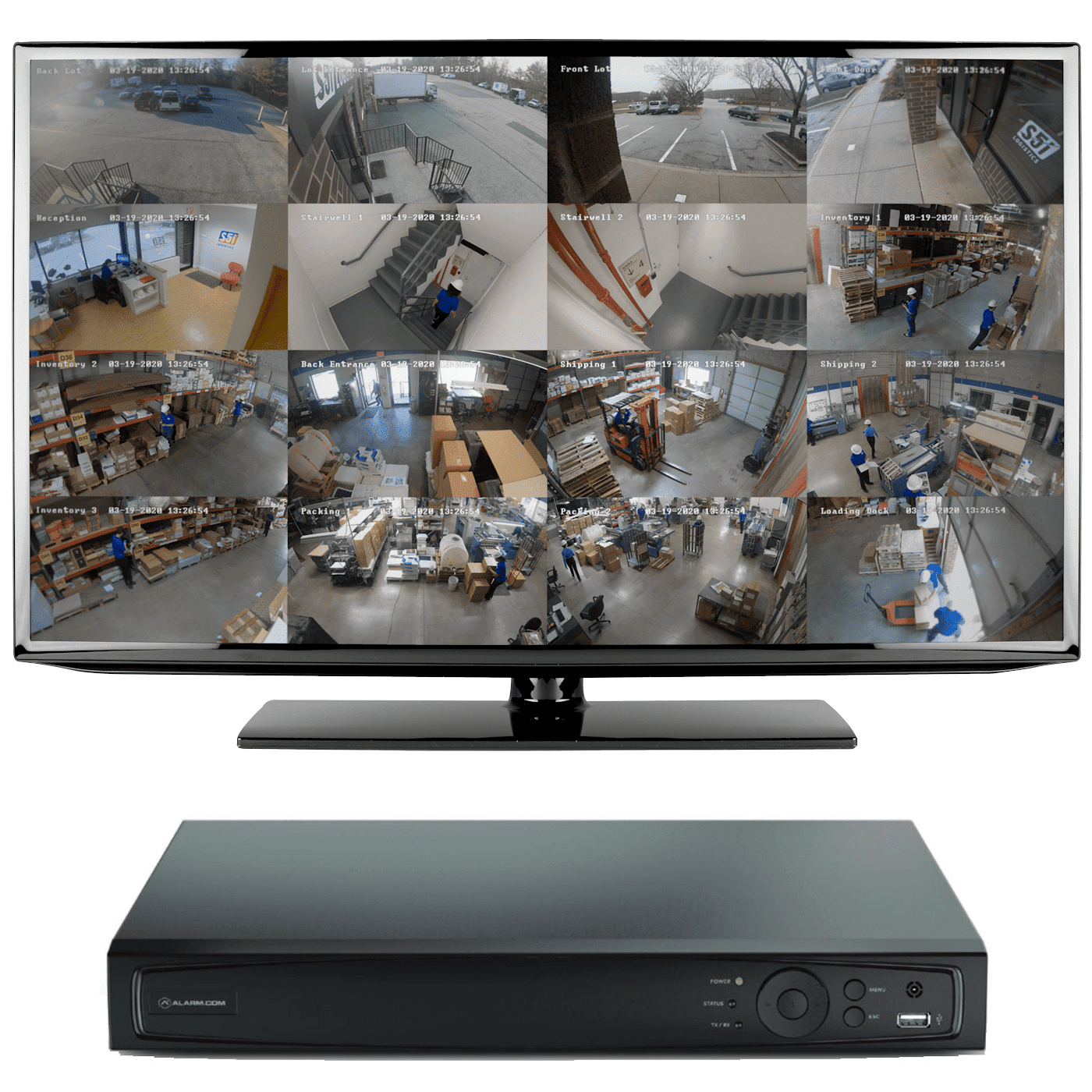

Local display capabilities: Live view, playback, clip export
Speed Control: 1x, 4x, 8x

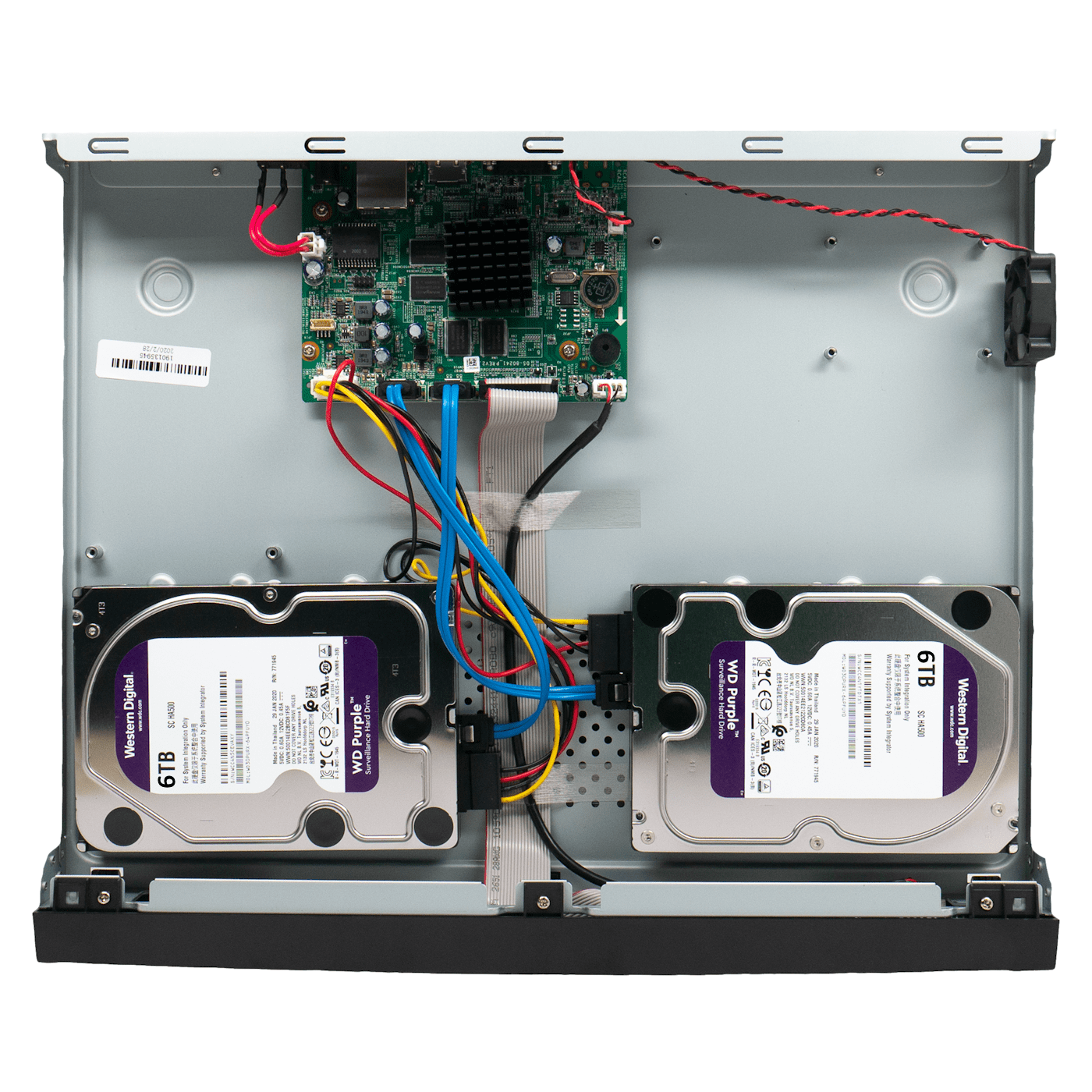

Hard Disk Drive (HDD): 2 SATA interfaces, up to 8 TB per interface

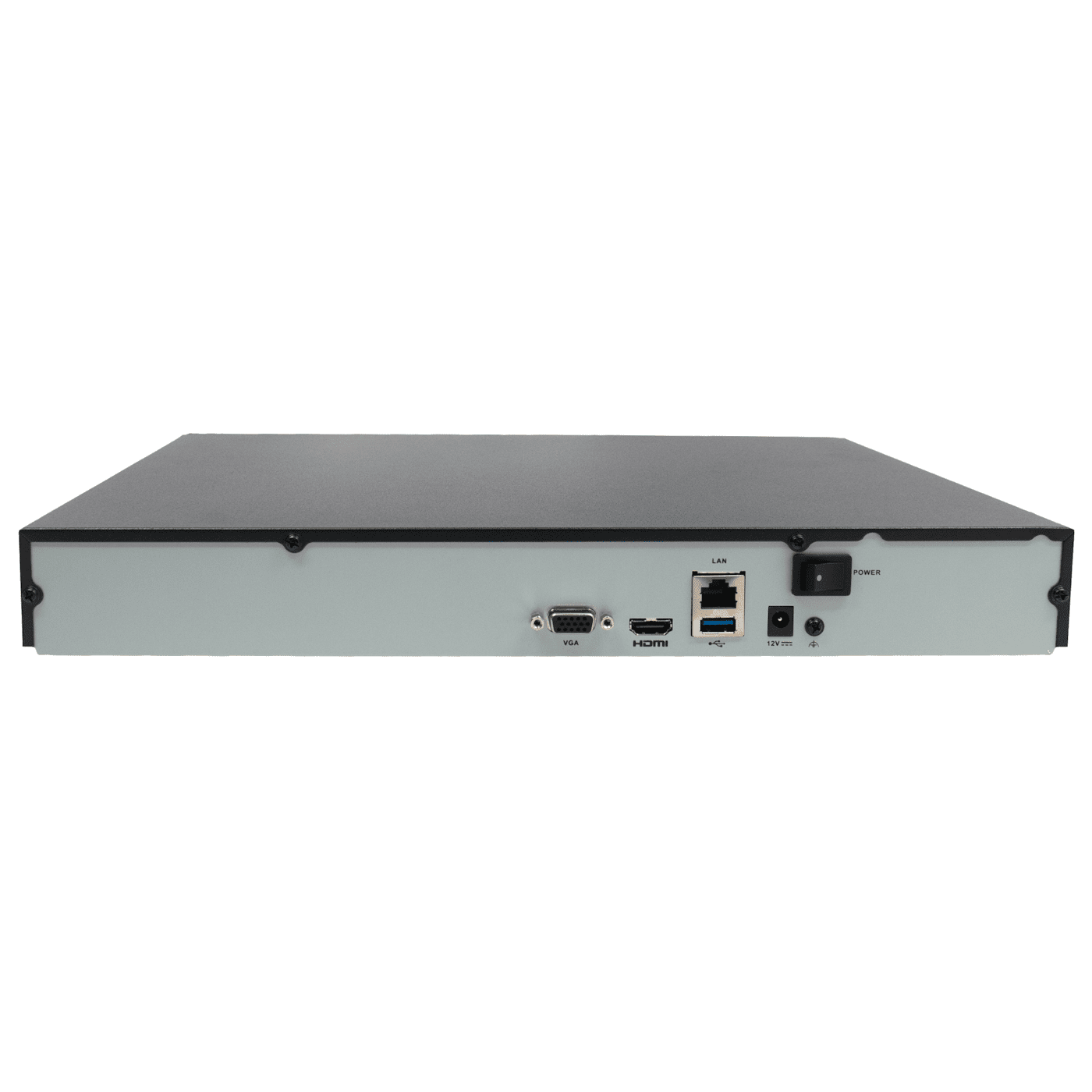

Ethernet Connection: RJ-45 10 / 100 / 1000 Mbps self-adaptive Ethernet interface
USB Interface: 1 x USB 2.0; 1 x USB 3.0
Power Adapter: 12 V DC, 40 W
Operating Temperature: 14°F -131°F (-10°C - +55°C)
Operating Humidity: 10-90% RH (non-condensing)
Weight: <2.2 lbs. (1 kg)
Installation: Rack-mount (1U) compatible
