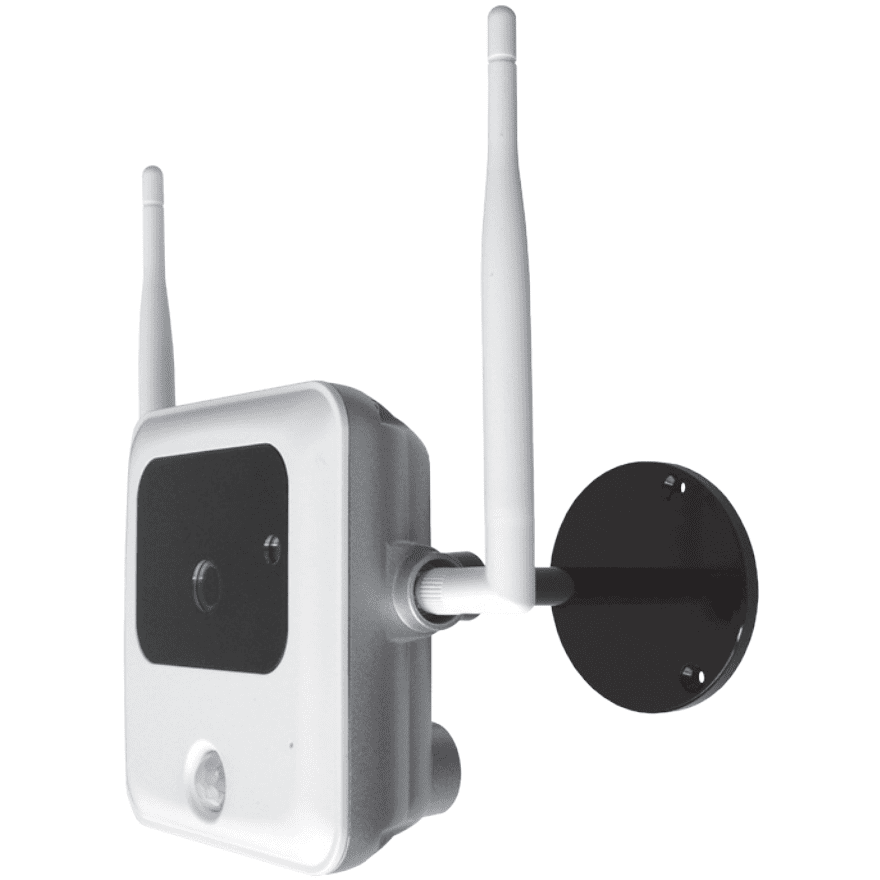

710OD - Uplink Outdoor Security Camera (w/Night Mode)
Please Note: The Uplink 710OD outdoor security camera has been discontinued without replacement.
Uplink 710OD Product Description:
The Uplink 710OD is a outdoor security camera with night mode. The 710OD security camera is waterproof for outdoor installation. The camera automatically switches for day or night vision, with 8 built-in infrared LEDs for enhancing low-light performance and motion detection to trigger video recording.
Product Features:
- Water resistant for outdoor installation
- 802.11n wireless and 10/100 Base-T
- Ethernet modes
- Automatic switching for day or night vision
- Built-in infrared (IR) LEDs for enhancing low light performance
- Motion detection to trigger video recording
Uplink 710OD Product Specifications:
Product Dimensions (w/Mount Only): 4.1" H x 3.7" W x 6.0" D (103 x 94 x 154 mm)
Product Dimensions (w/Mount & Antennas): 7.0" H x 5.3" W x 6.0" D (178 x 134 x 154 mm)
Product Weight: 2 lb. (0.9 kg)
Image Sensor: 1/4" CMOS sensor
Lens: Fixed-focal, aperture F2.0, Diagonal view angle: 66° (horizontal=57.8°, vertical=37.8°)
PIR Sensor Range : 15 ft (5 m)
Live View: QVGA (320x240) resolution, MJPEG compression, 3 frames per second
Video Recording: VGA (640x480) resolution, H.264 compression, 5 frames per second
Alarm & Event Management: Motion detection, PIR sensor
Ethernet: 10/100 Base-T, auto-MDIX
Protocols: IPv4, ICMP, DHCP, UDP, TCP/IP, DNS, NTP, FTP
Wireless Network: IEEE802.11b/g/n, WEP64/128 bit, WPA/WPA2 personal, WPS
Connectors: RJ-45 for Ethernet, DC power jack
Processors and Memory: SoC: ARM9, RAM: 128 MB, Flash: 32 MB
LED and Button: LED: Network (LAN or wireless), Button: Reset
Night Vision: IR LED x 8, Light sensor x 1, auto IR CUT switcher, range: above 5m
Power Supply: 100-240VAC, 50-60Hz (input), 12V, 1A (output)
Power Consumption: 4.8W Max.
Compliance: CE, FCC, UL (power supply)
Operating Temperature: 14° - 122°F (-10° - 50°C)
Operating Relative Humidity: 10% - 85% RH (non-condensing)
Storage Temperature: -4° - 158°F (-20° - 70°C)
Storage Relative Humidity: 0% - 90% RH (non-condensing)
Ingres Protection Rating: IP65
Bronze Video Service: Live View
Silver Video Service: Live view + up to 500MB (Typically 7 Days) of storage
Gold Video Service: Live view + up to 2GB (Typically 30 Days) of storage
Package Contents: Camera, power Supply, extension cord, antenna (x2), LAN cable, mounting bracket, hardware manual, Uplink video camera quick install guide
