1-877-443-6276

6152V - Honeywell Talking Voice Fixed-English Hardwired Alarm Keypad

6152V - Honeywell Talking Voice Fixed-English Hardwired Alarm Keypad
6152V - Honeywell Talking Voice Fixed-English Hardwired Alarm Keypad
Item# 6152V

Please Note: The Honeywell 6152V talking fixed-english keypad has been discontinued and replaced the 6160V model number.

Honeywell 6152V Product Description:

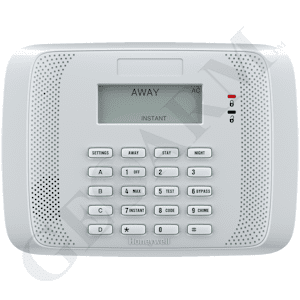

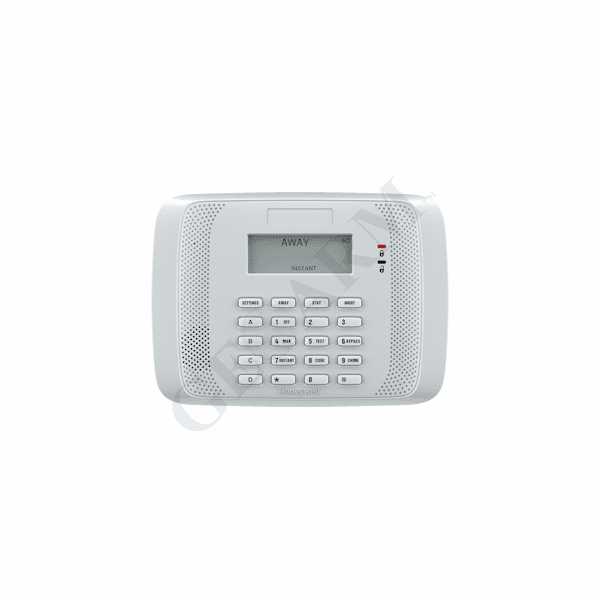

The Honeywell 6152V is a deluxe fixed-english talking alarm keypad is easy to install and simple to use. The attractive white console blends perfectly with any décor and features illuminated icon indicators. The 6152V hardwired alarm keypad also features a large backlit fixed glass display that uses three-digit zone numbers. The function keys are easily accessed and can be programmed for fire, burglary, personal emergencies or other operations.

The 6152V keypad will display "Night" when using this keypad on a panel that does Night-Stay arming. Single Button Arming can be done with the "Arm Away", "Arm Stay", and "Night Stay" buttons on the keypad. A valid user code must be programmed into the memory of the keypad to enable these buttons. It is recommended to use a dedicated code for this feature as only one code can be programmed. This code must exist as a valid user in the control panel before this feature will work. If a code is not programmed, a valid code will be required when an arming button is pressed.This keypad can be addressed from 00 to 31. NOTE: ECP data needs to active on the keypad in order to access the address. Upon an alarm event, the 6152V keypad provides Temporal 3 sound on Fire alarm and Temporal 4 sound on CO alarm.

Product Features:

  • Dimensions: 4.88"H x 6.93"W x 1.02"D
  • Operating Current: 22mA in standby, 30mA in alarm
  • Operating Temperature: 32°F - 122°F (0°C - 50°C)
  • Operating Voltage: 12Vdc from control panel
  • 3-Digit Display
  • Speaks system status and zone information
  • 5800 RF Zone Expansion
  • Backlit Display and Keys
  • Single Button Arming
  • System status displayed in fixed English
  • Temporal Pulse Sounding
  • Four programmable function keys
  • System functions clearly labeled
  • UL 2075 compatiblity (revision V102)
  • White with removable door, blends with any decor

Honeywell 6152V Product Compatibility:


• UKDB
• 4110XM
• FA130CPSIA
• FA130CP
• VISTA-15PCN
• VISTA-15P
• VISTA-15PSIA
• VISTA-20P
• VISTA-20PCN
• VISTA-20PSIA
• VISTA-21IP
• VISTA-21IPSIA
• VISTA-40
• VISTA-48LA
• VISTA-50P
• VISTA-10P
• VISTA-10PSIA
• VISTA-20PUL
• FA168CPS
• FA148CP
• FA148CPSIA
• FA168CPS-CN
• FA148CP-CN
• FA168CPSSIA
