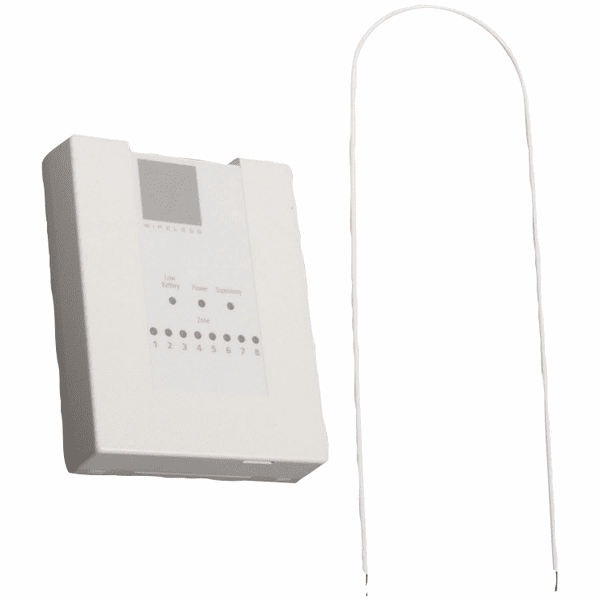

60-660-01-95R - GE Interlogix Quik Bridge Supervised 8-Channel Wireless Alarm Signal Receiver
Please Note: The Interlogix 60-660-01-95R Quik Bridge supervised 8-channel wireless receiver has been discontinued without replacement.
GE Interlogix 60-660-01-95R Product Description:
The GE Interlogix 60-660-01-95R Quik-Bridge 8-channel wireless alarm receiver allows you to use up to (16) GE learn mode (319.5 MHz) wireless sensors (2 per zone) with any standard hardwired alarm control panel. In addition, you can use up to (45) keyfobs and/or panic button transmitters, which makes for a total of (61) wireless security sensors.
The 60-660-01-95R Quik-Bridge wireless alarm receiver monitors the alarm, battery, tamper and supervisory status of all transmitters learned into the receiver's eight zones. While this is a GE wireless alarm receiver, it will actually work with any alarm control panel that supports a common-loop ground for one or more its alarm zones.
Product Features:
- Spatial-diversity receiver, which enhances reception
- (8) Programmable zone outputs (N/C or N/O)
- Selectable zone supervision (programmable)
- RF (radio frequency) jam detection on zone 7 (optional)
- Receiver cover/antenna tamper on zone 8 (optional)
- (8) Red zone LEDs, which indicate zone openings and closings
- (2) Yellow trouble LEDs, which indicate sensor low battery and supervision conditions
- Support for a piezo (used for RF testing only) which, when used, sounds the number of transmissions received from learned transmitters
- Compatibility with X-10 modules
- On-board EEPROM that stores sensor IDs and programming information in non-volatile memory, even if power is removed
