2GIG-TS1-E - 2GIG Wireless Secondary Touchscreen Alarm Keypad (for Any 2GIG Panel)

Please Note: The 2GIG-TS1-E wireless secondary touchscreen alarm keypad has been discontinued without replacement.

Description
Specifications
Documents
Requirements
Includes

2GIG-TS1-E Product Description:

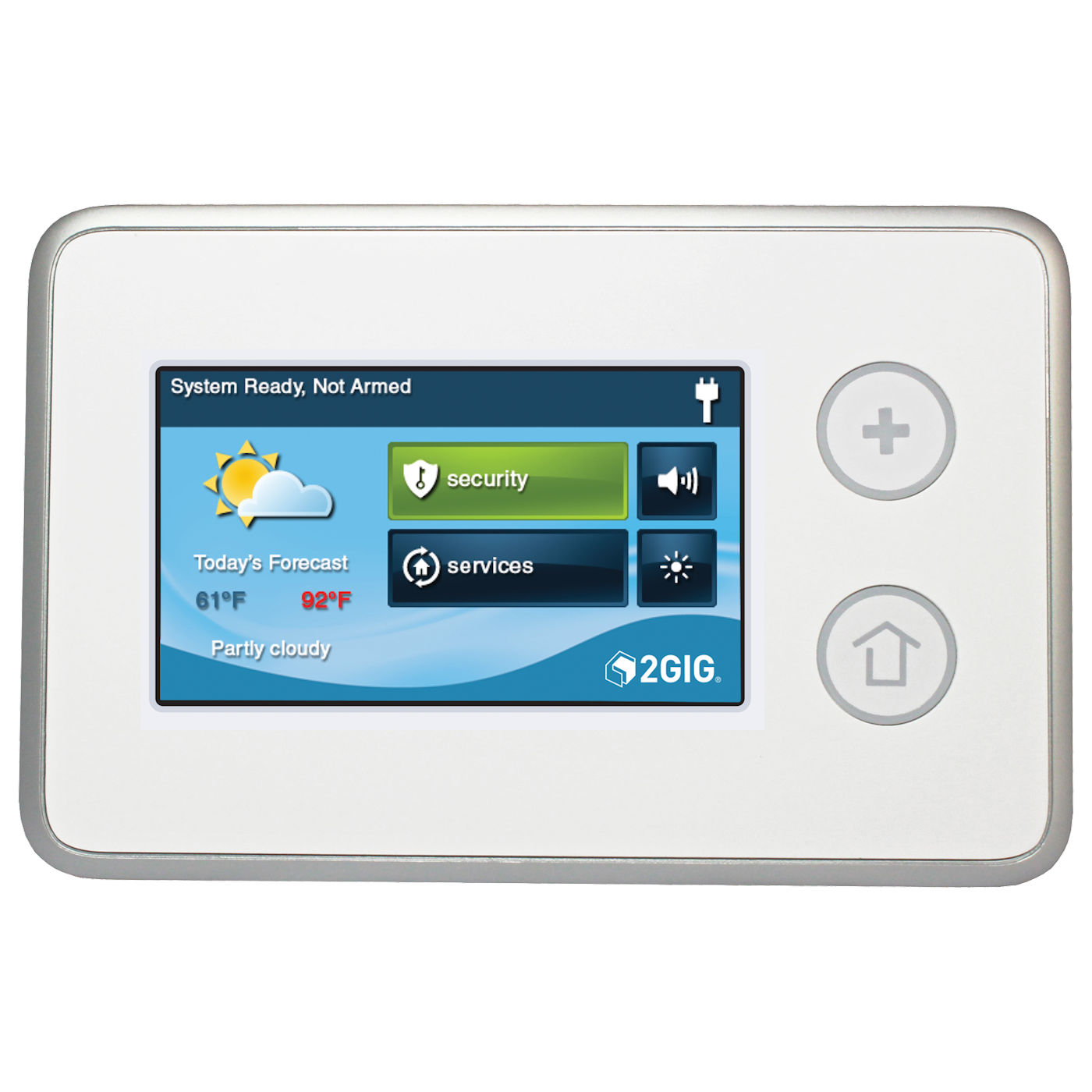

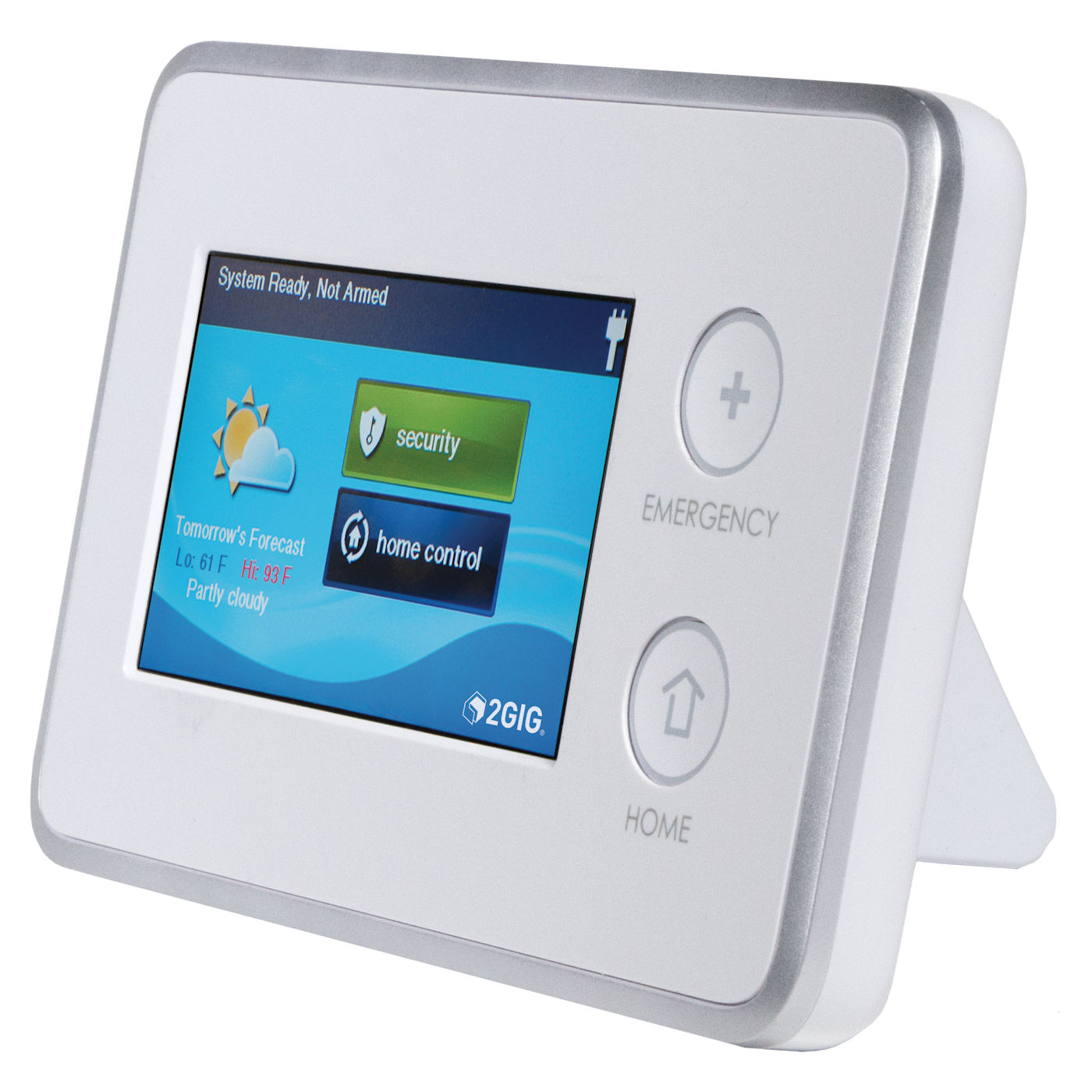

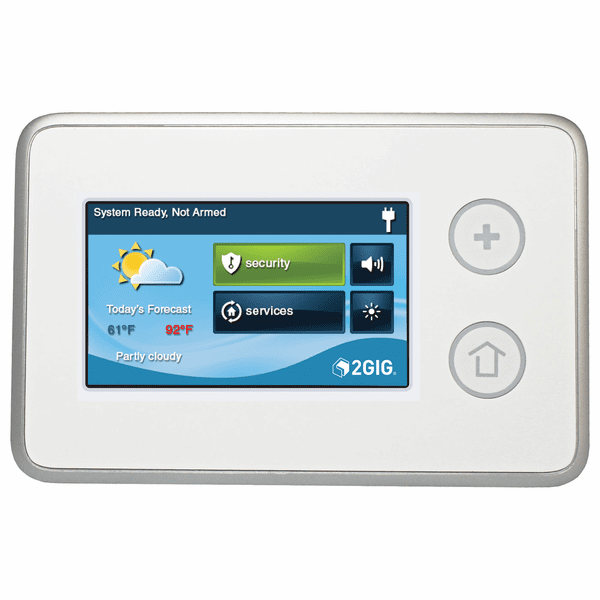

The 2GIG-TS1-E is a wireless touch screen keypad designed as an excellent addition to add to any 2GIG security system. The 2GIG-TS1-E is a wall-mounted, full-color, touch screen interface in English, that provides many of the same easy-to-use keypad functions available on the control panel. It is designed for indoor use only and gives users the ability to control lights, thermostats, and door locks, as well as to view the status of every sensor zone.

Also, this 2GIG-TS1-E keypad contains a one touch home and emergency navigation. The screen and buttons can be configured to darken completely and light back up with one touch. When the 900 MHz Transceiver Module (2GIG-XCVR2?345) is installed in the control panel, the system can be programmed to communicate with up to four (4) 2GIG-TS1-E wireless touch screen keypads.

Please note, wireless touch screen keypads marked with serial numbers greater than 1405XXXXXXXXXXXX also include a barrel connector power option (2GIG-AC2-PLUG or 2GIG-AC3-INT-PLG) that makes it easy to connect power to the keypad. These keypads also include a built-in, 90-degree, four (4)-pin header for use with the Firmware Update Cable (2GIG-PCBL2).

Product Features:

Full color touch screen interface
Same easy-to-use interface as the Go!Control panel
Add up to 4 Wireless Touch Screen Keypads to one system
See and hear system status, chimes and alerts
Easy access to Z-Wave functionality
See and hear system status, chimes and alerts
Screen and buttons can be configured to darken completely and light back up with one touch
Requires XCVR2 to be installed in main panel

2GIG-TS1-E Product Specifications:

Wireless Signal Range - 500 ft (152.4 m), open air, with Wireless Control Panel
Transceiver - Silicon Labs SI1001?E?GM2
Transceiver Frequency - 900 MHz frequency?hopping bi?directional communication
Radio - 25 channel frequency?hopping spread spectrum, 403 kHz channel spacing (910.2?920.275 MHz), GFSK modulation, 128 kbps, +19dBm maximum RF power out
Dimensions (L x W x H) - 4.3" x 6.7" x 0.8" (11 x 17 x 2 cm)
Weight (including battery) - 9.6 oz.
Housing Material - ABS Plastic
Color - White
Operating Temperature - 32°?120F° (0°?49°C)
Storage Temperature - 14°?140F° (-10°?60°C)
Relative Humidity - 5?95% Non?Condensing
Operating Voltage - 14VDC
Certification - FCC, Industry Canada, IFETEL, and NOM

2GIG-TS1-E Product Documents:

• Installation Guide for 2GIG-TS1-E Wireless Touchscreen Alarm Keypad (in English)
• Installation Guide for 2GIG-TS1-C Wireless Touchscreen Alarm Keypad (in French)
• Installation Guide for 2GIG-TS1-S Wireless Touchscreen Alarm Keypad (in Spanish)

2GIG-TS1-E Requirements & Tools:

Minimum Requirements:

A 900 MHz Transceiver Module (2GIG?XCVR2?345) must be installed in the control panel.
The Go!Control Panel must be running Version 1.10 or higher.
The TS1?E keypad must be running Version 1.10.

Recommended Tools:

#6 Insulated Spade Terminals
Ladder
Pencil
Screwdriver
Staple Gun
Wire (for details, see Determining the Wire Gauge and Maximum Length on page 2 of the installation guide)
Wire Stripper
