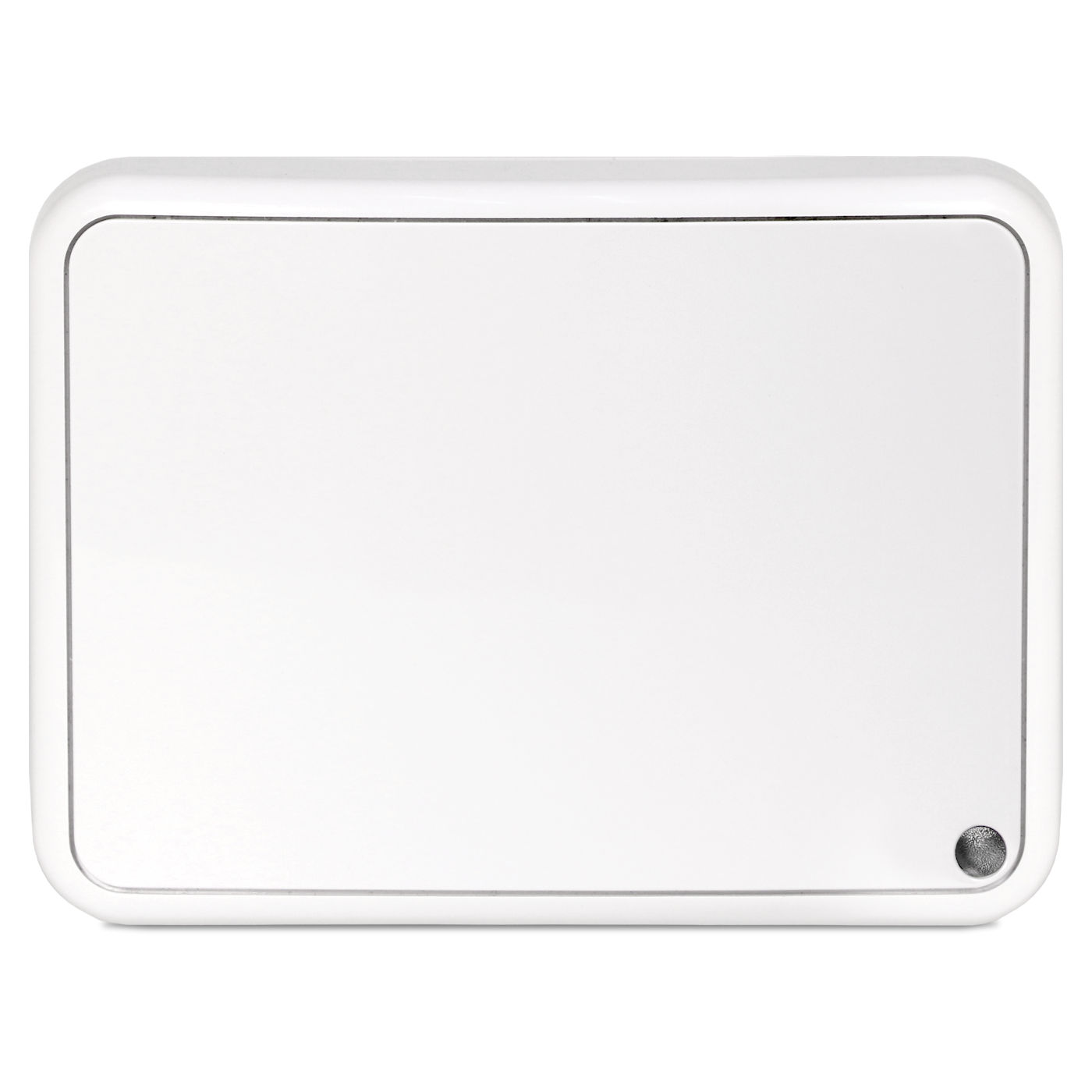

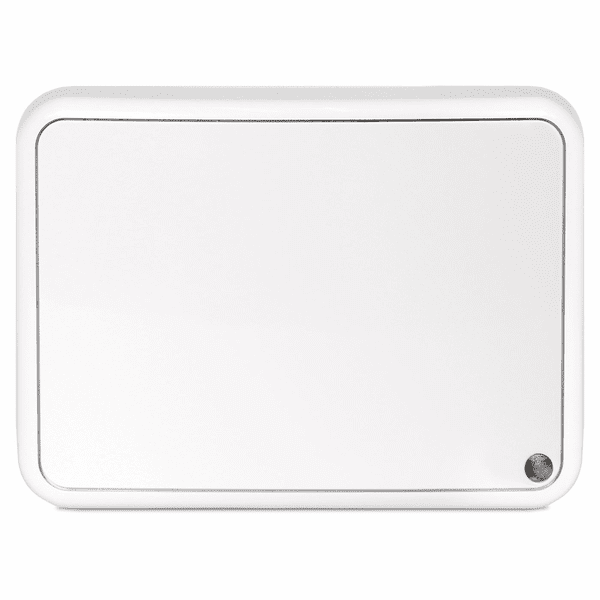

2GIG-RTPR1e-345 - 2GIG Wireless eSeries Alarm Repeater (for 345 MHz Frequency)
Please Note: The 2GIG-RTPR1e-345 wireless eSeries alarm repeater is an out of stock item.
2GIG-RPTR1e-345 Product Description:
The 2GIG-RPTR1-345 wireless eSeries encrypted indoor alarm repeater is designed to work with 2GIG security systems providing more flexibility in where wireless sensors can be installed. The 2GIG-RPTR1e-345 repeater can be installed in the optimal location to extend the range of 2GIG GC2 and 2GIG GC3 panels for larger jobs. The repeater is a plug and play device that will immediately start repeating signals when powered on.
The repeater is a peripheral device that communicates with the 2GIG panel using a proprietary 345 MHz transmission protocol. The 2GIGe repeater receives and recognizes messages from eSeries and other 345 MHz wireless devices, such as Honeywell 5800-Series sensors, that are unable to directly communicate with the system, and "repeats" those messages to extend the range of the devices. The repeater will typically be installed at the mid-point between the panel and the wireless devices being repeated. When a transmission from a device is repeated, the repeater adds a bit to the message to indicate to the system that the message is not coming directly from the device. The repeater will not repeat already repeated messages.
The repeater is powered by an AC adapter and is equipped with a rechargeable battery which supports 24 hours of battery back up under conditions of local power failure. When the power source for the repeater changes from AC power to battery backup, or from battery backup to AC power, the repeater will automatically send a message to the system within two (2) minutes. In addition, supervisory messages are sent approximately every 70 minutes that indicate the repeater status.
The repeater is equipped with a status indicator LED visible from the front of the unit, and a learn button is located on the side of the unit.
Product Features:
- Compatible with 2GIG's eSeries encrypted sensors
- Repeats 2GIG and Honeywell signals on 345MHz frequency
- 24-hour backup battery included
- Repeat indicator in the signal eliminates "repeated signal storm"
- Optional zone programming to supervise Tamper, AC Loss, and Low Battery
GC2: Requires FW v1.14 or newer.
GC3: Requires FWv3.1 or newer.
2GIG-RPTR1e-345 Product Specifications:
- Overall Size: 102 X 76 X 46 mm (4.0" X 3.0" X 1.8")
- Installation Type: Wall mounted
- Operating Frequency: eSeries and 345 MHz
- Operating Temperature Limits: ?10° C to 55° C (14° F to 131° F)
- Relative Humidity: 5 to 85% non?condensing
- Power Type: Remotely powered by AC adapter, with internal battery backup
- AC Adapter Nominal Input Voltage: 100-240 VAC 50/60 Hz
- AC Adapter Nominal Output Voltage: 14 VDC
- Maximum Power Consumption: 3 W
- Idle Current: 40mA
- Operating Current (repeating): 75 mA
- Storage Device Capacity: 800 mAh (1) 3.7V 800 mAh 14500 Type Li?ion battery (not to be replaced)
- Material: High-impact ABS plastic
- Color: White
- Weight (without battery): 125 g (4.4 oz.)
2GIG-RPTR1e-345 Product Documents:
• Data Sheet for 2GIG-RPTR1e-345 Wireless eSeries Alarm Repeater
• Installation/Operation Guide for 2GIG-RPTR1e-345 Wireless eSeries Alarm Repeater
2GIG-RPTR1e-345 Status Indications:
- Steady Green: The repeater is AC powered, and the backup battery is good
- Solid Red: Tamper or AC power failure
- Slow Flashing Red: Low battery
- Fast Flashing Red: Jammed
- Blink Off: Transmission received
2GIG-RPTR1e-345 Product Mounting:
- Mount Repeaters within 100 ft (30 m) of the Control Panel: Although the transmitter may have a range of 350 ft (106.7 m) in open air, the repeater location can have a significant effect on range. In open/unobstructed situations, the transmitter range may be greater. In adverse weather conditions, changing the repeater orientation may lead to improved range.
- Mount Repeaters as high as possible: Mounting the repeater high off the ground helps receiver sensitivity.
- Do Not Expose Repeaters to Moisture or Extreme Temperatures: It is best to mount repeaters in a dry location where the operating temperature does not exceed 32 to 120°F (0 to 49°C).
- Keep Repeaters Away from Metal/Metallic Surfaces: To keep the repeater away from metal or metallic surfaces (for example, foil wallpaper), it is recommended that you use spacers (not included). You should also avoid mounting sensors in areas where there is a large quantity of metal or electrical wiring (for example, near a furnace or in a utility room)
2GIG-RPTR1e-345 Product Includes:
- Rechargeable Lithium-Ion Battery
- AC Adapter
- Tamper Screw
- (4) Mounting Screws and Anchors
- Case Locking Screw
